EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

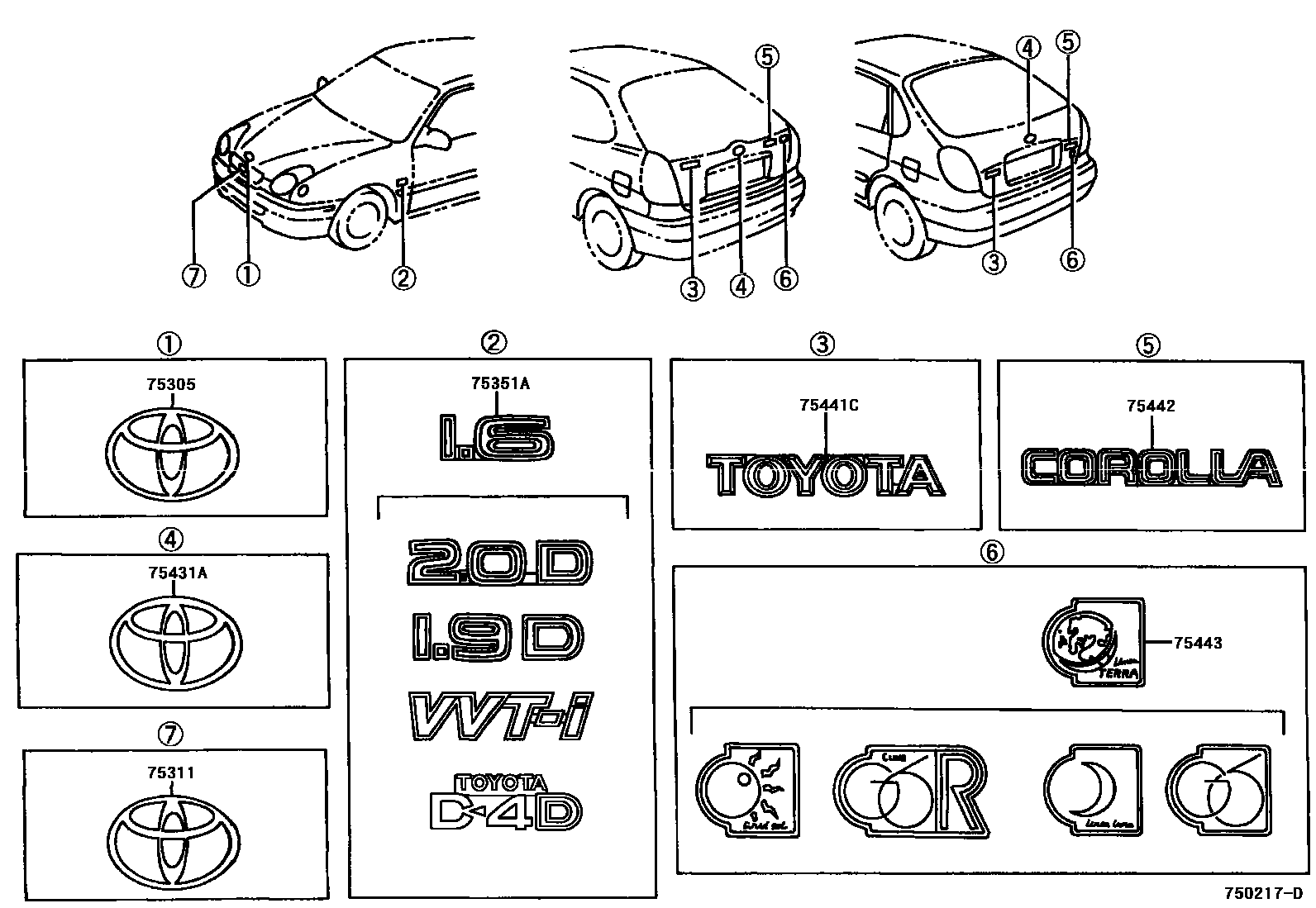

Parts diagram

75305EMBLEM, HOOD

main75331-02010i199809-199911

main75331-12100i199704-199910

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-02060i199911-200111

(L)

main75311-1E010i199910-200109

75351AEMBLEM, FRONT FENDER

main75351-02010×2i199809-200009

main75351-02030×2i199912-200111

(L)

main75351-02050i200009-200111

(L),RH

main75351-02060i200009-200111

(L),LH

main75351-12040×2i199910-200008

main75351-12050×2i199704-199910

main75351-12100i200008-200109

RH

main75351-12120×2i199912-200111

(J)

main75351-12130i200008-200109

RH

main75351-12140i200008-200109

LH

main75351-12150i200009-200111

(J),LH

75431AEMBLEM, BACK DOOR, NO.1

main75431-02010i199809-200111

main75431-12130i199910-200109

main75431-12140i199910-200107

75441CPLATE, BACK DOOR NAME

main75441-02030i199809-200111

TOYOTA

main75441-12650i199910-200109

TOYOTA

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-02030i199809-200111

COROLLA

main75442-1A400i199910-200107

COROLLA

main75442-1A410i199910-200109

COROLLA

75443PLATE, BACK DOOR NAME, NO.3

main75444-02030i199809-200111

TERRA

main75444-02040i199809-199911

LUNA

main75444-02050i199911-200111

G6

main75444-02060i199911-200111

LINEA SOL,(L)

main75444-1A540i199704-199910

TERRA

main75444-1A550i199704-199910

LUNA

main75444-1A560i199704-199910

G6

main75444-1A580i199809-199812

G6R,G6R SPEC

main75444-1A590i199910-200107

TERRA

main75444-1A600i199704-199910

LUNA

main75444-1A610i199704-199910

G6

main75444-1A640i199911-200111

LINEA SOL,(J)

main75444-1A650i199911-200111

LINEA SOL

main75444-1A670i199910-200107

LINEA SOL

7 parts on this diagram · 1 diagram in section
