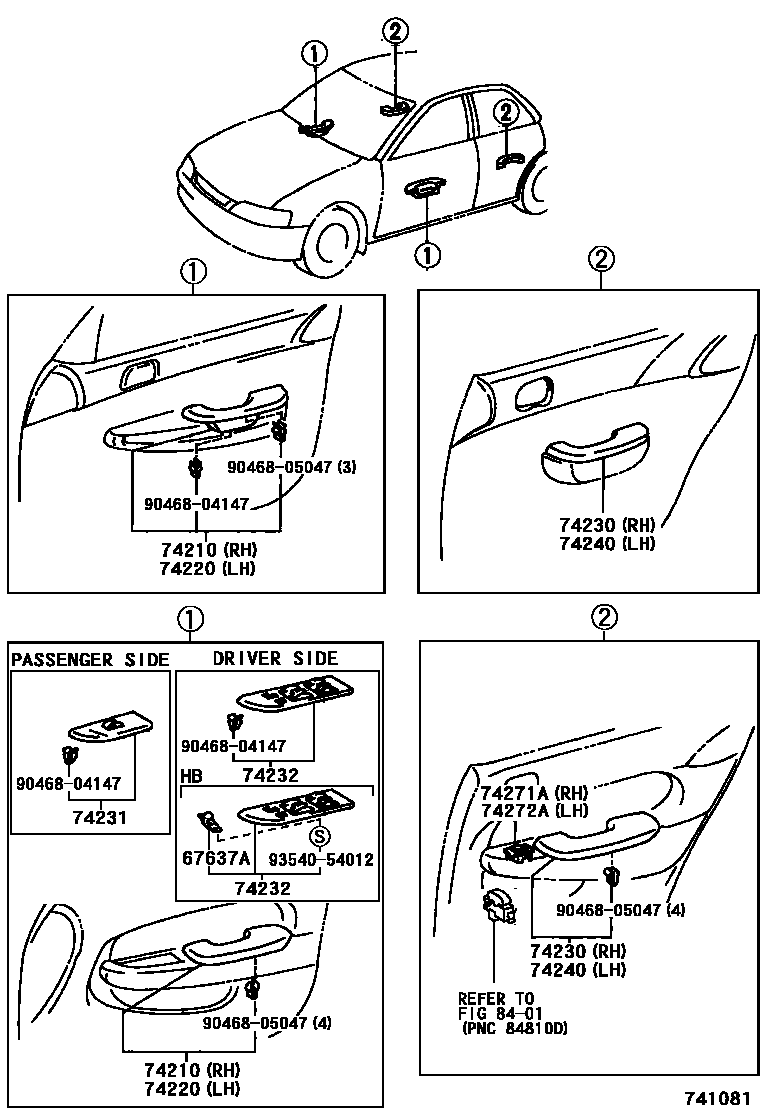

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

67637APLATE, FRONT DOOR TRIM

main67637-12030iAE111,CE110,EE111..HB..(G6,LUNA,TERRA)199704-200107

74210ARMREST ASSY, FRONT, RH

main74210-02090-A0iAE111,EE111..UKP199809-199911

W(POWER WINDOW),IVORY,TRIM0#

main74210-02090-B0iZZE112..6F..SOL199911-200111

W(POWER WINDOW),SHADOW GRAY,TRIM16

main74210-02090-B0iAE111,EE111..UKP199809-199911

W(POWER WINDOW),SHADOW GRAY,TRIM12

main74210-02090-B0iZZE112..6F..SOL199911-200111

SHADOW GRAY,TRIM1#

main74210-02090-B1iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

W(POWER WINDOW),MD.CHARCOAL,TRIM11

main74210-02090-B1iAE111,EE111..UKP199809-199911

W(POWER WINDOW),MD.CHARCOAL,TRIM10

main74210-02100-A0iAE111..UKP..LHD;EE111..UKP..TERRA;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA199809-199911

IVORY,TRIM0#

main74210-02100-B0iAE111..UKP..LHD;EE111..UKP..TERRA;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA199809-199911

SHADOW GRAY,TRIM12

main74210-02100-B0iWZE110,ZZE11#..UKP..TERRA199911-200111

SHADOW GRAY,TRIM16

main74210-02100-B1iAE111..UKP..LHD;EE111..UKP..TERRA;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA199809-199911

MD.CHARCOAL,TRIM10

main74210-02100-B1iWZE110,ZZE11#..UKP..TERRA199911-200111

MD.CHARCOAL,TRIM11

main74210-12180-A0iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199704-199910

W(POWER WINDOW = FRONT ONLY),IVORY,TRIM0#

main74210-12180-B0iEE111..LB..G6199704-199910

W(POWER WINDOW = FRONT ONLY),SHADOW GRAY,TRIM1#

main74210-12180-B0iZZE11#..JPP..LB;CDE110..LB..TERRA199910-200109

W(POWER WINDOW = FRONT ONLY),SHADOW GRAY,TRIM16

main74210-12180-B0iCDE110..LB..SOL200008-200109

SHADOW GRAY,TRIM16

main74210-12180-B0iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199808-199910

W(POWER WINDOW = FRONT ONLY),SHADOW GRAY,TRIM12

main74210-12180-B2iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199808-199910

W(POWER WINDOW = FRONT ONLY),MD.CHARCOAL,TRIM10

main74210-12180-B2iAE111,CE110,EE111..LB..(LUNA,TERRA)199704-199808

W(POWER WINDOW = FRONT ONLY),MD.CHARCOAL,TRIM1#

main74210-12180-B2iZZE11#..JPP..LB;CDE110..LB..TERRA199910-200109

W(POWER WINDOW = FRONT ONLY),MD.CHARCOAL,TRIM11

main74210-12180-B2iCDE110..LB..SOL200008-200109

MD.CHARCOAL,TRIM11

main74210-12230-A0iAE111,CE110,EE111..JPP..LB..TERRA;AE111,CE110,EE111..JPP..LHD..LB..LUNA199704-199910

W(MANUAL WINDOW),IVORY,TRIM0#

main74210-12230-B0iEE111..LHD..LB..G6199704-199910

W(MANUAL WINDOW),SHADOW GRAY,TRIM1#

main74210-12230-B0iCDE110,ZZE11#..JPP..LB..TERRA199910-200109

SHADOW GRAY,TRIM16

main74210-12230-B0iAE111,CE110,EE111..JPP..LB..TERRA;AE111,CE110,EE111..JPP..LHD..LB..LUNA199808-199910

W(MANUAL WINDOW),SHADOW GRAY,TRIM12

main74210-12230-B1iCDE110,ZZE11#..JPP..LB..TERRA199910-200109

MD.CHARCOAL,TRIM11

main74210-12230-B1iAE111,CE110,EE111..JPP..LB..TERRA;AE111,CE110,EE111..JPP..LHD..LB..LUNA199808-199910

W(MANUAL WINDOW),MD.CHARCOAL,TRIM10

main74210-12230-B1iAE111,CE110,EE111..LB..TERRA;AE111,CE110,EE111..LHD..LB..LUNA199704-199808

W(MANUAL WINDOW),MD.CHARCOAL,TRIM1#

74220ARMREST ASSY, FRONT, LH

main74220-02060-A0iAE111,EE111..UKP199809-199911

W(POWER WINDOW),IVORY,TRIM0#

main74220-02060-B0iAE111,EE111..UKP199809-199911

W(POWER WINDOW),SHADOW GRAY,TRIM12

main74220-02060-B0iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

SHADOW GRAY,TRIM1#

main74220-02060-B0iZZE112..6F..SOL199911-200111

W(POWER WINDOW),SHADOW GRAY,TRIM16

main74220-02060-B1iAE111,EE111..UKP199809-199911

W(POWER WINDOW),MD.CHARCOAL,TRIM10

main74220-02060-B1iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

W(POWER WINDOW),MD.CHARCOAL,TRIM11

main74220-02070-A0iAE111..UKP..LHD;EE111..UKP..TERRA;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA199809-199911

IVORY,TRIM0#

main74220-02070-B0iAE111..UKP..LHD;EE111..UKP..TERRA;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA199809-199911

SHADOW GRAY,TRIM12

main74220-02070-B0iWZE110,ZZE11#..UKP..TERRA199911-200111

SHADOW GRAY,TRIM16

main74220-02070-B1iWZE110,ZZE11#..UKP..TERRA199911-200111

MD.CHARCOAL,TRIM11

main74220-02070-B1iAE111..UKP..LHD;EE111..UKP..TERRA;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA199809-199911

MD.CHARCOAL,TRIM10

main74220-12160-A0iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199704-199910

W(POWER WINDOW = FRONT ONLY),IVORY,TRIM0#

main74220-12160-B0iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199808-199910

W(POWER WINDOW = FRONT ONLY),SHADOW GRAY,TRIM12

main74220-12160-B0iEE111..LB..G6199704-199910

W(POWER WINDOW = FRONT ONLY),SHADOW GRAY,TRIM1#

main74220-12160-B0iCDE110,ZZE11#..JPP..LB199910-200109

W(POWER WINDOW = FRONT ONLY),SHADOW GRAY,TRIM16

main74220-12160-B2iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199808-199910

W(POWER WINDOW = FRONT ONLY),MD.CHARCOAL,TRIM10

main74220-12160-B2iAE111,CE110,EE111..LB..(LUNA,TERRA)199704-199808

W(POWER WINDOW = FRONT ONLY),MD.CHARCOAL,TRIM1#

main74220-12160-B2iZZE11#..JPP..LB;CDE110..LB..TERRA199910-200109

W(POWER WINDOW = FRONT ONLY),MD.CHARCOAL,TRIM11

main74220-12160-B2iCDE110..LB..SOL200008-200109

MD.CHARCOAL,TRIM11

main74220-12170-A0iAE111,CE110,EE111..JPP..LB..TERRA;AE111,CE110,EE111..JPP..LHD..LB..LUNA199704-199910

W(MANUAL WINDOW),IVORY,TRIM0#

main74220-12170-B0iAE111,CE110,EE111..JPP..LB..TERRA;AE111,CE110,EE111..JPP..LHD..LB..(G6,LUNA)199808-199910

W(MANUAL WINDOW),SHADOW GRAY,TRIM12

main74220-12170-B0iCDE110,ZZE11#..JPP..LB..TERRA199910-200109

SHADOW GRAY,TRIM16

main74220-12170-B0iEE111..LHD..LB..G6199704-199910

W(MANUAL WINDOW),SHADOW GRAY,TRIM1#

main74220-12170-B1iCDE110,ZZE11#..JPP..LB..TERRA199910-200109

MD.CHARCOAL,TRIM11

main74220-12170-B1iAE111,CE110,EE111..JPP..LB..TERRA;AE111,CE110,EE111..JPP..LHD..LB..LUNA199704-199910

W(MANUAL WINDOW),MD.CHARCOAL,TRIM10

74230ARMREST ASSY, REAR, RH

main74210-02090-A0iAE111,EE111..UKP..LUNA199809-199911

W(POWER WINDOW),IVORY,TRIM0#

main74210-02090-B0iZZE112..6F..SOL199911-200111

SHADOW GRAY,TRIM1#

main74210-02090-B0iAE111,EE111..UKP..LUNA199809-199911

W(POWER WINDOW),SHADOW GRAY,TRIM12

main74210-02090-B0iWZE110,ZZE11#..UKP..(4FC,5F)..SOL199911-200111

SHADOW GRAY,TRIM16

main74210-02090-B1iAE111,EE111..UKP..LUNA199809-199911

W(POWER WINDOW),MD.CHARCOAL,TRIM10

main74210-02090-B1iWZE110,ZZE11#..UKP..(4FC,5F)..SOL199911-200111

MD.CHARCOAL,TRIM11

main74210-02100-A0iAE111,EE111..UKP199809-199911

IVORY,TRIM0#

main74210-02100-B0iAE111,EE111..UKP199809-199911

SHADOW GRAY,TRIM12

main74210-02100-B0iWZE110,ZZE11#..UKP..TERRA199911-200111

SHADOW GRAY,TRIM16

main74210-02100-B1iWZE110,ZZE11#..UKP..TERRA199911-200111

MD.CHARCOAL,TRIM11

main74210-02100-B1iAE111,EE111..UKP199809-199911

MD.CHARCOAL,TRIM10

main74210-12180-A0iAE111,CE110,EE111..JPP..LB..LUNA199704-199910

W(POWER WINDOW),IVORY,TRIM0#

main74210-12180-B0iAE111,CE110,EE111..JPP..LB..LUNA199808-199910

W(POWER WINDOW),SHADOW GRAY,TRIM12

main74210-12180-B0iCDE110,ZZE11#..JPP..LB..SOL199910-200109

SHADOW GRAY,TRIM16

main74210-12180-B2iAE111,CE110,EE111..LB..LUNA199704-199808

W(POWER WINDOW),MD.CHARCOAL,TRIM1#

main74210-12180-B2iAE111,CE110,EE111..JPP..LB..LUNA199808-199910

W(POWER WINDOW),MD.CHARCOAL,TRIM10

main74210-12180-B2iCDE110,ZZE11#..JPP..LB..SOL199910-200109

MD.CHARCOAL,TRIM11

main74210-12230-A0iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199704-199910

W(POWER WINDOW---FRONT ONLY),IVORY,TRIM0#

main74210-12230-B0iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199808-199910

W(MANUAL WINDOW),SHADOW GRAY,TRIM12

main74210-12230-B0iCDE110,ZZE11#..JPP..LB..TERRA199910-200109

SHADOW GRAY,TRIM16

main74210-12230-B0iEE111..LB..G6199704-199910

W(POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM1#

main74210-12230-B1iCDE110,ZZE11#..JPP..LB..TERRA199910-200109

MD.CHARCOAL,TRIM11

main74210-12230-B1iAE111,CE110,EE111..LB..(LUNA,TERRA)199704-199808

W(MANUAL WINDOW),MD.CHARCOAL,TRIM1#

main74210-12230-B1iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199808-199910

W(POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM10

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02030-A0iAE111,EE111..UKP..RHD..TERRA199809-199911

IVORY,TRIM0#

main74231-02030-B0iWZE110,ZZE11#..UKP..RHD..TERRA199911-200111

SHADOW GRAY,TRIM16

main74231-02030-B0iAE111,EE111..UKP..RHD199809-199911

W(POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM1#

main74231-02030-B1iAE111,EE111..UKP..RHD..TERRA199809-199911

MD.CHARCOAL,TRIM1#

main74231-02030-B1iWZE110,ZZE11#..UKP..RHD..TERRA199911-200111

MD.CHARCOAL,TRIM11

main74231-02040-A0iAE111,EE111..UKP..LHD..TERRA199809-199911

IVORY,TRIM0#

main74231-02040-B0iAE111,EE111..UKP..LHD199809-199901

SHADOW GRAY,TRIM12

main74231-02040-B0iZZE112..LHD..6F..SOL;AE111,EE111..UKP..LHD..TERRA199901-200111

SHADOW GRAY,TRIM1#

main74231-02040-B0iWZE110,ZZE11#..UKP..LHD..TERRA199911-200111

SHADOW GRAY,TRIM16

main74231-02040-B1iWZE110,ZZE11#..UKP..LHD..TERRA199911-200111

MD.CHARCOAL,TRIM11

main74231-02040-B1iAE111,EE111..UKP..LHD..TERRA199809-199911

MD.CHARCOAL,TRIM10

main74231-02070-B0iAE111,EE111..UKP..RHD..LUNA199809-199901

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main74231-02070-B0iZZE112..RHD..6F..SOL199911-200111

SHADOW GRAY,TRIM1#

main74231-02080-G0iAE111,EE111..UKP..RHD..LUNA199809-199911

WOOD GRAIN,W(POWER WINDOW---FRONT ONLY),GREEN,TRIM0#

main74231-02080-J0iAE111,EE111..UKP..RHD..LUNA199809-199911

WOOD GRAIN,W(POWER WINDOW---FRONT ONLY),BLUE,TRIM1#

main74231-02090-G0iAE111,EE111..UKP..RHD..LUNA199809-199911

WOOD GRAIN,W(POWER WINDOW),GREEN,TRIM0#

main74231-02090-J0iAE111,EE111..UKP..RHD..LUNA199809-199911

WOOD GRAIN,W(POWER WINDOW),BLUE,TRIM1#

main74231-02100-G0iAE111,EE111..UKP..LHD..LUNA199809-199911

WOOD GRAIN,GREEN,TRIM0#

main74231-02100-J0iAE111,EE111..UKP..LHD..LUNA199809-199911

WOOD GRAIN,BLUE,TRIM1#

main74231-02110-B0iWZE110,ZZE11#..UKP..RHD..(4FC,5F)..SOL199911-200111

SHADOW GRAY,TRIM11,16

main74231-02110-B0iAE111,EE111..UKP..RHD..LUNA199901-199911

W(POWER WINDOW---FRONT & REAR),SHADOW GRAY,TRIM12

main74231-02110-G0iAE111,EE111..UKP..RHD..LUNA199901-199911

W(POWER WINDOW---FRONT & REAR),GREEN,TRIM0#

main74231-02110-J0iAE111,EE111..UKP..RHD..LUNA199901-199911

W(POWER WINDOW---FRONT & REAR),BLUE,TRIM10

main74231-02120-B0iAE111,EE111..UKP..LHD..LUNA199901-199911

SHADOW GRAY,TRIM12

main74231-02120-B0iWZE110,ZZE11#..UKP..LHD..(4FC,5F)..SOL199911-200111

SHADOW GRAY,TRIM11,16

main74231-02120-G0iAE111,EE111..UKP..LHD..LUNA199901-199911

GREEN,TRIM0#

main74231-02120-J0iAE111,EE111..UKP..LHD..LUNA199901-199911

BLUE,TRIM10

main74231-02130-B0iAE111,EE111..UKP..RHD..LUNA199901-199911

W(POWER WINDOW---FRONT ONLY),LIGHT SILVER,TRIM12

main74231-02130-G0iAE111,EE111..UKP..RHD..LUNA199901-199911

W(POWER WINDOW---FRONT ONLY),GREEN,TRIM0#

main74231-02130-J0iAE111,EE111..UKP..RHD..LUNA199901-199911

W(POWER WINDOW---FRONT ONLY),BLUE,TRIM10

main74231-12240-B0iAE111,CE110,EE111..JPP..RHD..LB..LUNA199808-199901

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main74231-12250-A0iAE111,CE110,EE111..JPP..RHD..LB..TERRA199704-199910

IVORY,TRIM0#

main74231-12250-B0iCDE110,ZZE11#..JPP..RHD..LB..TERRA199910-200107

MD.CHARCOAL,TRIM11

main74231-12250-B0iAE111,CE110,EE111..RHD..LB..TERRA199704-199808

MD.CHARCOAL,TRIM1#

main74231-12250-B1iEE111..RHD..LB..G6199704-199910

SHADOW GRAY,TRIM1#

main74231-12250-B1iCDE110,ZZE11#..JPP..RHD..LB..TERRA199910-200107

SHADOW GRAY,TRIM16

main74231-12250-B1iAE111,CE110,EE111..JPP..RHD..LB..TERRA199808-199910

W(POWER WINDOW---FRONT & POWER DOOR LOCK),SHADOW GRAY,TRIM1#

main74231-12280-A0iAE111,CE110,EE111..JPP..LHD..LB..TERRA199704-199910

IVORY,TRIM0#

main74231-12280-B0iAE111,CE110,EE111..JPP..LHD..LB..TERRA199704-199910

MD.CHARCOAL,TRIM10

main74231-12280-B0iCDE110,ZZE11#..JPP..LHD..LB..TERRA199910-200109

MD.CHARCOAL,TRIM11

main74231-12280-B1iEE111..LHD..LB..G6199901-199910

SHADOW GRAY,TRIM1#

main74231-12280-B1iCDE110,ZZE11#..JPP..LHD..LB..TERRA199910-200109

SHADOW GRAY,TRIM16

main74231-12280-B1iAE111,CE110,EE111..JPP..LHD..LB..(G6,LUNA)199704-199901

SHADOW GRAY,TRIM12

main74231-12280-B1iAE111,CE110,EE111..JPP..LHD..LB..TERRA199808-199910

W(POWER WINDOW),SHADOW GRAY,TRIM12

main74231-12290-A0iAE111,CE110,EE111..RHD..HB..TERRA199704-199910

IVORY,TRIM0#

main74231-12290-B0iAE111,CE110,EE111..RHD..HB..TERRA199704-199910

MD.CHARCOAL,TRIM10

main74231-12290-B0iCDE110,WZE110,ZZE11#..RHD..HB..TERRA199910-200107

MD.CHARCOAL,TRIM11

main74231-12290-B1iCDE110,WZE110,ZZE11#..RHD..HB..TERRA199910-200107

SHADOW GRAY,TRIM16

main74231-12290-B1iCDE110,WZE110,ZZE11#..RHD..HB..TERRA199704-200107

SHADOW GRAY,TRIM1#

main74231-12290-B1iAE111,EE111..RHD..HB..5F..TERRA199804-199901

SHADOW GRAY,TRIM12

main74231-12300-A0iAE111,CE110,EE111..LHD..HB..TERRA199704-199910

IVORY,TRIM0#

main74231-12300-B0iCDE110,WZE110,ZZE11#..LHD..HB..TERRA199910-200107

MD.CHARCOAL,TRIM11

main74231-12300-B0iAE111,CE110,EE111..LHD..HB..TERRA199704-199910

MD.CHARCOAL,TRIM10

main74231-12300-B1iEE111..LHD..HB..G6199704-200107

SHADOW GRAY,TRIM1#

main74231-12300-B1iCDE110,WZE110,ZZE11#..LHD..HB..TERRA199910-200107

SHADOW GRAY,TRIM16

main74231-12300-B1iAE111,EE111..LHD..HB..5F..TERRA199804-199901

SHADOW GRAY,TRIM12

main74231-12320-B0iAE111,CE110,EE111..RHD..HB..LUNA199704-199808

GRAY,TRIM0#

main74231-12320-G0iEE111..RHD..HB..LUNA199808-199910

WOOD GRAIN,GREEN,TRIM0#

main74231-12320-J0iAE111,CE110,EE111..RHD..HB..LUNA199704-199910

WOOD GRAIN,BLUE,TRIM1#

main74231-12330-B0iAE111,CE110,EE111..LHD..HB..LUNA199704-199808

GRAY,TRIM0#

main74231-12330-G0iAE111,CE110,EE111..LHD..HB..LUNA199808-199910

WOOD GRAIN,GREEN,TRIM0#

main74231-12330-J0iAE111,CE110,EE111..LHD..HB..LUNA199704-199910

WOOD GRAIN,BLUE,TRIM1#

main74231-12340-B0iAE111,CE110,EE111..RHD..LB..LUNA199704-199808

W(POWER WINDOW---FRONT ONLY),GRAY,TRIM0#

main74231-12340-G0iAE111,CE110,EE111..JPP..RHD..LB..LUNA199808-199910

W(POWER WINDOW---FRONT ONLY),GREEN,TRIM0#

main74231-12340-J0iAE111,CE110,EE111..JPP..RHD..LB..LUNA199704-199910

W(POWER WINDOW---FRONT ONLY),BLUE,TRIM1#

main74231-12350-B0iAE111,CE110,EE111..RHD..LB..LUNA199704-199808

W(POWER WINDOW),GRAY,TRIM0#

main74231-12350-G0iAE111,CE110,EE111..JPP..RHD..LB..LUNA199808-199910

WOOD GRAIN,W(POWER WINDOW),GREEN,TRIM0#

main74231-12350-J0iAE111,CE110,EE111..JPP..RHD..LB..LUNA199704-199910

WOOD GRAIN,W(POWER WINDOW),BLUE,TRIM1#

main74231-12360-B0iAE111,CE110,EE111..LHD..LB..LUNA199704-199808

GRAY,TRIM0#

main74231-12360-G0iAE111,CE110,EE111..JPP..LHD..LB..LUNA199808-199910

WOOD GRAIN,GREEN,TRIM0#

main74231-12360-J0iAE111,CE110,EE111..JPP..LHD..LB..LUNA199704-199910

WOOD GRAIN,BLUE,TRIM10

main74231-12380-B0iEE111..RHD..HB..LUNA199901-199910

LIGHT SILVER,TRIM12

main74231-12380-G0iEE111..RHD..HB..LUNA199901-199910

GREEN,TRIM0#

main74231-12380-J0iEE111..RHD..HB..LUNA199901-199910

BLUE,TRIM10

main74231-12390-B0iCDE110,WZE110,ZZE11#..HB..SOL199910-200107

LIGHT SILVER,TRIM11,16

main74231-12390-B0iAE111,CE110,EE111..LHD..HB..LUNA199901-199910

LIGHT SILVER,TRIM12

main74231-12390-G0iAE111,CE110,EE111..LHD..HB..LUNA199901-199910

GREEN,TRIM0#

main74231-12390-J0iAE111,CE110,EE111..LHD..HB..LUNA199901-199910

BLUE,TRIM10

main74231-12400-B0iAE111,CE110,EE111..JPP..LHD..LB..LUNA199901-199910

LIGHT SILVER,TRIM1#

main74231-12400-B0iCDE110,ZZE11#..JPP..LHD..LB..SOL199910-200109

LIGHT SILVER,TRIM11,16

main74231-12410-B0iCDE110,ZZE11#..JPP..RHD..SOL199910-200107

LIGHT SILVER,TRIM11,16

main74231-12410-B0iAE111,CE110,EE111..JPP..RHD..LB..LUNA199901-199910

W(POWER WINDOW),LIGHT SILVER,TRIM1#

main74231-12420-B0iAE111,CE110,EE111..JPP..RHD..LB..LUNA199901-199910

LIGHT SILVER,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02030-A0iAE111,EE111..UKP..RHD..TERRA199809-199911

IVORY,TRIM0#

main74232-02030-B0iWZE110,ZZE11#..UKP..RHD..TERRA199911-200111

SHADOW GRAY,TRIM16

main74232-02030-B0iZZE112..RHD..6F..SOL;AE111,EE111..UKP..RHD..TERRA199901-200111

SHADOW GRAY,TRIM1#

main74232-02030-B0iAE111,EE111..UKP..RHD199809-199901

SHADOW GRAY,TRIM12

main74232-02030-B1iAE111,EE111..UKP..RHD..TERRA199809-199911

MD.CHARCOAL,TRIM10

main74232-02030-B1iWZE110,ZZE11#..UKP..RHD..TERRA199911-200111

MD.CHARCOAL,TRIM11

main74232-02040-A0iAE111,EE111..UKP..LHD..TERRA199809-199911

IVORY,TRIM0#

main74232-02040-B0iAE111,EE111..UKP..LHD199809-199911

W(POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM1#

main74232-02040-B0iWZE110,ZZE11#..UKP..LHD..TERRA199911-200111

SHADOW GRAY,TRIM16

main74232-02040-B1iAE111,EE111..UKP..LHD..TERRA199809-199911

MD.CHARCOAL,TRIM1#

main74232-02040-B1iWZE110,ZZE11#..UKP..LHD..TERRA199911-200111

MD.CHARCOAL,TRIM11

main74232-02070-B0iAE111,EE111..UKP..LHD..LUNA199809-199901

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main74232-02070-B0iZZE112..LHD..6F..SOL199911-200111

SHADOW GRAY,TRIM1#

main74232-02080-G0iAE111,EE111..UKP..RHD..LUNA199809-199911

WOOD GRAIN,GREEN,TRIM0#

main74232-02080-J0iAE111,EE111..UKP..RHD..LUNA199809-199911

WOOD GRAIN,BLUE,TRIM1#

main74232-02090-G0iAE111,EE111..UKP..LHD..LUNA199809-199911

WOOD GRAIN,W(POWER WINDOW---FRONT ONLY),GREEN,TRIM0#

main74232-02090-J0iAE111,EE111..UKP..LHD..LUNA199809-199911

WOOD GRAIN,W(POWER WINDOW---FRONT ONLY),BLUE,TRIM1#

main74232-02100-G0iAE111,EE111..UKP..LHD..LUNA199809-199911

WOOD GRAIN,W(POWER WINDOW),GREEN,TRIM0#

main74232-02100-J0iAE111,EE111..UKP..LHD..LUNA199809-199911

WOOD GRAIN,W(POWER WINDOW),BLUE,TRIM1#

main74232-02110-B0iAE111,EE111..UKP..RHD..LUNA199901-199911

SHADOW GRAY,TRIM12

main74232-02110-B0iWZE110,ZZE11#..UKP..RHD..(4FC,5F)..SOL199911-200111

SHADOW GRAY,TRIM11,16

main74232-02110-G0iAE111,EE111..UKP..RHD..LUNA199901-199911

GREEN,TRIM0#

main74232-02110-J0iAE111,EE111..UKP..RHD..LUNA199901-199911

BLUE,TRIM10

main74232-02120-B0iAE111,EE111..UKP..LHD..LUNA199901-199911

W(POWER WINDOW---FRONT & REAR),SHADOW GRAY,TRIM12

main74232-02120-B0iWZE110,ZZE11#..UKP..LHD..(4FC,5F)..SOL199911-200111

SHADOW GRAY,TRIM11,16

main74232-02120-G0iAE111,EE111..UKP..LHD..LUNA199901-199911

W(POWER WINDOW---FRONT & REAR),GREEN,TRIM0#

main74232-02120-J0iAE111,EE111..UKP..LHD..LUNA199901-199911

W(POWER WINDOW---FRONT & REAR),BLUE,TRIM10

main74232-02130-B0iAE111,EE111..UKP..LHD..LUNA199901-199911

W(POWER WINDOW---FRONT ONLY),LIGHT SILVER,TRIM12

main74232-02130-G0iAE111,EE111..UKP..LHD..LUNA199901-199911

W(POWER WINDOW---FRONT ONLY),GREEN,TRIM0#

main74232-02130-J0iAE111,EE111..UKP..LHD..LUNA199901-199911

W(POWER WINDOW---FRONT ONLY),BLUE,TRIM10

main74232-12120-A0iAE111,CE110,EE111..JPP..RHD..LB..TERRA199704-199910

IVORY,TRIM0#

main74232-12120-B0iEE111..RHD..LB..G6199704-199910

SHADOW GRAY,TRIM1#

main74232-12120-B0iAE111,CE110,EE111..JPP..RHD..LB..LUNA199808-199901

W(POWER WINDOW---FRONT & POWER DOOR LOCK),SHADOW GRAY,TRIM1#

main74232-12120-B0iAE111,CE110,EE111..JPP..RHD..LB..TERRA199808-199910

SHADOW GRAY,TRIM12

main74232-12120-B0iCDE110,ZZE11#..JPP..RHD..LB..TERRA199910-200107

SHADOW GRAY,TRIM16

main74232-12120-B2iCDE110,ZZE11#..JPP..RHD..LB..TERRA199910-200107

MD.CHARCOAL,TRIM11

main74232-12120-B2iAE111,CE110,EE111..RHD..LB..TERRA199704-199808

MD.CHARCOAL,TRIM1#

main74232-12120-B2iAE111,CE110,EE111..JPP..RHD..LB..TERRA199808-199910

MD.CHARCOAL,TRIM10

main74232-12190-A0iAE111,CE110,EE111..JPP..LHD..LB..TERRA199704-199910

IVORY,TRIM0#

main74232-12190-B0iAE111,CE110,EE111..JPP..LHD..LB..TERRA199808-199910

W(POWER WINDOW---FRONT & POWER DOOR LOCK),MD.CHARCOAL,TRIM10

main74232-12190-B0iCDE110,ZZE11#..JPP..LHD..LB..TERRA199910-200109

MD.CHARCOAL,TRIM11

main74232-12190-B0iAE111,CE110,EE111..JPP..LHD..LB..(G6,LUNA)199704-199901

MD.CHARCOAL,TRIM10

main74232-12190-B1iCDE110,ZZE11#..JPP..LHD..LB..TERRA199910-200109

SHADOW GRAY,TRIM16

main74232-12190-B1iEE111..LHD..LB..G6199704-199910

SHADOW GRAY,TRIM12

main74232-12190-B1iAE111,CE110,EE111..JPP..LHD..LB..TERRA199808-199910

W(POWER WINDOW---FRONT & POWER DOOR LOCK),SHADOW GRAY,TRIM12

main74232-12200-B0iAE111,CE110,EE111..JPP..LHD..LB..LUNA199808-199901

W(POWER WINDOW),MD.CHARCOAL,TRIM1#

main74232-12200-B2iAE111,CE110,EE111..JPP..LHD..LB..LUNA199808-199901

W(POWER WINDOW),SHADOW GRAY,TRIM12

main74232-12220-A0iAE111,CE110,EE111..RHD..HB..TERRA199704-199910

IVORY,TRIM0#

main74232-12220-B0iCDE110,WZE110,ZZE11#..RHD..HB..TERRA199910-200107

MD.CHARCOAL,TRIM11

main74232-12220-B0iAE111,CE110,EE111..RHD..HB..TERRA199704-199910

MD.CHARCOAL,TRIM10

main74232-12220-B1iZZE11#..RHD..G6199910-200107

SHADOW GRAY,TRIM16

main74232-12220-B1iCDE110,WZE110,ZZE11#..RHD..HB..TERRA199704-200107

SHADOW GRAY,TRIM1#

main74232-12220-B1iAE111,EE111..RHD..HB..5F..TERRA199804-199901

SHADOW GRAY,TRIM12

main74232-12230-A0iAE111,CE110,EE111..LHD..HB..TERRA199704-199910

IVORY,TRIM0#

main74232-12230-B0iAE111,CE110,EE111..LHD..HB..TERRA199704-199910

MD.CHARCOAL,TRIM10

main74232-12230-B0iCDE110,WZE110,ZZE11#..LHD..HB..TERRA199910-200107

MD.CHARCOAL,TRIM11

main74232-12230-B1iAE111,CE110,EE111..LHD..HB..(G6,TERRA)199704-200107

SHADOW GRAY,TRIM1#

main74232-12230-B1iAE111,EE111..LHD..HB..5F..TERRA199804-199901

SHADOW GRAY,TRIM12

main74232-12230-B1iZZE11#..LHD..G6199910-200107

SHADOW GRAY,TRIM16

main74232-12240-B0iAE111,CE110,EE111..RHD..HB..LUNA199704-199808

GRAY,TRIM0#

main74232-12240-G0iEE111..RHD..HB..LUNA199808-199910

WOOD GRAIN,GREEN,TRIM0#

main74232-12240-J0iAE111,CE110,EE111..RHD..HB..LUNA199704-199910

WOOD GRAIN,BLUE,TRIM1#

main74232-12250-B0iAE111,CE110,EE111..LHD..HB..LUNA199704-199808

GRAY,TRIM0#

main74232-12250-G0iAE111,CE110,EE111..LHD..HB..LUNA199808-199910

WOOD GRAIN,GREEN,TRIM0#

main74232-12250-J0iAE111,CE110,EE111..LHD..HB..LUNA199704-199910

WOOD GRAIN,BLUE,TRIM1#

main74232-12260-B0iAE111,CE110,EE111..RHD..LB..LUNA199704-199808

GRAY,TRIM0#

main74232-12260-G0iAE111,CE110,EE111..JPP..RHD..LB..LUNA199808-199910

WOOD GRAIN,GREEN,TRIM0#

main74232-12260-J0iAE111,CE110,EE111..JPP..RHD..LB..LUNA199704-199910

WOOD GRAIN,BLUE,TRIM1#

main74232-12270-B0iAE111,CE110,EE111..LHD..LB..LUNA199704-199808

WOOD GRAIN,W(POWER WINDOW---FRONT ONLY),GRAY,TRIM0#

main74232-12270-G0iAE111,CE110,EE111..JPP..LHD..LB..LUNA199808-199910

WOOD GRAIN,W(POWER WINDOW---FRONT ONLY),GREEN,TRIM0#

main74232-12270-J0iAE111,CE110,EE111..JPP..LHD..LB..LUNA199704-199910

WOOD GRAIN,W(POWER WINDOW---FRONT ONLY),BLUE,TRIM1#

main74232-12280-B0iAE111,CE110,EE111..LHD..LB..LUNA199704-199808

W(POWER WINDOW),GRAY,TRIM0#

main74232-12280-G0iAE111,CE110,EE111..JPP..LHD..LB..LUNA199808-199910

WOOD GRAIN,GREEN,TRIM0#

main74232-12280-J0iAE111,CE110,EE111..JPP..LHD..LB..LUNA199704-199910

WOOD GRAIN,W(POWER WINDOW),BLUE,TRIM1#

main74232-12290-B0iCDE110,WZE110,ZZE11#..HB..SOL199910-200107

LIGHT SILVER,TRIM11,16

main74232-12290-B0iAE111,CE110,EE111..LHD..HB..LUNA199901-199910

LIGHT SILVER,TRIM12

main74232-12290-G0iAE111,CE110,EE111..LHD..HB..LUNA199901-199910

GREEN,TRIM0#

main74232-12290-J0iAE111,CE110,EE111..LHD..HB..LUNA199901-199910

BLUE,TRIM10

main74232-12300-B0iEE111..RHD..HB..LUNA199901-199910

LIGHT SILVER,TRIM12

main74232-12300-G0iEE111..RHD..HB..LUNA199901-199910

GREEN,TRIM0#

main74232-12300-J0iEE111..RHD..HB..LUNA199901-199910

BLUE,TRIM10

main74232-12310-B0iCDE110,ZZE11#..JPP..LHD..LB..SOL199910-200109

LIGHT SILVER,TRIM11,16

main74232-12310-B0iAE111,CE110,EE111..JPP..LHD..LB..LUNA199901-199910

W(POWER WINDOW),LIGHT SILVER,TRIM1#

main74232-12320-B0iAE111,CE110,EE111..JPP..RHD..LB..LUNA199901-199910

LIGHT SILVER,TRIM1#

main74232-12320-B0iCDE110,ZZE11#..JPP..RHD..SOL199910-200107

LIGHT SILVER,TRIM11,16

main74232-12330-B0iAE111,CE110,EE111..JPP..LHD..LB..LUNA199901-199910

LIGHT SILVER,TRIM1#

74240ARMREST ASSY, REAR, LH

main74220-02060-A0iAE111,EE111..UKP..LUNA199809-199911

W(POWER WINDOW),IVORY,TRIM0#

main74220-02060-B0iZZE112..6F..SOL199911-200111

SHADOW GRAY,TRIM16

main74220-02060-B0iAE111,EE111..UKP..LUNA199809-199911

W(POWER WINDOW),SHADOW GRAY,TRIM12

main74220-02060-B0iWZE110,ZZE11#..UKP..(4FC,5F)..SOL199911-200111

SHADOW GRAY,TRIM1#

main74220-02060-B1iWZE110,ZZE11#..UKP..(4FC,5F)..SOL199911-200111

MD.CHARCOAL,TRIM11

main74220-02060-B1iAE111,EE111..UKP..LUNA199809-199911

W(POWER WINDOW),MD.CHARCOAL,TRIM10

main74220-02070-A0iAE111,EE111..UKP199809-199911

IVORY,TRIM0#

main74220-02070-B0iAE111,EE111..UKP199809-199911

SHADOW GRAY,TRIM12

main74220-02070-B0iWZE110,ZZE11#..UKP..TERRA199911-200111

SHADOW GRAY,TRIM16

main74220-02070-B1iWZE110,ZZE11#..UKP..TERRA199911-200111

MD.CHARCOAL,TRIM11

main74220-02070-B1iAE111,EE111..UKP199809-199911

MD.CHARCOAL,TRIM10

main74220-12160-A0iAE111,CE110,EE111..JPP..LB..LUNA199704-199910

W(POWER WINDOW),IVORY,TRIM0#

main74220-12160-B0iAE111,CE110,EE111..JPP..LB..LUNA199808-199910

W(POWER WINDOW),SHADOW GRAY,TRIM12

main74220-12160-B0iCDE110,ZZE11#..JPP..LB..SOL199910-200109

SHADOW GRAY,TRIM16

main74220-12160-B2iAE111,CE110,EE111..JPP..LB..LUNA199808-199910

W(POWER WINDOW),MD.CHARCOAL,TRIM10

main74220-12160-B2iCDE110,ZZE11#..JPP..LB..SOL199910-200109

MD.CHARCOAL,TRIM11

main74220-12160-B2iAE111,CE110,EE111..LB..LUNA199704-199808

W(POWER WINDOW),MD.CHARCOAL,TRIM1#

main74220-12170-A0iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199704-199910

W(POWER WINDOW---FRONT ONLY),IVORY,TRIM0#

main74220-12170-B0iEE111..LB..G6199704-199910

W(MANUAL WINDOW),SHADOW GRAY,TRIM1#

main74220-12170-B0iCDE110,ZZE11#..JPP..LB..TERRA199910-200109

SHADOW GRAY,TRIM16

main74220-12170-B0iAE111,CE110,EE111..JPP..LB199808-199910

W(MANUAL WINDOW),SHADOW GRAY,TRIM12

main74220-12170-B1iCDE110,ZZE11#..JPP..LB..TERRA199910-200109

MD.CHARCOAL,TRIM11

main74220-12170-B1iAE111,CE110,EE111..JPP..LB..(LUNA,TERRA)199704-199910

W(MANUAL WINDOW),MD.CHARCOAL,TRIM10

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main84656-12080-E1iAE111,CE110..RHD..LB..LUNA199704-199808

WOOD GRAIN,BROWN,TRIM1#

main84656-12080-E2iAE111,CE110..JPP..RHD..LUNA199808-199910

WOOD GRAIN,BROWN,TRIM1#

main84656-32020-A0iAE111,CE110,EE111..JPP..LB..LUNA199704-199910

IVORY,TRIM0#

main84656-32020-B0iAE111,CE110,EE111..JPP..LB..LUNA199808-199910

SHADOW GRAY,TRIM12

main84656-32020-B0iCDE110,ZZE11#..JPP..LB..SOL199910-200109

SHADOW GRAY,TRIM16

main84656-32020-B2iAE111,CE110,EE111..JPP..LB..LUNA199808-199910

MD.CHARCOAL,TRIM10

main84656-32020-B2iCDE110,ZZE11#..JPP..LB..SOL199910-200109

MD.CHARCOAL,TRIM11

main84656-32020-B2iEE111..LB..LUNA;AE111,CE110..LHD..LB..LUNA199704-199808

MD.CHARCOAL,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main84656-12080-E1iAE111,CE110..RHD..LB..LUNA199704-199808

WOOD GRAIN,BROWN,TRIM1#

main84656-12080-E2iAE111,CE110..JPP..RHD..LUNA199808-199910

WOOD GRAIN,BROWN,TRIM1#

main84656-32020-A0iEE111..LB..LUNA;AE111,CE110..LHD..LB..LUNA199704-199910

IVORY,TRIM0#

main84656-32020-B0iAE111,CE110,EE111..JPP..LB..LUNA199808-199910

SHADOW GRAY,TRIM12

main84656-32020-B0iCDE110,ZZE11#..JPP..LB..SOL199910-200109

SHADOW GRAY,TRIM16

main84656-32020-B2iEE111..LB..LUNA;AE111,CE110..LHD..LB..LUNA199704-199808

MD.CHARCOAL,TRIM1#

main84656-32020-B2iAE111,CE110,EE111..JPP..LB..LUNA199808-199910

MD.CHARCOAL,TRIM10

main84656-32020-B2iCDE110,ZZE11#..JPP..LB..SOL199910-200109

MD.CHARCOAL,TRIM11

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046804147

main90468-04147

9046805047

main90468-05047

9354054012

main93540-54012

13 parts on this diagram · 3 diagrams in section
