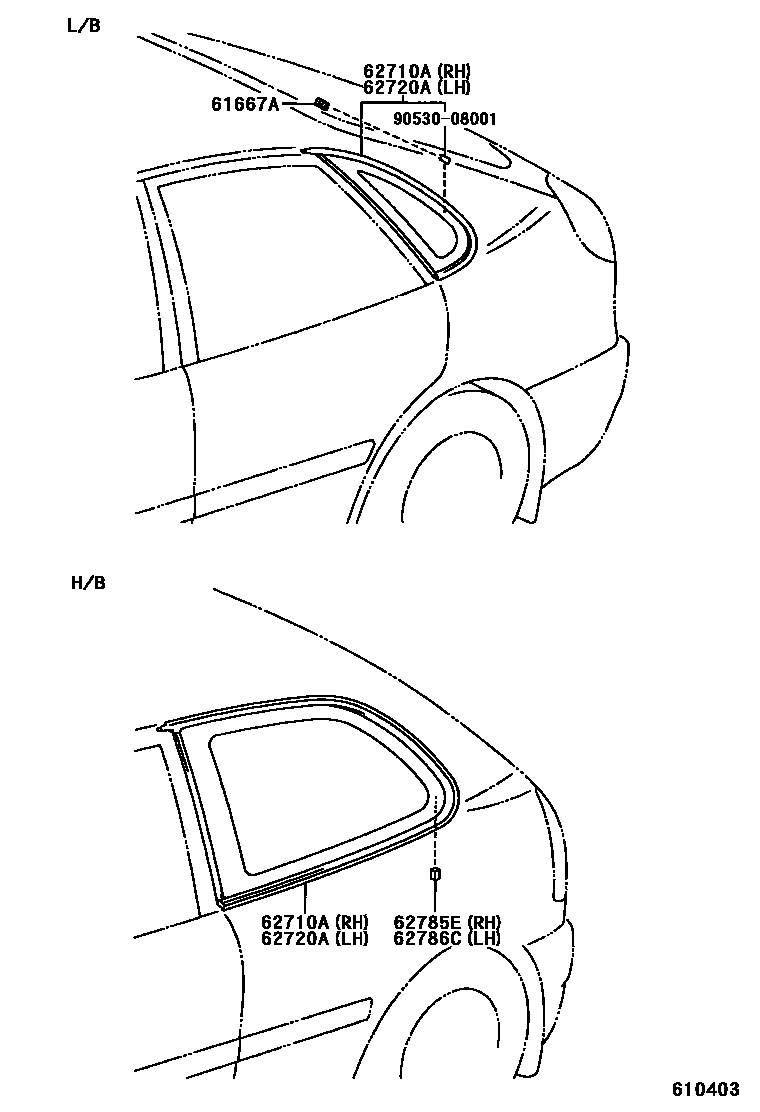

QUARTER WINDOW

61667ASPACER QUARTER PANEL, NO.1

main61667-14030×2iAE111,CE110,EE111..LB199704-199709

main62785-16030×2iCDE110,ZZE11#..LB;AE111,EE111,WZE110..UKP199809-200111

62710AWINDOW ASSY, QUARTER, RH

main62710-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

*TEM,T=3.5,GREEN

main62710-1A010iCDE110,ZZE11#..JPP..LB199910-200109

*TEM,T=3.5,GREEN

main62710-1A020iAE111,CE110,EE111..HB199704-199910

*TEM,T=3.5,GREEN

62720AWINDOW ASSY, QUARTER, LH

main62720-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

*TEM,T=3.5,GREEN

main62720-1A010iCDE110,ZZE11#..JPP..LB199910-200109

*TEM,T=3.5,GREEN

main62720-1A020iCDE110,WZE110,ZZE11#..HB199910-200107

*TEM,T=3.5,GREEN

62785ESPACER, QUARTER WINDOW GLASS, RH

main62785-16030×3iCDE110,WZE110,ZZE11#..HB199910-200107

62786CSPACER, QUARTER WINDOW GLASS, LH

main62785-16030×3iCDE110,WZE110,ZZE11#..HB199910-200107

9053008001

main90530-08001

6 parts on this diagram · 1 diagram in section
