MAT & CARPET

58460GSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-13010×4iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-02180-B2iWZE110,ZZE11#..UKP..RHD..(4FC,5F)199911-200111

SHADOW GRAY,TRIM16

main58510-02180-B3iAE111,EE111..UKP..RHD199809-199911

DARK CHARCOAL,TRIM0#,1#

main58510-02190-B2iWZE110,ZZE11#..UKP..LHD..5F199911-200111

SHADOW GRAY,TRIM16

main58510-02190-B3iWZE110,ZZE11#..UKP..LHD..5F199911-200111

DARK CHARCOAL,TRIM11

main58510-02200-B1iAE111..UKP..LHD..4FC199809-199911

DARK CHARCOAL,TRIM0#,1#

main58510-02200-B2iZZE112..UKP..LHD..4FC199911-200111

SHADOW GRAY,TRIM16

main58510-02210-B2iZZE112..LHD..6F..SOL;AE111,EE111..UKP..LHD..(3FC,5F)199809-200111

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-02210-B3iWZE110,ZZE11#..UKP..LHD..5F199911-200111

COLD SPEC,DARK CHARCOAL,TRIM11

main58510-02220-B1iZZE112..UKP..LHD..4FC199911-200111

COLD SPEC,DARK CHARCOAL,TRIM11

main58510-02220-B2iAE111..UKP..LHD..4FC199809-199911

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E550-B0iCDE110,ZZE11#..JPP..RHD..LB199910-200107

DARK CHARCOAL,TRIM11

main58510-1E550-B1iCDE110,ZZE11#..JPP..RHD..LB199910-200107

SHADOW GRAY,TRIM16

main58510-1E570-B0iCDE110,ZZE11#..JPP..LHD..LB..5F199910-200109

DARK CHARCOAL,TRIM11

main58510-1E570-B1iAE111,CE110,EE111..JPP..LHD..LB..(3FC,5F,6F)199808-199910

SHADOW GRAY,TRIM1#

main58510-1E580-B0iAE111..LHD..LB..4FC199704-199808

DARK CHARCOAL,TRIM0#,1#

main58510-1E580-B1iZZE112..JPP..LHD..LB..4FC199910-200109

SHADOW GRAY,TRIM16

main58510-1E720-B0iCDE110,ZZE11#..JPP..LHD..LB..5F199910-200109

COLD SPEC,DARK CHARCOAL,TRIM11

main58510-1E720-B1iAE111,CE110,EE111..JPP..LHD..LB..(3FC,5F,6F)199808-199910

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1E730-B0iZZE112..JPP..LHD..LB..4FC199910-200109

COLD SPEC,DARK CHARCOAL,TRIM11

main58510-1E730-B1iZZE112..JPP..LHD..LB..4FC199910-200109

COLD SPEC,SHADOW GRAY,TRIM16

main58510-1H040-B0iCDE110,WZE110,ZZE11#..RHD..HB..TERRA199910-200107

DARK CHARCOAL,TRIM11

main58510-1H040-B1iCDE110,WZE110,ZZE11#..RHD..HB..TERRA; ZZE11#..RHD..G6199910-200107

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16

main58510-1H050-B0iCDE110,WZE110,ZZE11#..LHD..HB..5F..(SOL,TERRA); ZZE111..STD199910-200107

DARK CHARCOAL,TRIM1#; DARK CHARCOAL,TRIM11

main58510-1H050-B1iCDE110,WZE110,ZZE11#..LHD..HB..5F..(SOL,TERRA); ZZE11#..LHD..G6199910-200107

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM16

main58510-1H060-B0iAE111..HB..4FC199704-199808

DARK CHARCOAL,TRIM0#,1#

main58510-1H060-B1iZZE112..LHD..HB..4FC199910-200107

SHADOW GRAY,TRIM16

main58510-1H070-B0iCE110,EE111..STD199704-199910

COLD SPEC,DARK CHARCOAL,TRIM1#

main58510-1H070-B1iAE111,EE111..LHD..HB..5F..TERRA199804-199807

G6 GRADE PACKAGE, COLD SPEC,SHADOW GRAY,TRIM12

main58510-1H080-B0iAE111..HB..4FC199704-199808

COLD SPEC,DARK CHARCOAL,TRIM0#,1#

main58510-1H080-B1iZZE112..LHD..HB..4FC199910-200107

COLD SPEC,SHADOW GRAY,TRIM16

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-09068-22iCDE110,WZE110,ZZE11#..(4FC,5F)..(SOL,TERRA); ZZE112..6F;ZZE111..G6,STD199910-200111

BLACK,TRIM1#; BLACK,TRIM11,16

58521BHOOK, FLOOR CARPET

main58521-02030×6iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main58521-12120×6iCDE110,WZE110,ZZE11#..JPP199910-200109

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09118×4iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90467-07042-B1iAE111,CE110,EE111..LUNA,TERRA; CE110,EE111..G6,STD199704-199808

SHADOW GRAY,TRIM0#,1#; SHADOW GRAY,TRIM10,12

main90467-07042-C0iAE111,EE111..HB..G6199808-199910

BLACK,TRIM11,16

58544ABRACKET, FLOOR CARPET, LH

main58544-12040iAE111,CE110,EE111..JPP..LHD199704-199910

main58544-13040iAE111,CE110,EE111..JPP..RHD199704-199910

58570BMAT ASSY, REAR FLOOR

main58570-02030-B0iWZE110,ZZE11#..UKP..(4FC,5F); ZZE112..6F..SOL199911-200111

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM11,16

main58570-12310-B0iAE111,CE110,EE111..LB..(LUNA,TERRA)199704-199808

SHADOW GRAY,TRIM0#,1#

main58570-12400-B0iAE111,EE111..HB..5F..TERRA199804-199807

G6 GRADE PACKAGE,SHADOW GRAY,TRIM12

main58570-12420-B0iCDE110,WZE110,ZZE11#..HB..(SOL,TERRA); ZZE11#..G6,STD199910-200107

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM11,16

58572CCLIP, REAR FLOOR MAT SET

main90467-05021-A1×4iAE111,CE110,EE111..LUNA,TERRA199704-199709

IVORY,TRIM0#

main90467-05021-B6×4iAE111,CE110,EE111199704-199709

MD.CHARCOAL,TRIM1#

main90467-05021-P0×4iAE111,CE110,EE111..LUNA,TERRA; CE110,EE111..G6,STD199704-199709

SHADOW GRAY,TRIM0#,1#; SHADOW GRAY,TRIM10

main90467-06048-B7×4iAE111,EE111..UKP199809-199911

SHADOW GRAY,TRIM0#,10,12

main90467-06048-P1×4iCDE110,WZE110,ZZE11#..JPP200008-200109

DK.GRAY,TRIM1#

58621HPAD, FRONT FLOOR SILENCER

main58621-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main58621-12100iAE111,CE110,EE111..JPP199704-199910

9015950322

main90159-50322

91655G0618

main91655-G0618

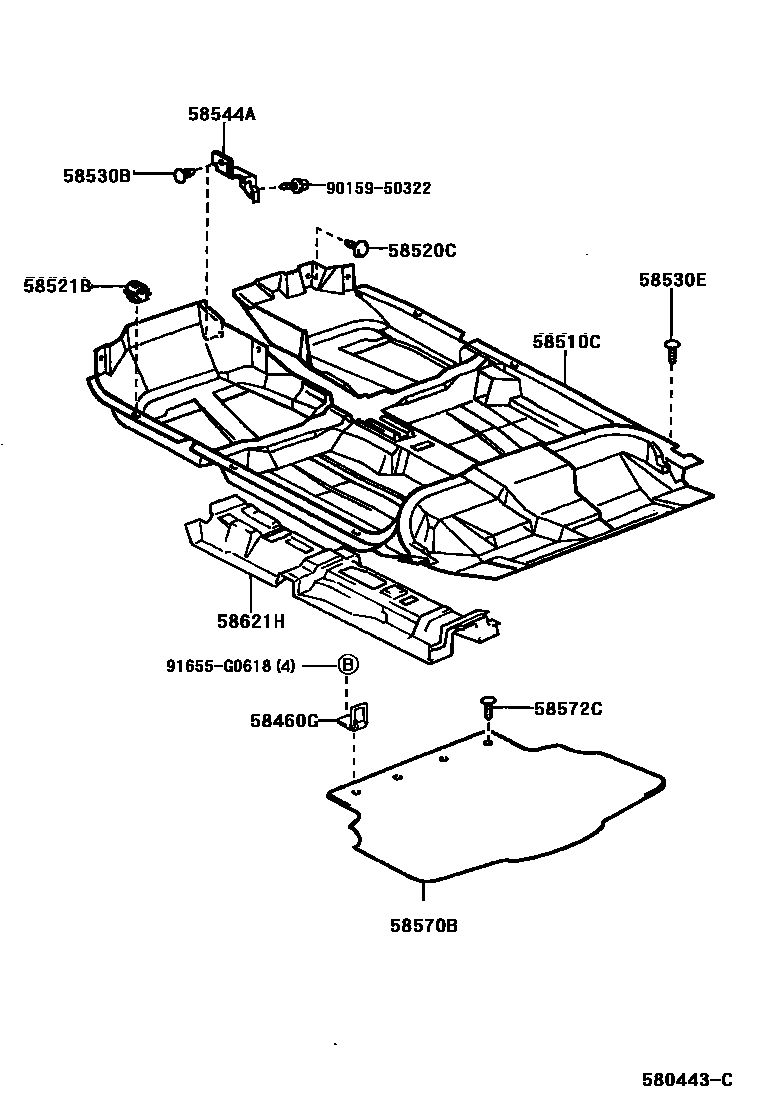

12 parts on this diagram · 1 diagram in section
