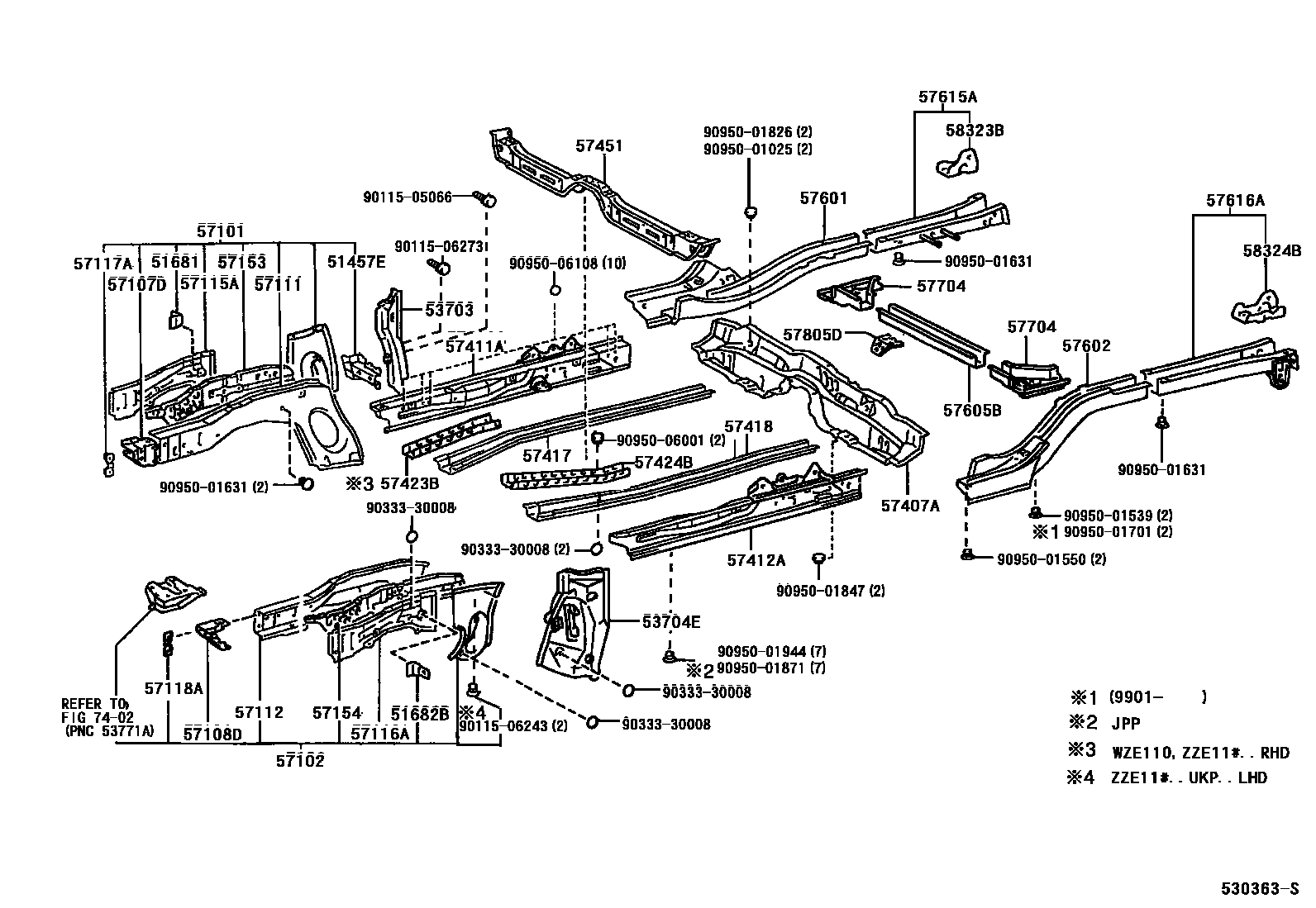

FLOOR SIDE MEMBER

51457EBRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBER

main51457-12020iAE111,CE110,EE111..LHD199704-199804

51681BRACKET, FLEXIBLE HOSE

main51681-12050iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

51682BBRACKET, FLEXIBLE HOSE, LH

main51682-12060iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA199804-199910

53703APRON SUB-ASSY, FRONT FENDER, REAR RH

main53703-02030iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main53703-02040iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main53703-12040iCDE110,WZE110,ZZE11#..JPP..LHD199910-200109

main53703-12060iAE111..JPP..RHD..LB;AE111..RHD..HB..(G6,TERRA);EE111..JPP..RHD..3FC..LUNA;CE110,EE111..JPP..RHD..(G6,TERRA);CE110,EE111..JPP..RHD..LB..5F..LUNA199804-199910

53704EAPRON SUB-ASSY, FRONT FENDER, REAR LH

main53704-02030iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main53704-02040iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main53704-12020iAE111,CE110,EE111..RHD199704-199804

main53704-12090iAE111,CE110,EE111..LHD199704-199804

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-02900iWZE110..LHD..LB;AE111,ZZE11#..UKP199809-200111

main57101-02901iEE111..UKP;WZE110..RHD..LB199809-200111

main57101-12930iZZE11#..JPP199910-200008

main57101-12931iCE110..TERRA;EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;CE110,EE111..LHD..HB..5F..LUNA199804-199910

main57101-1A900iCDE110,WZE110..JPP..RHD200008-200107

main57101-1A901iCDE110,WZE110..JPP..LHD200008-200109

main57101-1A906iZZE11#..JPP..RHD200008-200107

main57101-1A907iZZE11#..JPP..LHD200008-200109

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-02901iAE111,EE111,ZZE11#..UKP199809-200111

main57102-02902iWZE110..RHD..LB199912-200111

main57102-02903iWZE110..LHD..LB199912-200111

main57102-12939iAE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..LB..5F..LUNA;EE111..JPP..(G6,STD,TERRA);AE111,EE111..LHD..HB..(4FC,5F)..LUNA199804-199910

main57102-12940iCE110..TERRA;CE110..LB..LUNA;CE110..LHD..HB..LUNA199804-199910

main57102-1A900iCDE110,WZE110..JPP200008-200109

main57102-1A906iZZE11#..JPP200008-200109

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57125-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main57125-13010iCDE110,WZE110,ZZE11#..JPP199910-200109

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57126-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main57126-13010iAE111,CE110,EE111199704-199804

57111MEMBER, FRONT SIDE, RH

main57111-12201iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

57112MEMBER, FRONT SIDE, LH

main57112-12142iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA199804-199910

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12060iAE111,CE110,EE111199704-199804

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12060iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-12110iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57117-12110iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA199804-199910

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57016-02010iAE111,ZZE11#..UKP199809-200111

main57016-02020iEE111,WZE110..UKP199809-200111

main57016-12050iAE111199704-199804

main57016-12060iWZE110..HB200001-200008

main57016-12100iCDE110,WZE110..JPP200008-200109

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57017-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main57017-13010iCDE110,WZE110,ZZE11#..JPP199910-200109

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main57407-12070iCDE110,WZE110,ZZE11#..JPP199910-200109

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-02060iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main57401-12510iEE111..HB..3FC..LUNA;EE111..HB..(G6,STD,TERRA);AE111,CE110..HB..(G6,TERRA);AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA199804-199910

main57401-12530iAE111,CE110,EE111..JPP..LB199704-199910

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-02060iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main57402-12510iAE111,CE110,EE111..HB199704-199804

main57402-12530iAE111,CE110,EE111..JPP..LB199704-199910

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-02030iWZE110,ZZE11#..UKP199911-200111

main57417-02040iAE111,EE111..UKP199809-199911

main57417-12110iCDE110,WZE110,ZZE11#..JPP199910-200109

main57417-13010iAE111,CE110,EE111199704-199804

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-02030iWZE110,ZZE11#..UKP199911-200111

main57418-02040iAE111,EE111..UKP199809-199911

main57418-12070iCDE110,WZE110,ZZE11#..JPP199910-200109

main57418-13010iAE111,CE110,EE111199704-199804

57423BREINFORCEMENT, FRONT FLOOR UNDER, INNER RH

main57505-02010iWZE110,ZZE11#..UKP..RHD199911-200111

main57505-12060iCDE110,WZE110,ZZE11#..JPP..RHD199910-200107

57424BREINFORCEMENT, FRONT FLOOR UNDER, INNER LH

main57424-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main57424-12020iCDE110,WZE110,ZZE11#..JPP199910-200109

57451MEMBER, FRONT FLOOR CROSS

main57451-02040iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main57451-12152iAE111,CE110,EE111199704-199707

main57451-12153iCDE110,WZE110,ZZE11#..JPP199910-200109

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02905iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main57601-1A903iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA199804-199910

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02902iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main57602-1A901iAE111,CE110,EE111199704-199804

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main57605-12150iCDE110,ZZE11#..JPP..LB199910-200109

main57605-12170iAE111,CE110,EE111..HB199704-199804

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-02902iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main57615-12902iCDE110,ZZE11#..JPP..LB199910-200109

main57615-12904iCDE110,WZE110,ZZE11#..HB199910-200107

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-02902iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main57616-12904iAE111,CE110,EE111..JPP..LB199704-199910

main57616-12907iEE111..HB..3FC..LUNA;EE111..HB..(G6,STD,TERRA);AE111,CE110..HB..(G6,TERRA);AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA199804-199910

57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING

main57703-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

RH

main57703-12080iCDE110,WZE110,ZZE11#..JPP199910-200109

RH

main57704-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

LH

main57704-12100iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA199804-199910

LH

57805DREINFORCEMENT ASSY, NO.1 SEAT LEG, REAR NO.1

main57805-12060iAE111,CE110,EE111199704-199804

58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH

main58323-12130iEE111..HB..3FC..LUNA;EE111..HB..(G6,STD,TERRA);AE111,CE110..HB..(G6,TERRA);AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA199804-199910

58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH

main58324-12070iCDE110,WZE110,ZZE11#..LB199910-200111

main58324-12080iCDE110,WZE110,ZZE11#..HB199910-200107

7402BATTERY CARRIER

→ Go to FIG 74-02

9011505066

main90115-05066

9011506243

main90115-06243

9011506273

main90115-06273

9033330008

main90333-30008

9095001025

main90950-01025

9095001539

main90950-01539

9095001550

main90950-01550

9095001631

main90950-01631

9095001701

main90950-01701

9095001826

main90950-01826

9095001847

main90950-01847

9095001871

main90950-01871

9095001944

main90950-01944

9095006001

main90950-06001

9095006108

main90950-06108

50 parts on this diagram · 1 diagram in section
