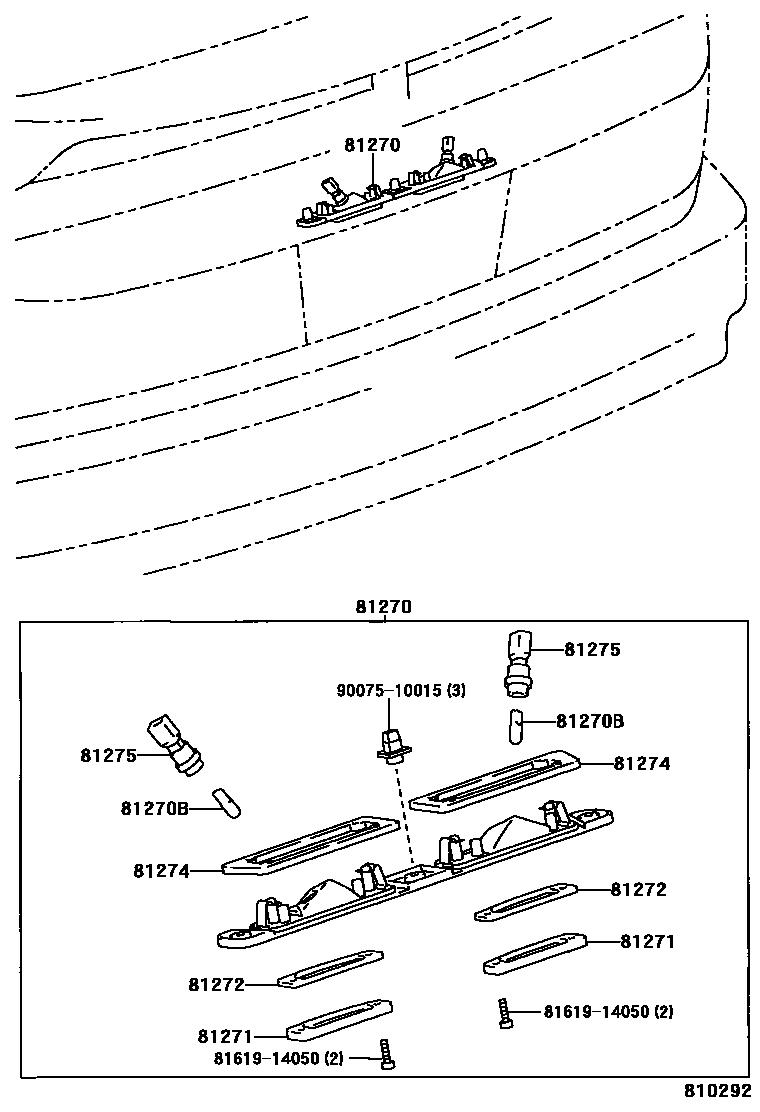

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-12450iAE10#,CE100,EE10#..LB199205-199505

main81270-12470iAE10#,CE100,EE10#..HB199205

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iAE10#,CE100,EE10#199205

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-12470iAE10#,CE100,EE10#..HB199205

RH

main81276-12470iAE10#,CE100,EE10#..HB199205

LH

81272GASKET, LICENSE PLATE LAMP LENS

main81272-12470×2iAE10#,CE100,EE10#..HB199205

81274GASKET, LICENSE PLATE LAMP BODY

main81274-12470×2iAE10#,CE100,EE10#..HB199205

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main90075-99011×2iAE10#,CE100,EE10#..HB199205

8161914050

main81619-14050

9007510015

main90075-10015

8 parts on this diagram · 2 diagrams in section
