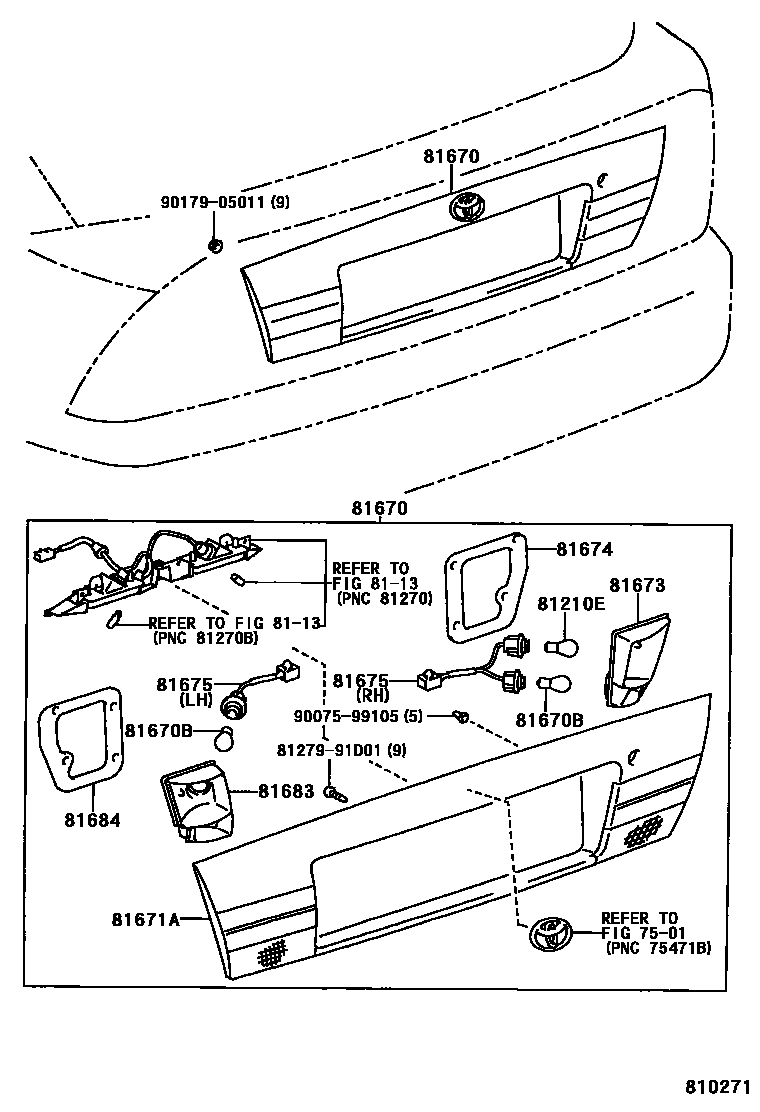

BACK UP LAMP

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

81210EBULB, REAR FOG LAMP

main99132-11210iAE10#,CE100,EE10#..LB199205-199505

12V 21W

81670LAMP ASSY, BACK-UP, RH

main81670-12060iAE10#,CE100,EE10#..LB..LHD199205-199505

main81670-12070iAE10#,CE100,EE101..LB..RHD199205-199505

81670BBULB(FOR BACK-UP LAMP)

main99132-11210×2iAE10#,CE100,EE10#..LB199205-199505

12V 21W

81671ALENS & BODY, BACK-UP LAMP

main81671-12060iAE10#,CE100,EE10#..LB..LHD199205-199505

main81671-12070iAE10#,CE100,EE101..LB..RHD199205-199505

81673BODY, BACK-UP LAMP, RH

main81673-12060iAE10#,CE100,EE10#..LB..LHD199205-199505

main81673-12070iAE10#,CE100,EE101..LB..RHD199205-199505

81674GASKET, BACK-UP LAMP BODY, RH

main81672-12060iAE10#,CE100,EE10#..LB199205-199505

81675SOCKET & WIRE, BACK-UP LAMP

main81675-12060iAE10#,CE100,EE10#..LB199205-199505

RH

main81678-12060iAE10#,CE100,EE10#..LB199205-199505

LH

81683BODY, BACK UP LAMP, LH

main81676-12060iAE10#,CE100,EE10#..LB..LHD199205-199505

main81676-12070iAE10#,CE100,EE101..LB..RHD199205-199505

81684GASKET, BACK UP LAMP BODY, LH

main81674-12060iAE10#,CE100,EE10#..LB199205-199505

8127991D01WASHER, SIDE TURN SIGNAL LAMP

main81279-91D01

9007599105

main90075-99105

9017905011

main90179-05011

14 parts on this diagram · 1 diagram in section
