FOG LAMP

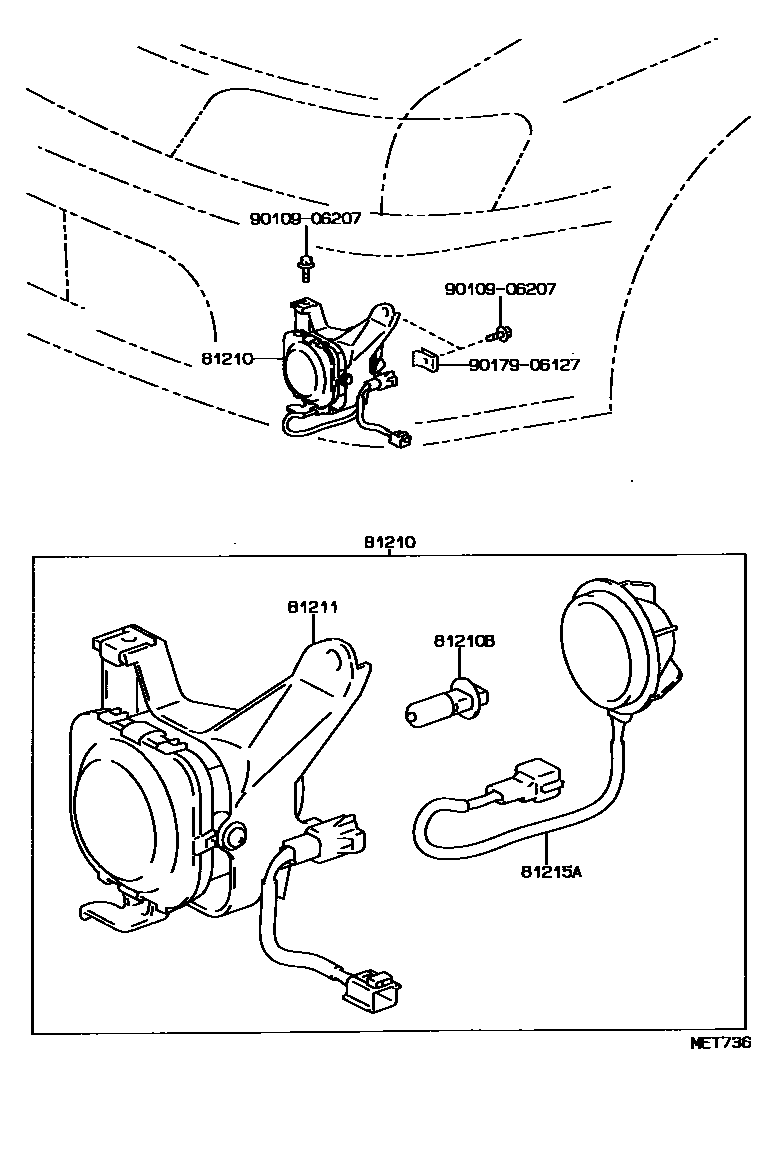

Parts diagram

81210LAMP ASSY, FOG

main81210-12090i199211-199505

RH

main81220-12080i199211-199505

LH

81210BBULB, FOG LAMP

main90981-13018×2i199211-199505

12V 55W,HALOGEN

81211LENS, FOG LAMP

main81211-12090i199211-199505

RH

main81221-12080i199211-199505

LH

81215ASOCKET & WIRE, FOG LAMP

main81215-12080×2i199211-199505

9010906207

main90109-06207

9017906127

main90179-06127

6 parts on this diagram · 1 diagram in section
