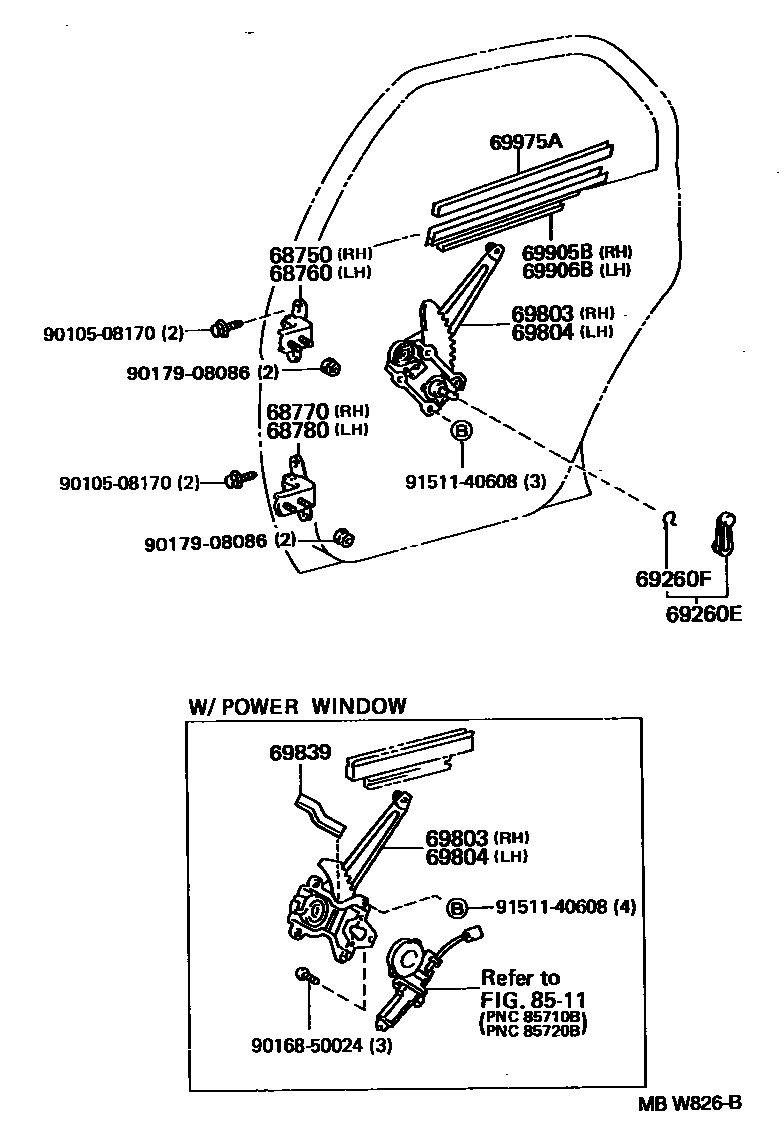

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-12070iAE10#,CE100,EE10#..5D199205

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-12070iAE10#,CE100,EE10#..5D199205

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-12080iAE10#,CE100,EE10#..5D199205

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-12070iAE10#,CE100,EE10#..5D199205

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-12090-03×2iAE10#,CE100,EE10#..5D199205

SHADOW GRAY,TRIM1#

main69260-12090-J0×2iAE101,CE100,EE10#..5D199205

DARK BLUE,TRIM8#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01005×2iAE10#,CE100,EE10#..5D199205

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12080iAE101..HB..5D;CE100,EE101..HB..5D..LHD199401

W(*PW & ONE TOUCH ONLY DOWN)

main69803-12100iCE100..LB..LHD;AE10#,EE101..LB199405-199505

W(*PW)

main69830-12200iAE101,CE100,EE10#..HB..5D199206

main69830-12250iAE10#,CE100,EE10#..LB199205-199505

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12080iEE101..HB..5D199412-199504

95 SPRINGCAMPAIGN,W(*PW)

main69804-12100iAE10#,EE101..LB199205-199405

W(*PW)

main69840-12200iAE101,CE100,EE10#..HB..5D199206

main69840-12250iAE10#,CE100,EE10#..LB199205-199505

69839PAD, REAR DOOR WINDOW REGULATOR

main69839-12010×4iCE100..LB..LHD;AE10#,EE101..LB199405-199505

main69839-12020×2iEE101..HB..5D199412-199504

95 SPRINGCAMPAIGN,W(*PW)

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-12110iAE101,CE100,EE10#..HB..5D199206

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-12100iAE101,CE100,EE10#..HB..5D199206

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-12010×2iAE101,CE100,EE10#..HB..5D199206

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508170

main90105-08170

9016850024

main90168-50024

9017908086

main90179-08086

9151140608

main91511-40608

17 parts on this diagram · 1 diagram in section
