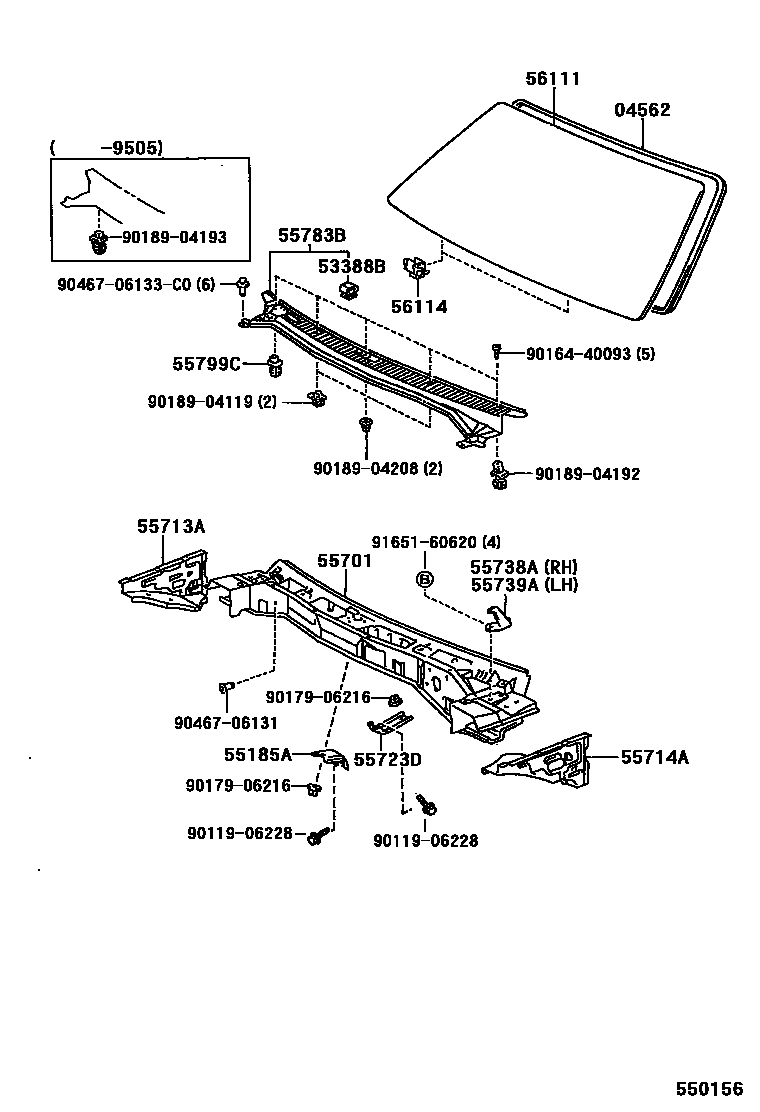

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE10#,CE100,EE10#199205

53388BCUSHION, HOOD, REAR

main53388-12040iAE10#,CE100,EE10#199205

55185ABRACE, DASH PANEL TO COWL

main55185-12010iAE101,CE100,EE101..LHD199505

55701PANEL SUB-ASSY, COWL

main55700-12801iAE10#,EE101..RHD199412

main55700-12840iAE102..RHD199211-199412

main55700-12860iEE100199205-199505

main55700-12870iCE100..LHD199205-199505

main55700-12890iAE101,EE101..LHD199205-199505

main55700-12906iAE101,EE101..RHD199205-199412

main55700-1A020iAE102..LHD199211-199505

main55700-1A030iCE100..RHD199205-199412

main55700-1A031iCE100..RHD199412

main55700-1A160iAE101,CE100,EE101..LHD199505

55713APANEL, COWL TOP SIDE, RH

main55713-12080iAE10#,CE100,EE10#..HB199205-199505

main55713-12081iAE101,CE100,EE101199505

main55713-12090iAE10#,CE100,EE10#..LB199205-199505

55714APANEL, COWL TOP SIDE, LH

main55714-12080iAE10#,CE100,EE10#..HB199205-199505

main55714-12081iAE101,CE100,EE101199505

main55714-12090iAE10#,CE100,EE10#..LB199205-199505

55723DBRACE, INSTRUMENT PANEL REINFORCE TO COWL

main55723-12060iAE101,CE100,EE101..LHD199505

55738ASTOPPER, HOOD, RH

main55738-12090iAE10#,CE100,EE10#199205

55739ASTOPPER, HOOD, LH

main55739-12050iAE10#,CE100,EE10#199205

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-12080iAE10#,CE100,EE101..RHD199205

main55708-12130iAE10#,CE100,EE10#..LHD199205

main55708-12140iAE10#,CE100,EE10#..LHD199205

COLD AREA SPEC

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-12010iAE101,CE100,EE101199505

56111GLASS, WINDSHIELD

main56111-1A440iAE101,CE100,EE10#..HB..(STD,XL,XLI)199205

*LAM,T=4.7,CLEAR

main56111-1A460iAE10#,CE100,EE10#..HB..(GLI,GTI,SI,XL,XLI)199205

*TL,T=4.7

main56111-1A530iAE10#,CE100,EE10#..LB199205-199505

*TL,T=4.7

main56111-1A550iAE10#,EE101..LB..(GLI,GTI)199205-199402

*TL,T=4.7,W(TOP SHADE BAND)

56114RETAINER, WINDSHIELD GLASS

main56110-12010iAE10#,CE100,EE10#199205

9011906228

main90119-06228

9016440093

main90164-40093

9017906216

main90179-06216

9018904119

main90189-04119

9018904192

main90189-04192

9018904193

main90189-04193

9018904208

main90189-04208

9046706131

main90467-06131

9046706133C0

main90467-06133C0

9165160620

main91651-60620

23 parts on this diagram · 1 diagram in section
