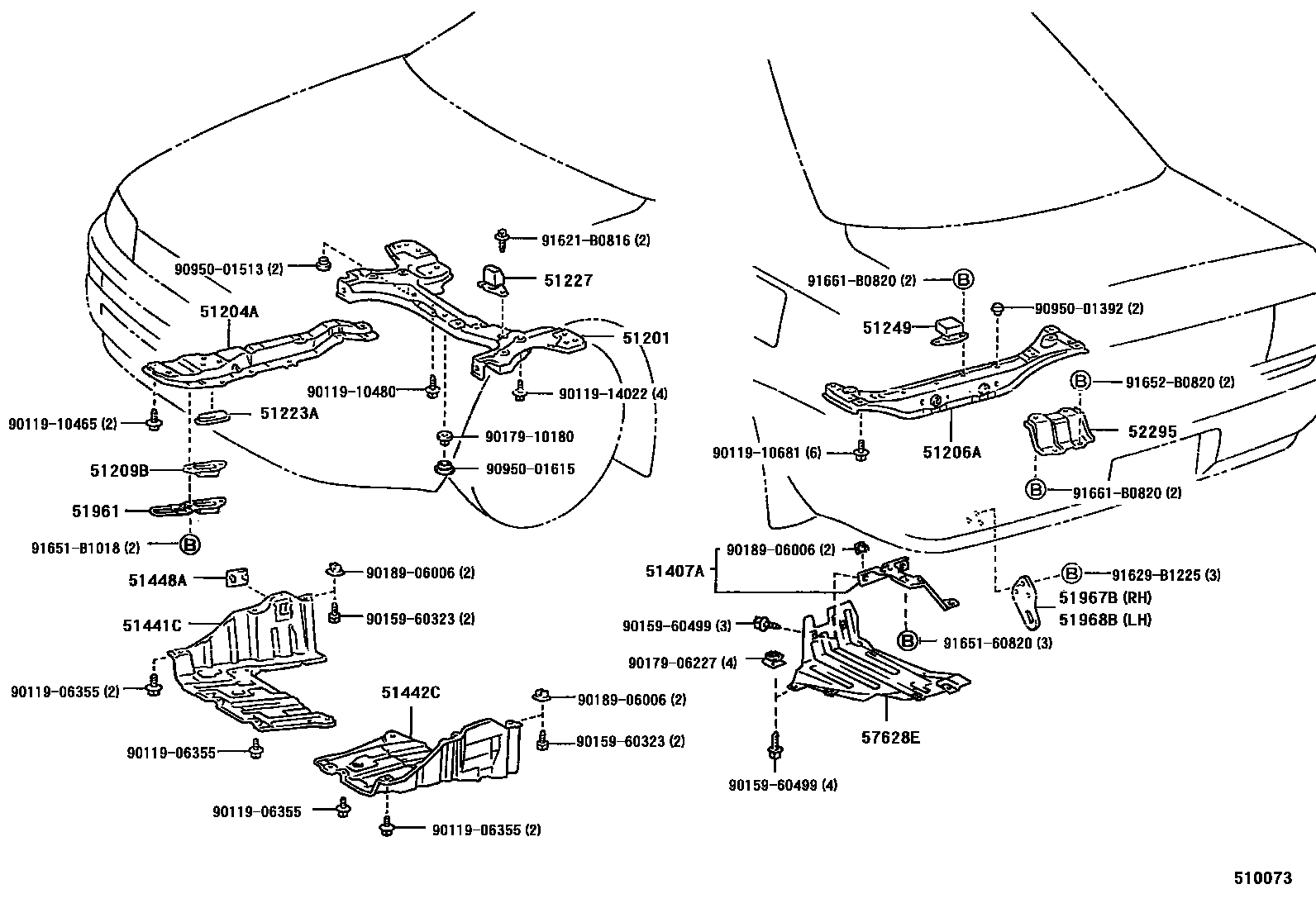

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12320iAE101,CE100,EE10#199205-199505

main51201-12360iEE100199205-199505

ROUGH ROAD PACKAGE

main51201-12360iAE102199211-199505

main51201-12380iAE101,CE100,EE101199505

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12080iAE10#,CE100,EE10#199205

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12040iAE10#,CE100,EE10#199205-199305

main51206-12060iAE10#,CE100,EE10#199305

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-12010iAE101,CE100,EE10#199205-199505

51223ACOVER, ENGINE MOUNTING HOLE

main51223-12010iAE10#,CE100,EE10#199205-199406

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-12040iAE10#,CE100,EE10#199205

51249DAMPER, REAR SUSPENSION MEMBER

main51249-12060iAE101,CE100,EE10#..LB199205-199305

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51407-12010iAE10#..LB199205-199505

51441CCOVER, ENGINE UNDER, RH

main51441-12140iAE10#,CE100,EE10#199205

51442CCOVER, ENGINE UNDER, LH

main51442-12080iAE10#,CE100,EE10#..5F199205

main51442-12090iAE101,EE101..ATM199205

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iAE10#,CE100,EE10#199205-199501

51961HOOK, NO.1

main51960-12040iAE102;AE101..RHD199205-199505

GERMANY SPEC

main51960-12060iAE101,CE100,EE101199505

51967BHOOK, TRANSPORT, REAR RH

main51967-12220iAE10#,CE100,EE10#..LB199205-199505

51968BHOOK, TRANSPORT, REAR LH

main51968-12110iAE10#,CE100,EE10#..LB199205-199505

main51968-12140iAE10#,CE100,EE10#..HB199205-199505

main51968-12160iAE101,CE100,EE101199505

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-12010iAE102;AE101,CE100,EE10#..HB199205-199305

57628ECOVER, REAR FLOOR SIDE MEMBER, LH

main57628-12060iAE10#..LB199205-199505

9011906355

main90119-06355

9011910465

main90119-10465

9011910480

main90119-10480

9011910681

main90119-10681

9011914022

main90119-14022

9015960323

main90159-60323

9015960499

main90159-60499

9017906227

main90179-06227

9017910180

main90179-10180

9018906006

main90189-06006

9095001392

main90950-01392

9095001513

main90950-01513

9095001615

main90950-01615

91621B0816

main91621-B0816

91629B1225

main91629-B1225

9165160820

main91651-60820

91651B1018

main91651-B1018

91652B0820

main91652-B0820

91661B0820

main91661-B0820

35 parts on this diagram · 1 diagram in section
