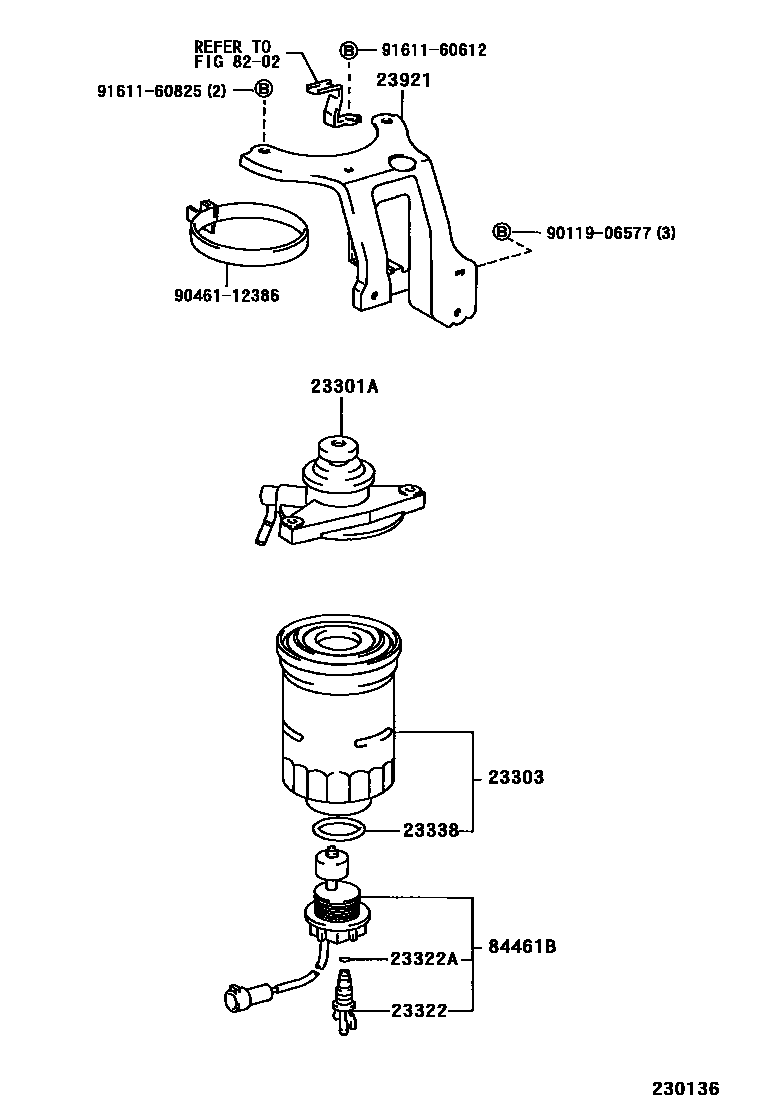

FUEL FILTER

0001 1 0002 1

23301ACAP ASSY, FUEL FILTER

main23301-64300i2C..CE100199205

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2C..CE100199205

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i2C..CE100199205

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2C..CE100199205

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2C..CE100199205

23921SUPPORT, FUEL FILTER

main23264-11070i2E..EE100199205-199505

main23921-64181i2C..CE100199205-199505

main23921-64182i2C..CE100199505

8202WIRING & CLAMP

→ Go to FIG 82-02

84461BSWITCH, LEVEL WARNING

main84461-12060iCE100199205-199704

9011906577

main90119-06577

9046112386

main90461-12386

9161160612

main91611-60612

9161160825

main91611-60825

12 parts on this diagram · 2 diagrams in section
