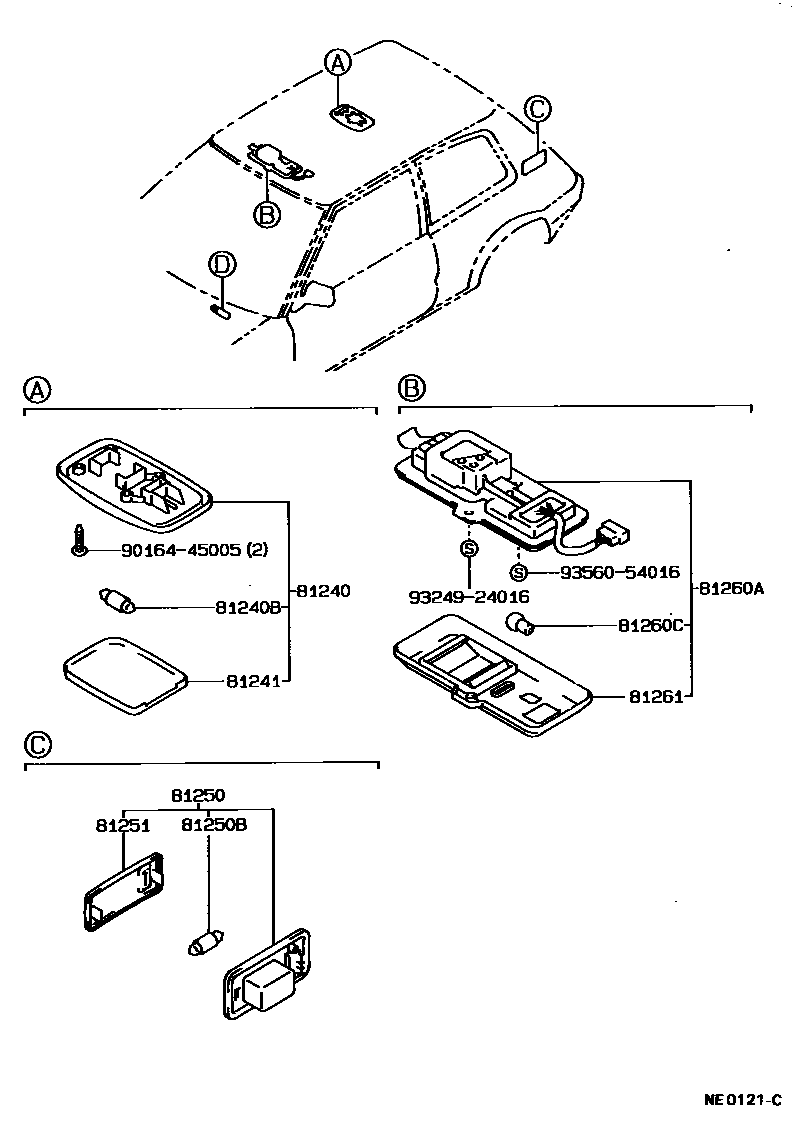

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-12020-03iAE92,CE90,EE90198705-198908

LIGHT GRAY,TRIM1#

main81240-12020-04iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198908-199206

LIGHT BLUE,TRIM8#

main81240-12020-05iAE92,CE90,EE90..CBR,DSL198705-198908

LIGHT BEIGE,TRIM4#

main81240-12020-16iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

LIGHT BROWN,TRIM4#

main81240-12020-S3iAE92,CE90,EE90199106-199211

LIGHT GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iAE92,CE90,EE90198705-199211

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-12020iAE92,CE90,EE90198705-199211

81250LAMP ASSY, ROOM, NO.2

main81250-12030-03iAE92,CE90,EE90198705-199211

SHADOW GRAY,TRIM1#

main81250-12030-04iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198908-199206

DARK BLUE,TRIM8#

main81250-12030-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

main81250-12030-16iEE90..MTM..XLI;EE90..LHD..(GL,XL);AE92,CE90..LHD..(GLI,XL,XLI)198908-199206

BROWN,TRIM4#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAE92,CE90,EE90198705-199211

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-12030iAE92,CE90,EE90198705-199211

81260ALAMP ASSY, MAP

main81260-16040-03iAE92..GL,GTI;AE92..3D..XL;CE90,EE90..GL,XL198705-198809

LIGHT GRAY,TRIM1#

main81260-16040-04iAE92,CE90,EE90..LHD..(GL,XL)198705-198811

LIGHT BLUE,TRIM8#

main81260-16040-05iAE92,CE90,EE90..GL,XL198705-198809

LIGHT BEIGE,TRIM4#

main81260-16040-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

LIGHT BROWN,TRIM4#

main81260-16040-B0iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198809-199211

LIGHT GRAY,TRIM1#

main81260-16040-E0iAE92,CE90,EE90..GL,XL198809-198908

LIGHT BEIGE,TRIM4#

main81260-16040-J0iAE92,CE90,EE90..GL,GLI,XL,XLI198908-199206

LIGHT BLUE,TRIM8#

81260CBULB(FOR MAP LAMP)

main90981-12014iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198705-199211

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-20061-05iAE92,CE90,EE90..GL,XL198705-198809

LIGHT BEIGE,TRIM4#

main81261-20061-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

LIGHT BROWN,TRIM4#

main81261-20061-13iAE92,CE90,EE90..GL,GTI,XL198705-198809

LIGHT GRAY,TRIM1#

main81261-20061-14iAE92,CE90,EE90..LHD..(GL,XL)198705-198811

LIGHT BLUE,TRIM8#

main81261-20061-B0iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198809-199211

LIGHT GRAY,TRIM1#

main81261-20061-E0iAE92,CE90,EE90..GL,XL198809-198908

LIGHT BEIGE,TRIM4#

main81261-20061-J0iAE92,CE90,EE90..LHD..(GL,XL)198811-198908

LIGHT BLUE,TRIM8#

9016445005

main90164-45005

9324924016

main93249-24016

9356054016

main93560-54016

12 parts on this diagram · 2 diagrams in section
