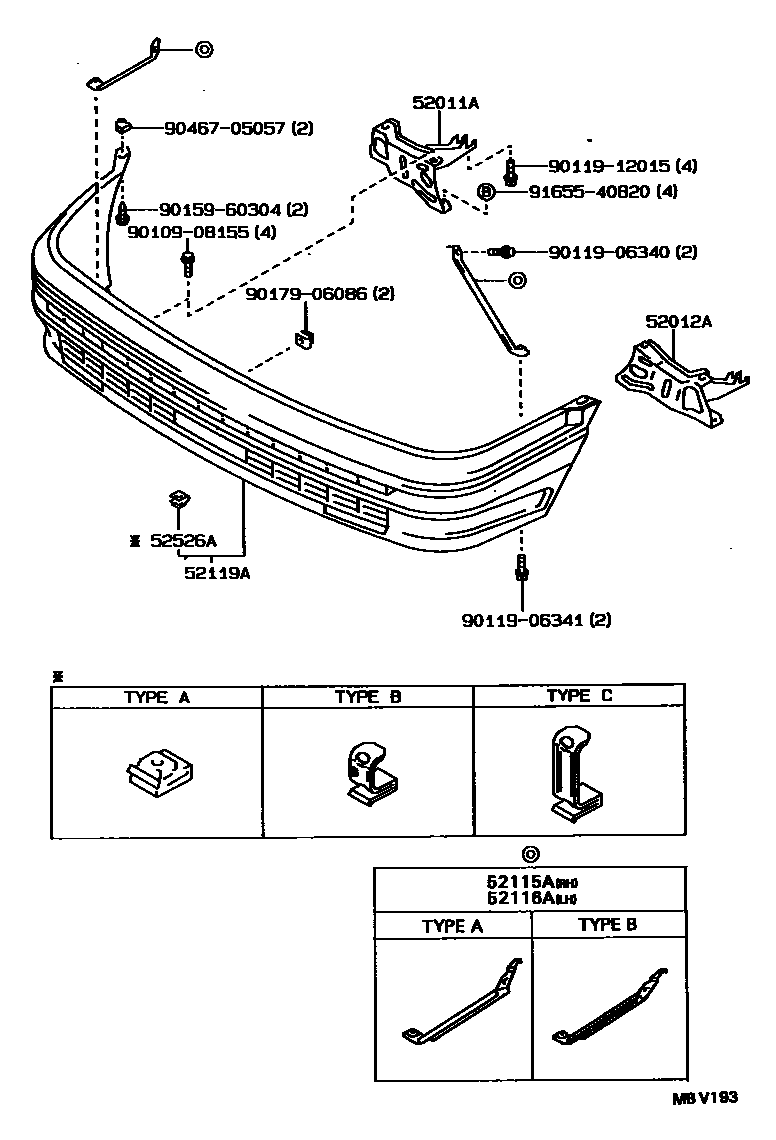

FRONT BUMPER & BUMPER STAY

0001 1TYPE F 0002 1TYPE G 0003 1TYPE H

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-12360iAE92..CBR198705-199206

TYPE F

main52011-12370iAE92..RHD198908-199205

TYPE H

main52011-12380iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198705-199211

TYPE G

main52011-12380iAE92..GTI,SR5199008-199211

TYPE F

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-12370iCE90198705-199206

TYPE F

main52012-12380iAE92..RHD198908-199205

TYPE H

main52012-12390iAE92..5D;AE92..3D..GL;CE90,EE90..LHD..(GL,XL)198705-199206

TYPE G

main52012-12390iAE92..GTI,SR5199008-199211

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12260iAE92,EE90..LHD..(GL,GLI)198705-199206

TYPE B

main52115-12270iAE92,CE90,EE90..GL,GTI,XL198705-199211

TYPE A

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12200iAE92,CE90,EE90..LHD..(XL,XLI)198705-199206

TYPE B

main52116-12210iAE92..GTI,SR5198705-199211

TYPE A

52119ACOVER, FRONT BUMPER

main52119-1A270iAE92..EFI;EE90..RHD..5D198705-199211

TYPE G

main52119-1A280iAE92..LHD..EFI198705-199206

TYPE G,W(HEAD LAMP CLEANER)

main52119-1A280iAE92..LHD..GTI198908-199211

TYPE G,W(HEADLAMP CLEANER);TYPE G,W(HEAD LAMP CLEANER)

main52119-1A350iEE90..STD198705-199206

TYPE F

main52119-1A370iAE92,EE90..LHD..(GL,GLI)198908-199206

TYPE F,W(HEADLAMP CLEANER)

main52119-1A370iAE92,CE90,EE90..LHD..(CBR,DSL)198705-199206

TYPE F,W(HEAD LAMP CLEANER)

main52119-1A390iAE92..RHD198908-199205

TYPE H,W(HEAD LAMP CLEANER)

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52565-12040iAE92,CE90,EE90198705-198910

TYPE A

main52565-12090iEE90..3D;EE90..LHD..5D;AE92,CE90..CBR,DSL198705-199211

TYPE B

main52565-12110iAE92,CE90,EE90..CBR,DSL198705-199206

TYPE C

main52565-16020iAE92,CE90,EE90198910-199211

TYPE A

9010908155

main90109-08155

9011906340

main90119-06340

9011906341

main90119-06341

9011912015

main90119-12015

9015960304

main90159-60304

9017906086

main90179-06086

9046705057

main90467-05057

9165540820

main91655-40820

14 parts on this diagram · 3 diagrams in section
