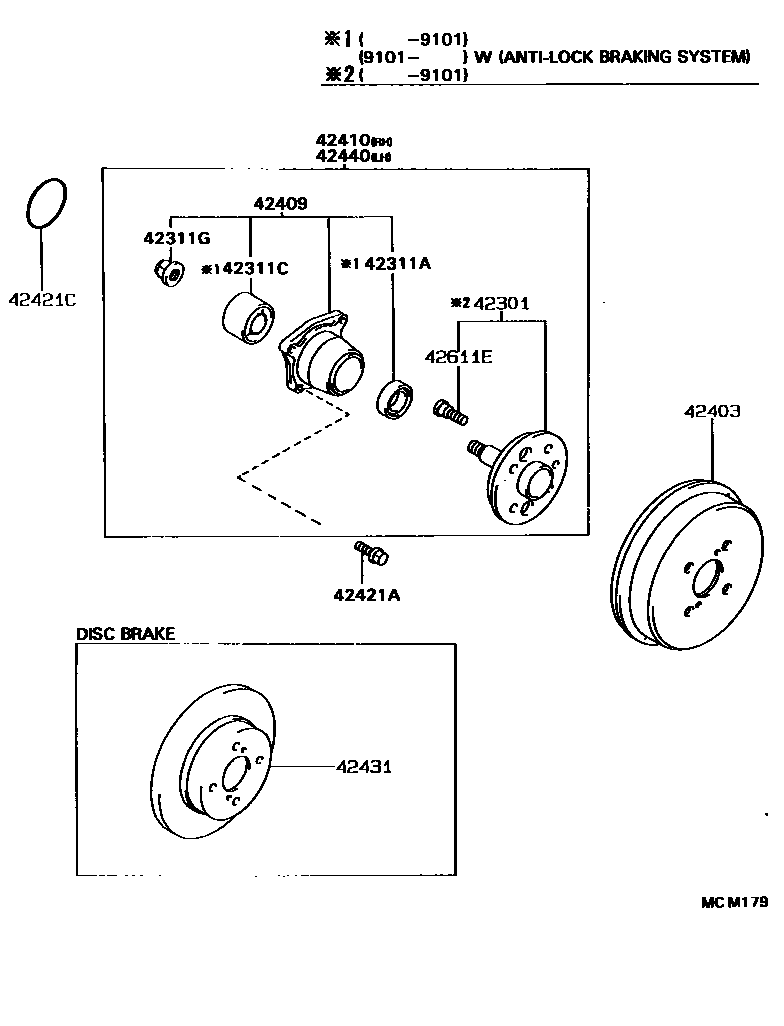

REAR AXLE SHAFT & HUB

42301SHAFT SUB-ASSY, REAR AXLE

main42301-12150×2iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI198908-199101

main42301-12170×2iAE92..LHD..GTI198908-199101

W(*66)

main43502-17010×2iAE92..GTI198705-199101

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-41003×2iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI198908-199101

main90311-41004×2iAE92..GTI198705-199101

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-28006×2iAE92,CE90,EE90198705-198908

42311GNUT(FOR REAR AXLE SHAFT)

main90179-20003×2iAE92,CE90,EE90198705-198908

main90179-20017iAE92,CE90,EE90199101-199211

42403DRUM SUB-ASSY, REAR BRAKE

main42431-20080×2iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI198705-199206

42409BEARING SUB-ASSY, REAR AXLE

main42409-19015iAE92,CE90,EE90199101-199211

main42421-19015iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI198908-199101

main42421-19025iAE92..GTI198705-199101

main42421-19035iAE92..LHD..GTI198908-199211

RH

main42422-19015iAE92..LHD..GTI198908-199211

LH

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-12050iAE92,CE90,EE90..CBR,DSL198705-198908

main42410-12060iAE92..GTI198705-199101

main42410-12070iAE92..LHD..GTI198908-199211

W(*66)

main42410-12130iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI199101-199206

main42410-12140iAE92..GTI199101-199211

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10124×8iAE92..GTI199001-199211

main90105-10251×8iAE92..LHD..GTI198908-199211

W(*66)

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-61002×2iAE92..GTI199001-199211

42431DISC, REAR

main42431-12090×2iAE92..GTI198705-199211

main42431-12120×2iAE92..LHD..GTI198908-199211

W(*66)

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-12050iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI198908-199101

main42410-12060iAE92..GTI198705-199101

main42410-12130iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI199101-199206

main42410-12140iAE92..GTI199101-199211

main42440-12010iAE92..LHD..GTI198908-199211

W(*66)

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×8iAE92,CE90,EE90198705-199211

12 parts on this diagram · 1 diagram in section
