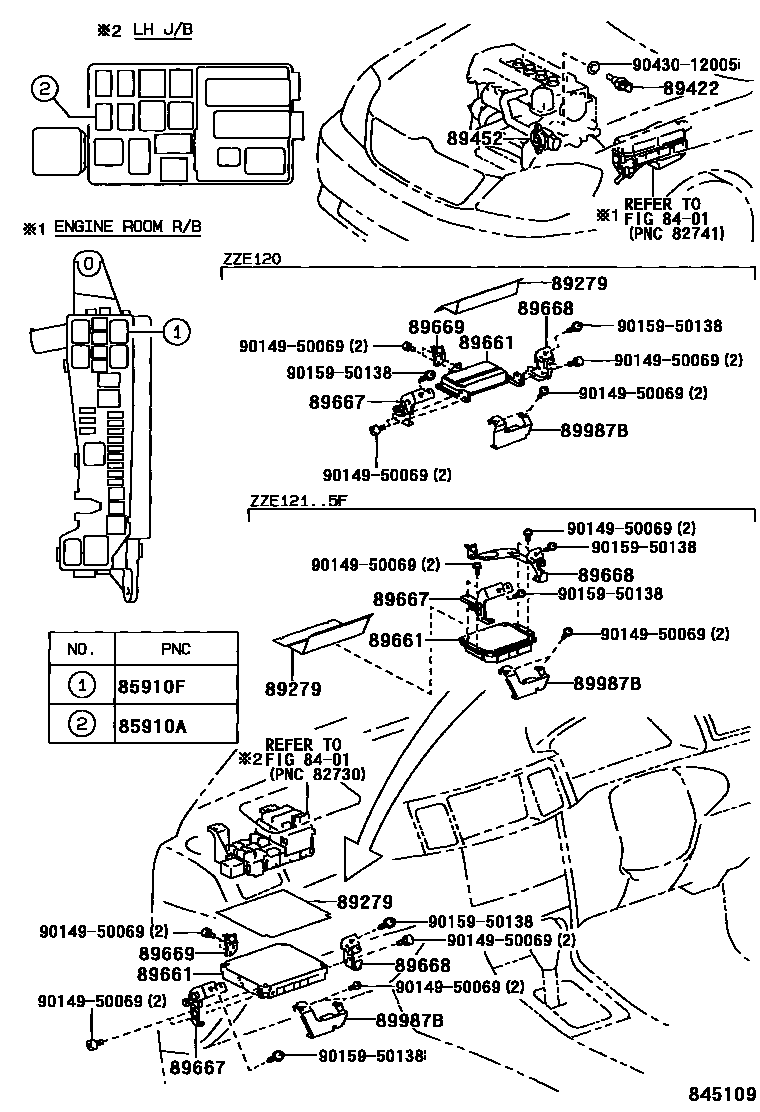

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02020iZZE12#..JPP200209-200405

85910FRELAY, COMPUTER (FOR EFI)

main90987-02020iZZE12#..JPP200405

89279COVER, ENGINE CONTROL COMPUTER

main89279-12150iZZE121..JPP..4FC200209-200405

main89279-52050iZZE12#..JPP..5F200209-200405

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iZZE12#..JPP200405

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iZZE120..JPP200405-200610

89661COMPUTER, ENGINE CONTROL

main89661-02730iZZE120..JPP200209-200302

PART NUMBER LABEL=89661-02730

main89661-02731iZZE120..JPP200302-200405

PART NUMBER LABEL=89661-02731

main89661-02740iZZE120..JPP200209-200302

PART NUMBER LABEL=89661-02740

main89661-02741iZZE120..JPP200302-200405

PART NUMBER LABEL=89661-02741

main89661-02B00iZZE120..JPP200405-200410

PART NUMBER LABEL=89661-02B00

main89661-02B01iZZE120..JPP..RHD200411-200510

PART NUMBER LABEL=89661-02B01

main89661-02B10iZZE120..JPP200405-200410

PART NUMBER LABEL=89661-02B10

main89661-02B11iZZE120..JPP200411

PART NUMBER LABEL=89661-02B11

main89661-02B20iZZE120..JPP200405-200411

PART NUMBER LABEL=89661-02B20

main89661-02B21iZZE120..JPP..LHD200411

PART NUMBER LABEL=89661-02B21

main89661-02B30iZZE120..JPP200405-200411

PART NUMBER LABEL=89661-02B30

main89661-02B31iZZE120..JPP200411

PART NUMBER LABEL=89661-02B31

main89661-12A00iZZE121..JPP..RHD..4FC200405

PART NUMBER LABEL=89661-12A00

main89661-12A10iZZE121..JPP..5F200405

PART NUMBER LABEL=89661-12A10

main89661-12A20iZZE121..JPP..5F200405

PART NUMBER LABEL=89661-12A20

main89661-13180iZZE121..JPP..4FC200209-200405

PART NUMBER LABEL=89661-13180

main89661-13190iZZE121..JPP..4FC200209-200405

PART NUMBER LABEL=89661-13190

main89661-13210iZZE121..JPP..5F200209-200405

PART NUMBER LABEL=89661-13210

main89661-13250iZZE121..JPP..5F200209-200405

PART NUMBER LABEL=89661-13250

main89666-12350iZZE121..JPP..LHD..4FC200405

PART NUMBER LABEL=89666-12350

main89666-12360iZZE121..JPP..RHD..4FC200405

PART NUMBER LABEL=89666-12360

main89666-12370iZZE121..JPP..LHD..4FC200405

PART NUMBER LABEL=89666-12370

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12190iZZE121..JPP200405

main89667-13020iZZE120..JPP..LHD200405

main89667-13030iZZE121..JPP..LHD..5F200209-200405

main89667-13041iZZE120..JPP..RHD200405

main89667-13050iZZE121..JPP..RHD..5F200209-200405

main89667-13150iZZE121..JPP..RHD..4FC200209-200405

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12100iZZE121..JPP200405

main89668-13020iZZE120..JPP..LHD200209-200405

main89668-13041iZZE120..JPP..RHD200209-200405

main89668-13060iZZE121..JPP..RHD..4FC200209-200405

main89668-13100iZZE121..JPP..LHD..5F200209-200405

main89668-13110iZZE121..JPP..RHD..5F200209-200405

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-12030iZZE121..JPP200405

main89669-13010iZZE120..JPP..LHD200405

main89669-13020iZZE120..JPP..RHD200209-200405

89987BBRACKET, COMPUTER, NO.1

main89987-13010iZZE121..JPP..RHD200209-200405

main89987-13020iZZE120..JPP..RHD200209-200405

9014950069

main90149-50069

9015950138

main90159-50138

9043012005

main90430-12005

14 parts on this diagram · 4 diagrams in section
