ARMREST & VISOR

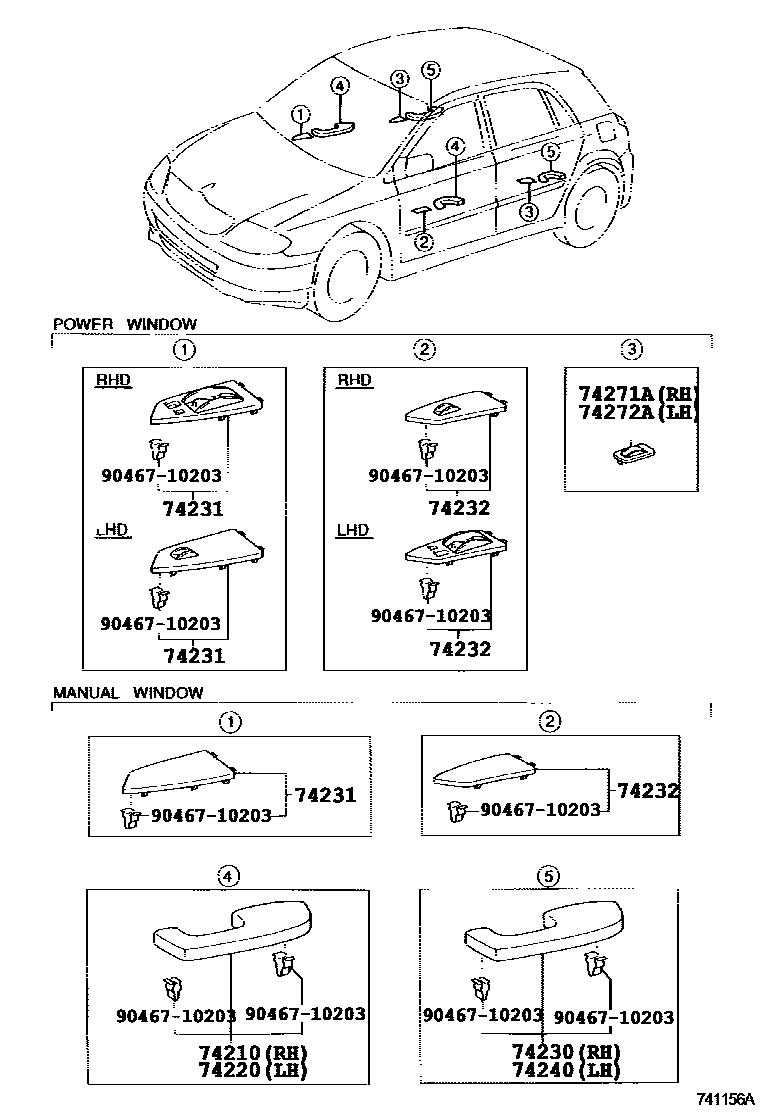

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-12250-A0i200209-200405
IVORY,TRIM0#
main74210-12250-B1i200209-200405
DK.GRAY,TRIM1#
main74210-12250-J0i200209-200405
DK.BLUE,TRIM8#
main74210-12251-B1i200409
DK.GRAY,TRIM1#
74220ARMREST ASSY, FRONT, LH
main74220-12190-A0i200209-200405
IVORY,TRIM0#
main74220-12190-B1i200209-200405
DK.GRAY,TRIM1#
main74220-12190-J0i200209-200405
DK.BLUE,TRIM8#
main74220-12191-B1i200409
DK.GRAY,TRIM1#
74230ARMREST ASSY, REAR, RH
main74210-12250-A0i200209-200405
IVORY,TRIM0#
main74210-12250-B1i200209-200405
DK.GRAY,TRIM1#
main74210-12250-J0i200209-200405
DK.BLUE,TRIM8#
main74210-12251-B1i200409
DK.GRAY,TRIM1#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-02270-A0i200209-200405
IVORY,TRIM0#
main74231-02270-B0i200209-200405
GRAPHIC CARBON,TRIM1#
main74231-02270-B2i200405-200508
W(POWER WINDOW = FRONT & REAR),DARK GRAY ME.22GY34,TRIM1#,CARBON GRAIN
main74231-02280-A0i200209-200405
IVORY,TRIM0#
main74231-02280-B0i200405
GRAPHIC CARBON,TRIM1#,CARBON GRAIN
main74231-02280-B2i200405-200508
W(POWER WINDOW = FRONT & REAR),DARK GRAY ME.22GY34,TRIM1#,CARBON GRAIN
main74231-02290-B0i200209-200405
W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1#
main74231-02290-J0i200209-200405
W(POWER WINDOW = FRONT ONLY),DK.BLUE,TRIM8#
main74231-02300-B0i200405
W(POWER WINDOW = FRONT & REAR);W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1#
main74231-02300-J0i200209-200405
W(POWER WINDOW = FRONT ONLY),DK.BLUE,TRIM8#
main74231-02310-B0i200405
DK.GRAY,TRIM1#
main74231-02310-J0i200209-200405
DK.BLUE,TRIM8#
main74231-02480-B0i200405
W(POWER WINDOW = FRONT & REAR),DK.GRAY,TRIM1#
main74231-02490-B1i200405-200508
DARK GRAY ME.22GY34,TRIM1#
main74231-02520-B0i200405-200508
W(POWER WINDOW = FRONT & REAR);W(POWER WINDOW = FRONT ONLY),DARK GRAY ME.22GY34,TRIM1#
main74231-02520-B1i200405
GRAPHIC CARBON,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-02270-A0i200209-200405
IVORY,TRIM0#
main74232-02270-B0i200405-200412
W(POWER WINDOW = FRONT & REAR),GRAPHIC CARBON,TRIM1#
main74232-02270-B2i200412-200508
W(POWER WINDOW = FRONT & REAR),DARK GRAY ME.22GY34,TRIM1#
main74232-02280-A0i200209-200405
IVORY,TRIM0#
main74232-02280-B0i200209-200405
GRAPHIC CARBON,TRIM1#
main74232-02280-B2i200405-200508
W(POWER WINDOW = FRONT & REAR);W(POWER WINDOW = FRONT ONLY),DARK GRAY ME.22GY34,TRIM1#,CARBON GRAIN
main74232-02290-B0i200405
W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1#
main74232-02290-J0i200209-200405
W(POWER WINDOW = FRONT ONLY),DK.BLUE,TRIM8#
main74232-02300-B0i200209-200405
W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1#
main74232-02300-J0i200209-200405
W(POWER WINDOW = FRONT ONLY),DK.BLUE,TRIM8#
main74232-02310-B0i200209-200405
DK.GRAY,TRIM1#
main74232-02310-J0i200209-200405
DK.BLUE,TRIM8#
main74232-02480-B0i200405
W(POWER WINDOW = FRONT & REAR),DK.GRAY,TRIM1#
main74232-02490-B1i200405-200508
W(POWER WINDOW = FRONT ONLY),DARK GRAY ME.22GY34,TRIM1#
main74232-02530-B0i200405-200508
W(POWER WINDOW = FRONT & REAR);W(POWER WINDOW = FRONT ONLY),DARK GRAY ME.22GY34,TRIM1#
main74232-02530-B1i200405
GRAPHIC CARBON,TRIM1#
74240ARMREST ASSY, REAR, LH
main74220-12190-A0i200209-200405
IVORY,TRIM0#
main74220-12190-B1i200209-200405
DK.GRAY,TRIM1#
main74220-12190-J0i200209-200405
DK.BLUE,TRIM8#
main74220-12191-B1i200409
DK.GRAY,TRIM1#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main84656-02130-A1i200209-200405
IVORY,TRIM0#
main84656-02130-B1i200209-200405
DK.GRAY,TRIM1#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main84656-02130-A1i200209-200405
IVORY,TRIM0#
main84656-02130-B1i200209-200405
DK.GRAY,TRIM1#
9046710203
main90467-10203

9 parts on this diagram · 2 diagrams in section
