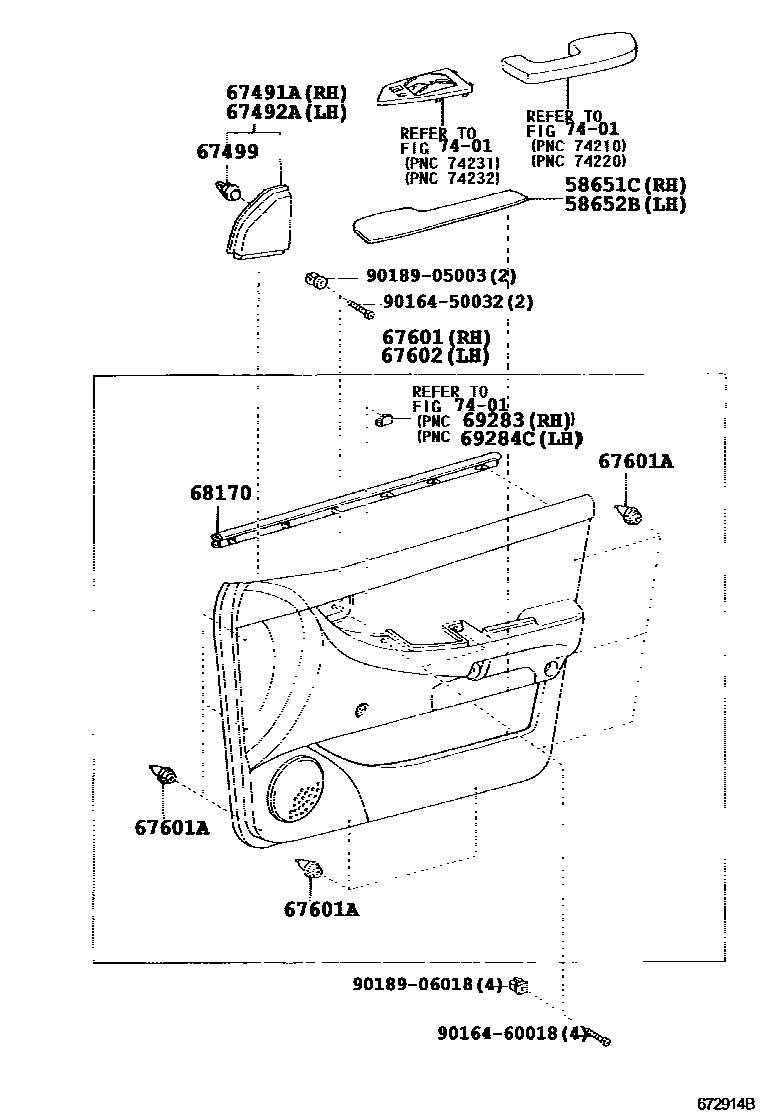

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1TRIM CODE TABLE

58651CPLATE, FRONT DOOR MAT, RH

main58651-02070-A0iCDE120,ZZE12#..JPP..SOL200209-200405

IVORY,TRIM0#

main58651-02070-B0iCDE120,ZZE12#..JPP200209-200405

DK.GRAY,TRIM1#

main58651-02070-J0iCDE120,ZZE12#..JPP..TERRA200209-200405

DK.BLUE,TRIM8#

58652BPLATE, FRONT DOOR MAT, LH

main58652-02050-A0iCDE120,ZZE12#..JPP..SOL200209-200405

IVORY,TRIM0#

main58652-02050-B0iNDE120,ZZE12#..JPP200405

DK.GRAY,TRIM1#

main58652-02050-J0iCDE120,ZZE12#..JPP..TERRA200209-200405

DK.BLUE,TRIM8#

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-12460iNDE120,ZZE12#..JPP..SOL200508-200510

main67491-12470iNDE120,ZZE12#..JPP..TERRA200405

W(MANUAL REMOTE CONTOROL MIRROR)

main67491-12480iNDE120,ZZE12#..JPP..SOL200405

W(TWEETER SPEAKER)

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-12460iNDE120,ZZE12#..JPP..SOL200508-200510

main67492-12470iNDE120,ZZE12#..JPP..TERRA200405

W(MANUAL REMOTE CONTOROL MIRROR)

main67492-12480iCDE120,ZZE12#..JPP..SOL200209-200405

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-12060×2iNDE120,ZZE12#..JPP200405

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-13A00-B0iNDE120,ZZE12#..JPP..SOL200405-200506

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67610-13A01-B0iNDE120,ZZE12#..JPP..SOL200507-200610

DK.GRAY,TRIM1#

main67650-13010-A0iCDE120,ZZE12#..JPP..SOL200209-200405

IVORY,TRIM0#

main67650-13010-B0iCDE120,ZZE12#..JPP..SOL200209-200405

DK.GRAY,TRIM1#

main67650-13020-B0iCDE120,ZZE12#..JPP..TERRA200209-200405

W(POWER WINDOW),DK.GRAY,TRIM1#

main67650-13020-B1iNDE120,ZZE12#..JPP..TERRA200405-200610

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67650-13020-J0iCDE120,ZZE12#..JPP..TERRA200209-200405

W(POWER WINDOW),DK.BLUE,TRIM8#

main67650-13030-B0iCDE120,ZZE12#..JPP..TERRA200209-200405

DK.GRAY,TRIM1#

main67650-13030-B1iNDE120,ZZE12#..JPP..LHD..TERRA200405-200610

DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1#

main67650-13030-J0iCDE120,ZZE12#..JPP..TERRA200209-200405

DK.BLUE,TRIM8#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main90467-10161×16iCDE120,ZZE12#..JPP200209-200405

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-1F010-B0iNDE120,ZZE12#..JPP..SOL200405-200506

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67620-1F011-B0iNDE120,ZZE12#..JPP..SOL200507-200610

DK.GRAY,TRIM1#

main67660-13010-A0iCDE120,ZZE12#..JPP..SOL200209-200405

IVORY,TRIM0#

main67660-13010-B0iCDE120,ZZE12#..JPP..SOL200209-200405

DK.GRAY,TRIM1#

main67660-13020-B0iCDE120,ZZE12#..JPP..TERRA200209-200405

W(POWER WINDOW),DK.GRAY,TRIM1#

main67660-13020-B1iNDE120,ZZE12#..JPP..TERRA200405-200610

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67660-13020-J0iCDE120,ZZE12#..JPP..TERRA200209-200405

W(POWER WINDOW),DK.BLUE,TRIM8#

main67660-13030-B0iCDE120,ZZE12#..JPP..TERRA200209-200405

DK.GRAY,TRIM1#

main67660-13030-B1iNDE120,ZZE12#..JPP..LHD..TERRA200405-200610

DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1#

main67660-13030-J0iCDE120,ZZE12#..JPP..TERRA200209-200405

DK.BLUE,TRIM8#

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-12320iNDE120,ZZE12#..JPP200405

RH

main68172-12240iCDE120,ZZE12#..JPP200209-200405

LH

7401ARMREST & VISOR

→ Go to FIG 74-01

9016450032

main90164-50032

9016460018

main90164-60018

9018905003

main90189-05003

9018906018

main90189-06018

14 parts on this diagram · 3 diagrams in section
