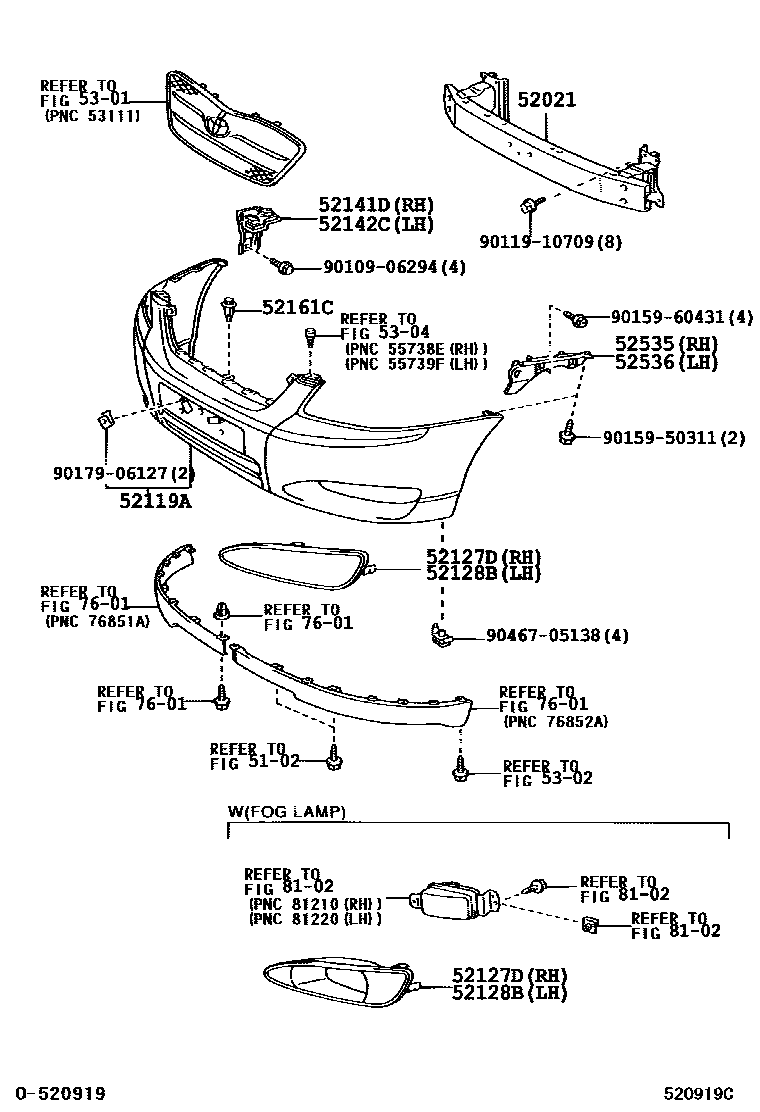

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-13030iCDE120,ZZE12#..JPP200209-200405

52119ACOVER, FRONT BUMPER

main52119-13911iCDE120,ZZE12#..JPP..LHD200209-200405

PAINT REQ.,W(HEADLAMP CLEANER)

main52119-13912iCDE120,ZZE12#..JPP200209-200405

PAINT REQ.

main52119-13914iNDE120,ZZE12#..JPP..LHD200405

PAINT REQ.,W(HEADLAMP CLEANER)

main52119-13922iNDE120,ZZE12#..JPP200405

PAINT REQ.

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-02120iNDE120,ZZE12#..JPP200405

W(FOG LAMP)

main52127-02130iNDE120,ZZE12#..JPP200405

main52127-13070iCDE120,ZZE12#..JPP200209-200405

main52127-13080iCDE120,ZZE12#..JPP200209-200405

W(FOG LAMP)

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-02110iZZE12#..JPP200405

W(FOG LAMP)

main52128-02120iNDE120..JPP200408

W(FOG LAMP)

main52128-02130iZZE12#..JPP200405

main52128-02140iNDE120..JPP200408

main52128-13070iCDE120,ZZE12#..JPP200209-200405

main52128-13080iCDE120,ZZE12#..JPP200209-200405

W(FOG LAMP)

52141DSTAY, FRONT BUMPER, RH

main52081-13020iCDE120,ZZE12#..JPP200209-200405

main52081-13030iNDE120,ZZE12#..JPP200405

52142CSTAY, FRONT BUMPER, LH

main52082-13020iCDE120,ZZE12#..JPP200209-200405

main52082-13030iNDE120,ZZE12#..JPP200405

52161CPIECE, FRONT BUMPER

main52161-16010×3iCDE120,ZZE12#..JPP200209-200405

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-13040iCDE120,ZZE12#..JPP200209-200405

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-13020iCDE120,ZZE12#..JPP200209-200405

5301RADIATOR GRILLE

→ Go to FIG 53-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8102FOG LAMP

→ Go to FIG 81-02

9010906294

main90109-06294

9011910709

main90119-10709

9015950311

main90159-50311

9015960431

main90159-60431

9017906127

main90179-06127

9046705138

main90467-05138

21 parts on this diagram · 2 diagrams in section
