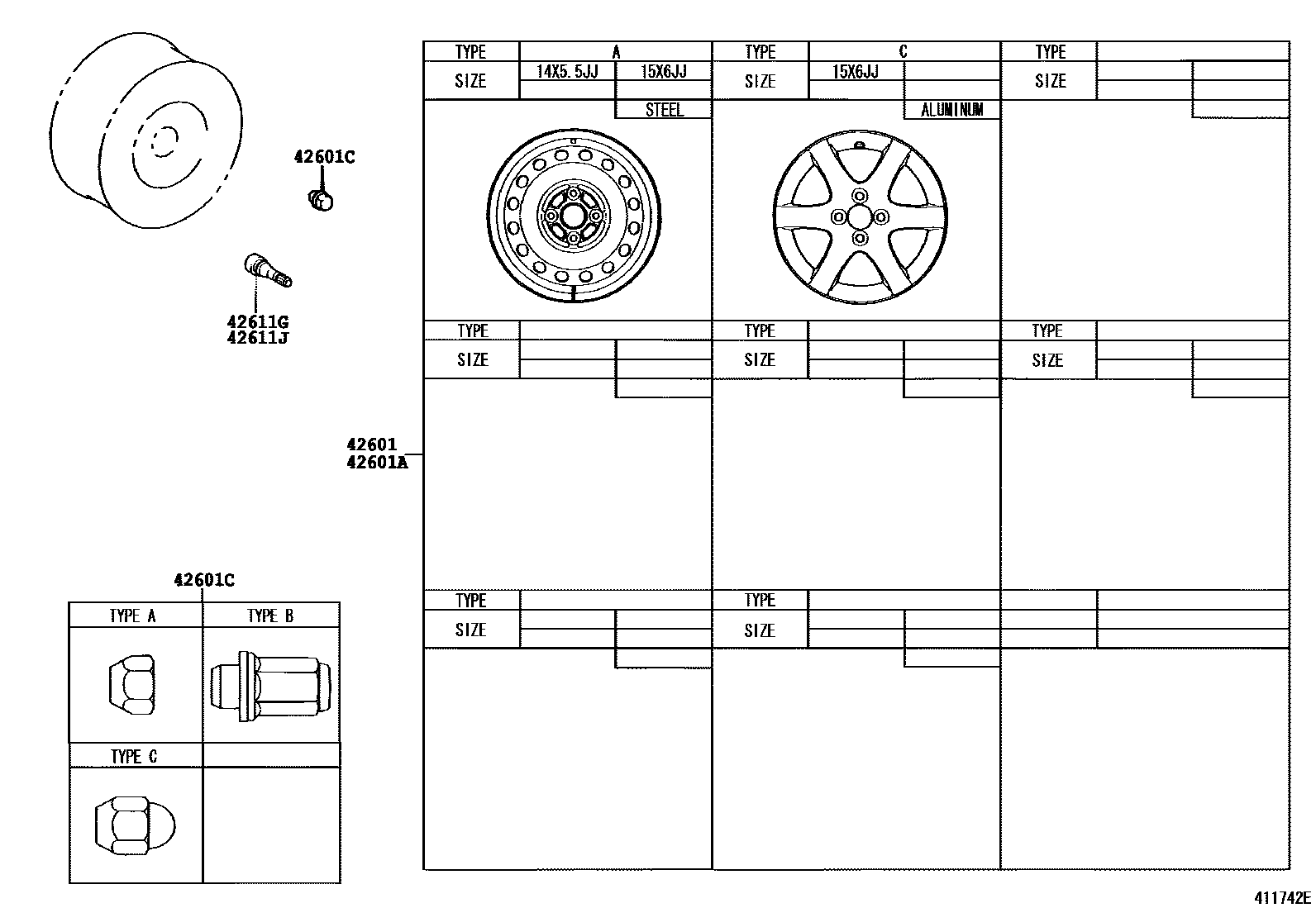

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-1A450×4iZZE120..JPP..TERRA200209-200405

14X5.5JJ, #,TYPE A:REFER TO ILLUSTRATION

main42611-1A480×4iCDE120..JPP; ZZE12#..JPP200209-200405

15X6JJ, #,TYPE A:REFER TO ILLUSTRATION

main42611-1A510×4iCDE120..JPP; ZZE12#..JPP200209-200405

15X6JJ, #,TYPE C:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-1A450iZZE120..JPP..TERRA200405

14X5.5JJ, #,TYPE A:REFER TO ILLUSTRATION

main42611-1A480iCDE120..JPP; ZZE12#..JPP200209-200405

15X6JJ, #,TYPE A:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iCDE120..JPP; ZZE12#..JPP200209-200405

TYPE A:REFER TO ILLUSTRATION

main90942-01058×16iCDE120..JPP; ZZE12#..JPP200209-200405

TYPE B:REFER TO ILLUSTRATION

main90942-01082×16iNDE120,ZZE12#..JPP..TERRA200405-200510

TYPE C:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iCDE120..JPP; ZZE12#..JPP200209-200405

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iCDE120..JPP; ZZE12#..JPP200209-200405

5 parts on this diagram · 3 diagrams in section
