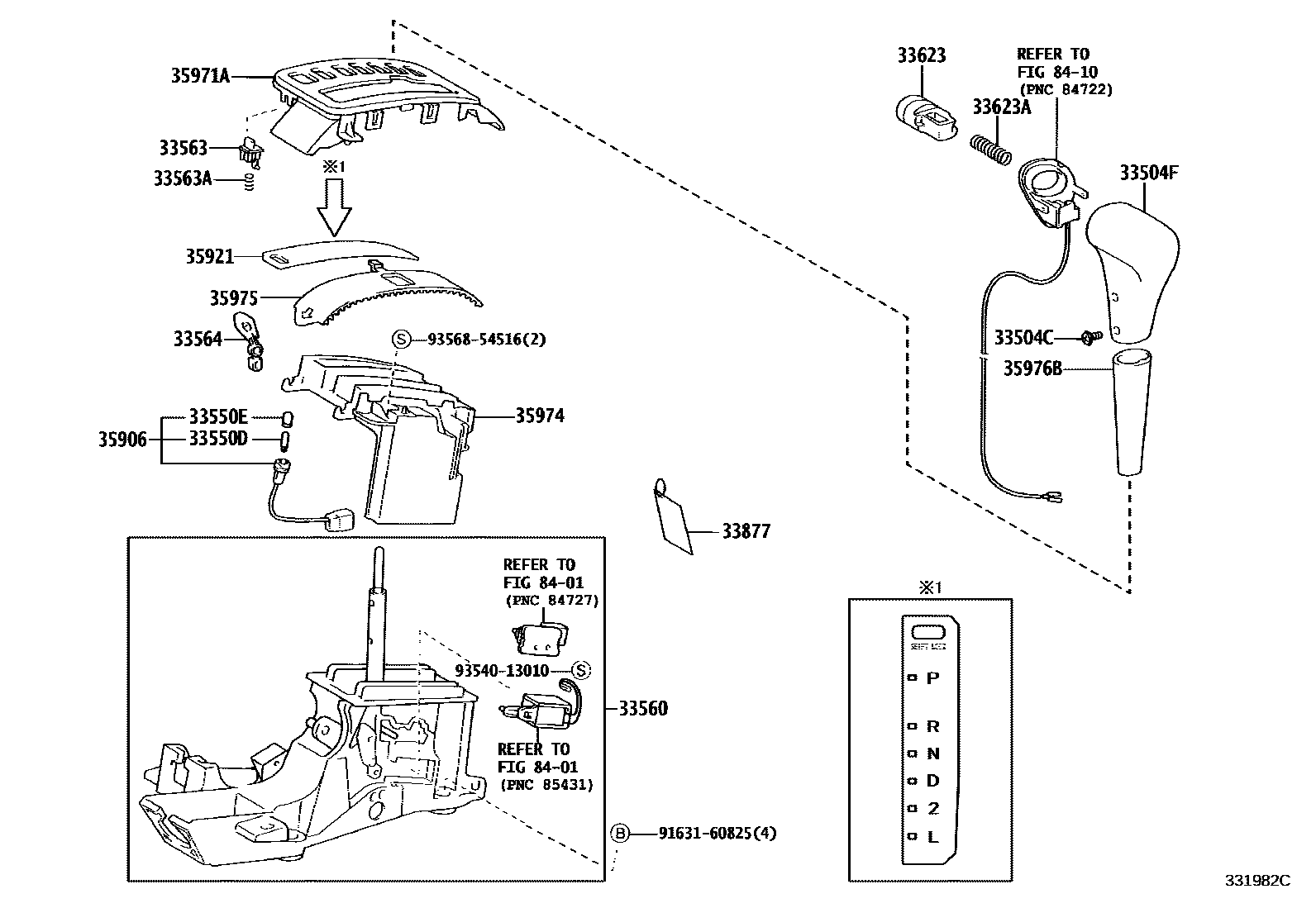

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40221×2iZZE121..JPP..4FC200209-200405

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-13010-B0iCDE120,ZZE12#..JPP..5F..TERRA200209-200405

DK.GRAY,TRIM1#,8#

main33504-13041-B0iCDE120,ZZE12#..JPP..5F..SOL; ZZE121..JPP..5F..TERRA200401-200405

DK.GRAY,TRIM0#,1#,CHROME PLATED; DK.GRAY,TRIM1#,8#,CHROME PLATED

main33504-13050-B2iCDE120,ZZE12#..JPP..5F..SOL200209-200310

DK.GRAY,TRIM0#,1#,WOOD GRAIN

main33504-13051-B2iCDE120,ZZE12#..JPP..5F..SOL; ZZE121..JPP..5F..TERRA200310-200405

DK.GRAY,TRIM0#,1#,WOOD GRAIN; DK.GRAY,TRIM1#,8#,WOOD GRAIN

main33504-13060-B2iCDE120,ZZE12#..JPP..5F..SOL200209-200310

DK.GRAY,TRIM0#,1#,CHROME PLATED

main33504-13061-B2iCDE120,ZZE12#..JPP..5F..SOL; ZZE121..JPP..5F..TERRA200310-200401

DK.GRAY,TRIM0#,1#,CHROME PLATED; DK.GRAY,TRIM1#,8#,CHROME PLATED

main33542-12310-B0iZZE121..JPP..RHD..4FC..TERRA200209-200405

DK.GRAY,TRIM1#,8#

main33542-12320-B0iZZE121..JPP..LHD..4FC..TERRA200405

DK.GRAY,TRIM1#

main33542-12330-B0iZZE121..JPP..RHD..4FC..TERRA200304-200405

LEATHER,DK.GRAY,TRIM1#,8#

main33542-12340-B0iZZE121..JPP..LHD..4FC..TERRA200304-200405

LEATHER,DK.GRAY,TRIM1#,8#

33550DBULB, POSITION INDICATOR LAMP

main35955-74010iZZE121..JPP..4FC200209-200405

12V 1.4W

33550ECAP, POSITION INDICATOR LAMP

main35956-52030iZZE121..JPP..4FC200209-200405

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-12050iZZE121..JPP..RHD..4FC200209-200309

main33560-12051iZZE121..JPP..RHD..4FC200309-200405

main33560-12060iZZE121..JPP..LHD..4FC200209-200309

main33560-12061iZZE121..JPP..LHD..4FC200309-200405

33563BUTTON, SHIFT LOCK RELEASE

main33563-12190iZZE121..JPP..RHD..4FC200209-200405

main33563-12210iZZE121..JPP..LHD..4FC200405

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-05055iZZE121..JPP..4FC200405

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-12130iZZE121..JPP..RHD..4FC200209-200405

main33564-12140iZZE121..JPP..LHD..4FC200405

33623BUTTON, SHIFT LEVER KNOB

main33623-12160iZZE121..JPP..LHD..4FC200405

main33623-12190iZZE121..JPP..RHD..4FC200209-200405

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-06082iZZE121..JPP..4FC200209-200405

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-50030iZZE121..JPP..4FC200209-200405

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-12200iZZE121..JPP..RHD..4FC200209-200405

main35906-12210iZZE121..JPP..LHD..4FC200405

35921PLATE, CONTROL POSITION INDICATOR

main35921-12470iZZE121..JPP..LHD..4FC200209-200405

main35921-12480iZZE121..JPP..RHD..4FC200209-200405

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-12400iZZE121..JPP..LHD..4FC200405

main35971-12410iZZE121..JPP..RHD..4FC200405

35974HOUSING, POSITION INDICATOR, LOWER

main35974-12240iZZE121..JPP..RHD..4FC200405

main35974-12250iZZE121..JPP..LHD..4FC200405

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-12290iZZE121..JPP..RHD..4FC200209-200405

main35975-12300iZZE121..JPP..LHD..4FC200209-200405

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-12100iZZE121..JPP..LHD..4FC200209-200405

main35976-12110iZZE121..JPP..RHD..4FC200405

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9163160825

main91631-60825

9354013010

main93540-13010

9356854516

main93568-54516

22 parts on this diagram · 6 diagrams in section
