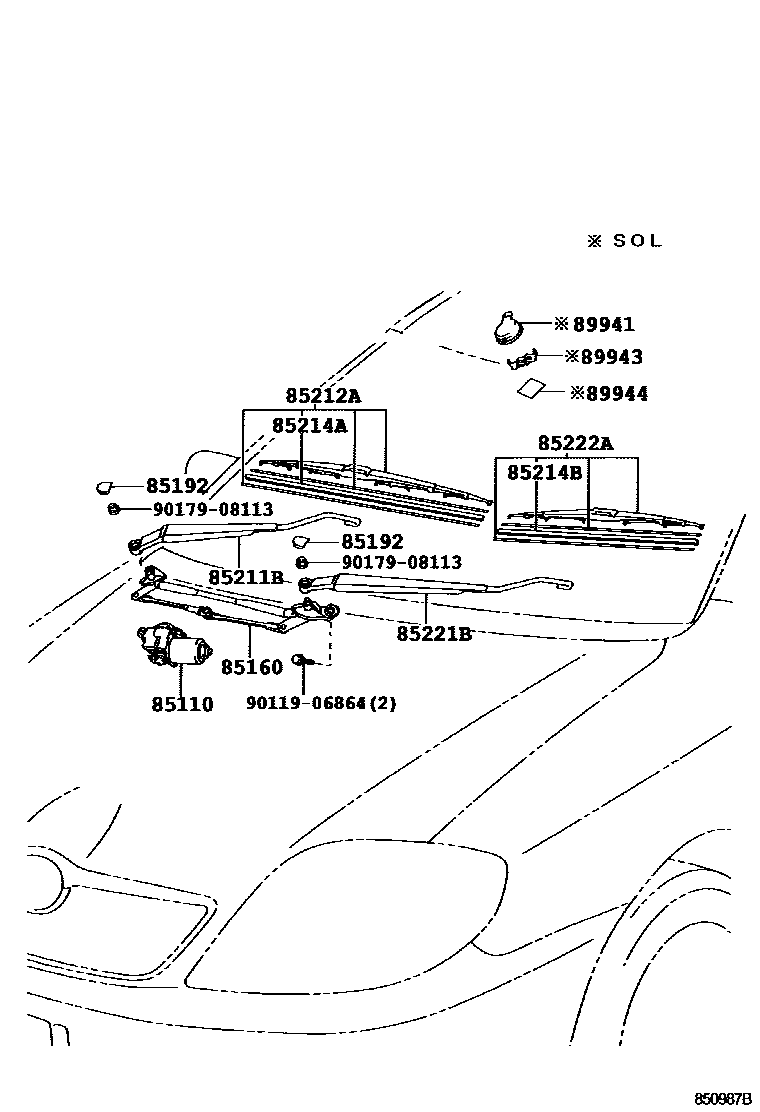

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-1A040iCDE120,ZZE12#..JPP..LHD..WG; ZZE12#..JPP..SED200110-200405

main85110-1A050iZZE12#..JPP..RHD200405

85160LINK ASSY, WINDSHIELD WIPER

main85150-1A020iCDE120,ZZE121..JPP..RHD..WG200110-200405

main85150-1A030iCDE120,ZZE12#..JPP..LHD..WG; ZZE12#..JPP..SED200110-200405

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2iCDE120,ZZE12#..JPP..WG; ZZE12#..JPP..SED200110-200405

85211BARM, FRONT WIPER, RH

main85211-12400iCDE120,ZZE121..JPP..RHD..WG200110-200405

main85211-12410iCDE120,ZZE12#..JPP..LHD..WG; ZZE12#..JPP..SED200110-200405

main85211-12470iZZE12#..JPP..RHD200405

85212ABLADE, FR WIPER, RH

main85212-12370iCDE120,ZZE12#..JPP..LHD..WG; ZZE12#..JPP..SED200110-200405

main85212-12371iNDE120,ZZE12#..JPP..LHD200608

main85212-12390iZZE12#..JPP..RHD200405

main85212-33180iCDE120,ZZE121..JPP..RHD..WG200110-200405

85214ARUBBER, WIPER, RH

main85214-50060iCDE120,ZZE12#..JPP..LHD..WG; ZZE12#..JPP..SED200110-200405

main85214-50061iNDE120,ZZE12#..JPP..LHD200608

main85214-50100iZZE12#..JPP..RHD200405

85214BRUBBER, WIPER, LH

main85214-50060iCDE120,ZZE121..JPP..RHD..WG200110-200405

main85214-50061iZZE12#..JPP..RHD200608

main85214-50100iCDE120,ZZE12#..JPP..LHD..WG; ZZE12#..JPP..SED200110-200405

85221BARM, FRONT WIPER, LH

main85221-12370iCDE120,ZZE121..JPP..RHD..WG200110-200405

main85221-12380iCDE120,ZZE12#..JPP..LHD..WG; ZZE12#..JPP..SED200110-200405

main85221-12420iZZE12#..JPP..RHD200405

85222ABLADE, FR WIPER, LH

main85222-12780iCDE120,ZZE121..JPP..RHD..WG200110-200405

main85222-12800iZZE12#..JPP..RHD200405-200607

main85222-12801iZZE12#..JPP..RHD200608

main85222-33200iCDE120,ZZE12#..JPP..LHD..WG; ZZE12#..JPP..SED200110-200405

89941SENSOR, RAIN

main89941-05010iZZE12#..JPP..SOL200405

89943COVER, RAIN SENSOR

main89943-05010iZZE12#..JPP..SOL200405

89944TAPE, RAIN SENSOR

main89944-05010iZZE12#..JPP..SOL200405-200610

9011906864

main90119-06864

9017908113

main90179-08113

14 parts on this diagram · 1 diagram in section
