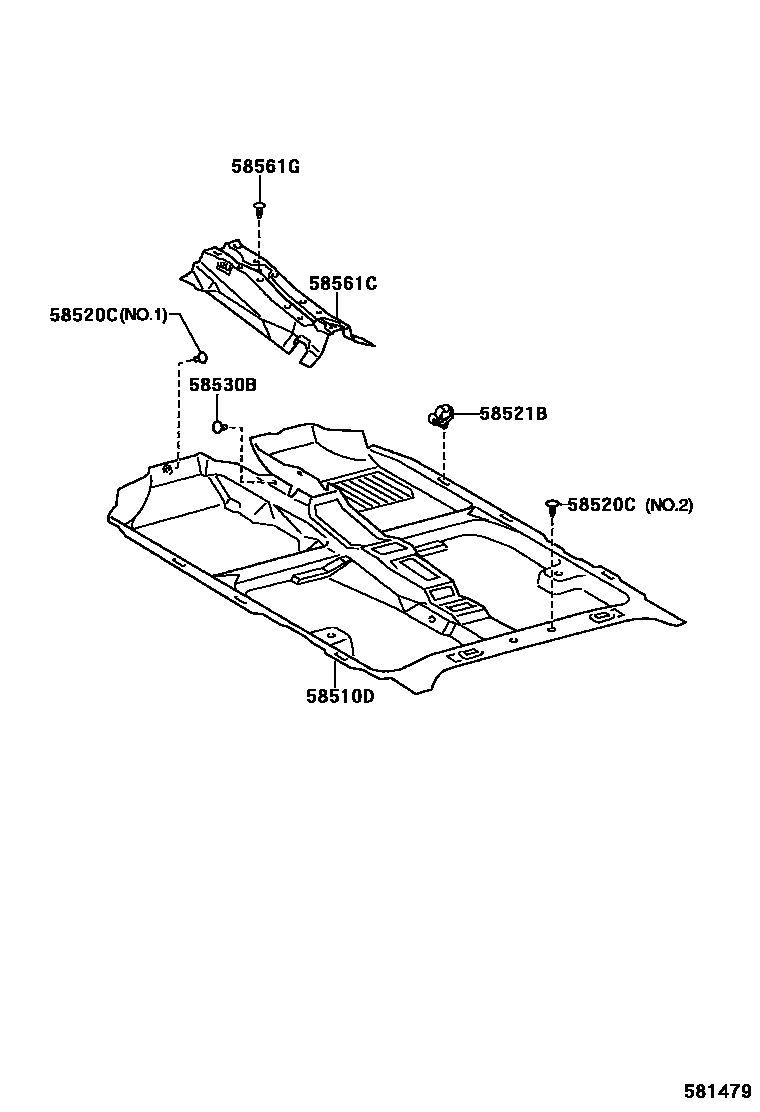

MAT & CARPET

0001 1 0002 1

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06001-B2iCDE120,ZZE12#..JPP200110-200405

STONE,TRIM1#,NO.1

main90467-06001-C0iNDE120,ZZE12#..JPP200405

BLACK,TRIM1#,NO.1

main90467-07049-C0×2iNDE120,ZZE12#..JPP200405

BLACK,NO.2

58521BHOOK, FLOOR CARPET

main58521-12130×6iCDE120,ZZE12#..JPP200110-200405

main58521-13020×6iNDE120,ZZE12#..JPP200405

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07080-C0×2iZZE12#..JPP..SED200311-200312

BLACK,TRIM1#

main90467-07207-C0×2iCDE120,ZZE12#..JPP..WG; ZZE12#..JPP..SED200404-200405

BLACK,TRIM1#

main90467-09118×4iZZE12#..JPP..SED200110-200311

58561CSILENCER, FRONT FLOOR, NO.1

main58561-12020iZZE12#..JPP..SED200201-200405

main58561-12030iZZE12#..JPP..SED200110-200201

58561GCLIP(FOR FRONT FLOOR SILENCER)

main90467-06020-C0×2iCDE120,ZZE12#..JPP200110-200405

BLACK,TRIM1#

5 parts on this diagram · 2 diagrams in section
