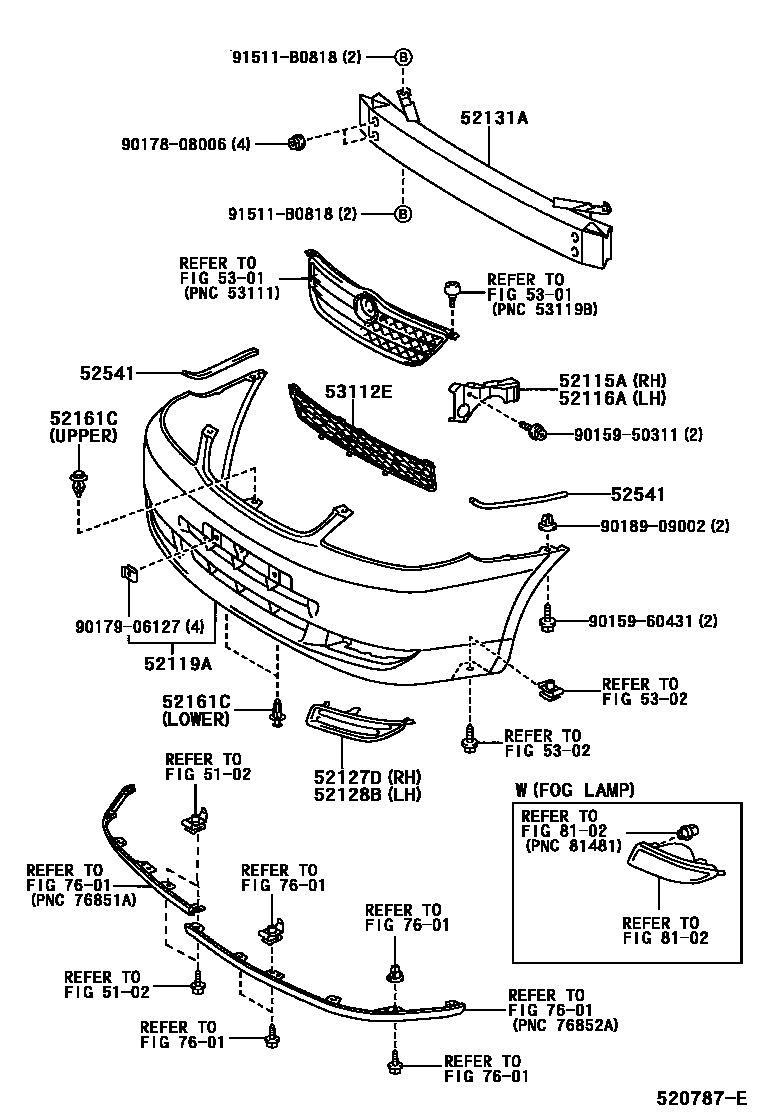

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12380iCDE120,ZZE12#..JPP200110-200405

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12340iCDE120,ZZE12#..JPP200110-200405

52119ACOVER, FRONT BUMPER

main52119-12930iNDE120,ZZE12#..JPP200405

main52119-12931iNDE120,ZZE12#..JPP..LHD200405

W(HEAD LAMP CLEANER)

main52119-13907iCDE120,ZZE12#..JPP..LHD..WG200110-200405

W(FOG LAMP & HEADLAMP CLEANER) OR W(HEADLAMP CLEANER)

main52119-1E920iCDE120,ZZE12#..JPP200110-200405

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-12150iNDE120,ZZE12#..JPP200405

W(FOG LAMP)

main52127-12170iCDE120,ZZE12#..JPP200110-200405

main52127-12200iNDE120,ZZE12#..JPP200405

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-12070iCDE120,ZZE12#..JPP200110-200405

52131AREINFORCEMENT, FRONT BUMPER

main52021-13020iCDE120,ZZE12#..JPP200110-200405

52161CPIECE, FRONT BUMPER

main52161-16010×3iCDE120,ZZE12#..JPP200206-200405

main90467-09093iCDE120,ZZE12#..JPP200110-200206

UPPER

52541PROTECTOR, FRONT BUMPER

main52541-12020×2iCDE120,ZZE12#..JPP200110-200405

5301RADIATOR GRILLE

→ Go to FIG 53-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-02050iNDE120,ZZE12#..JPP..LHD200405

main53112-12110iCDE120,ZZE12#..JPP200110-200405

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8102FOG LAMP

→ Go to FIG 81-02

9015950311

main90159-50311

9015960431

main90159-60431

9017808006

main90178-08006

9017906127

main90179-06127

9018909002

main90189-09002

91511B0818

main91511-B0818

20 parts on this diagram · 2 diagrams in section
