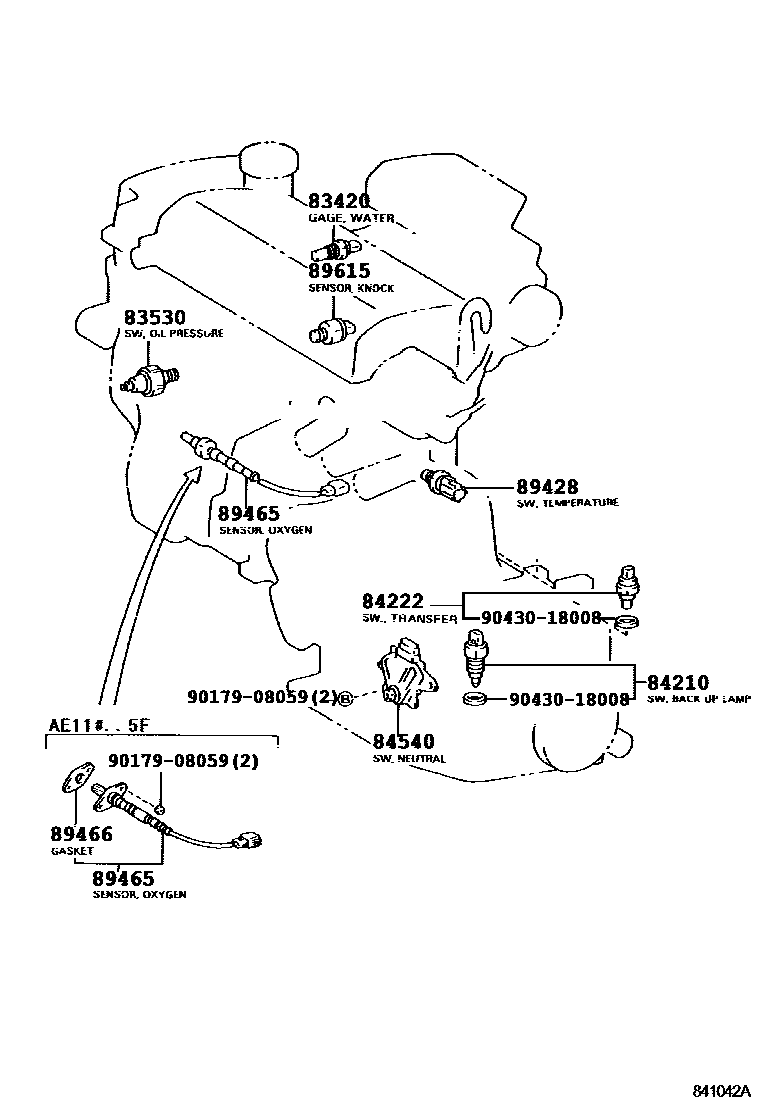

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE & TRANSMISSION 0007 1ENGINE & TRANSMISSION 0008 1ENGINE ROOM 0009 1INSTRUMENT PANEL SWITCH 0010 1INSTRUMENT PANEL SWITCH 0011 1INSTRUMENT PANEL SWITCH 0012 1INSTRUMENT PANEL SWITCH 0013 1COWL 0014 1COWL 0015 1COMBINATION SWITCH 0016 1COMBINATION SWITCH 0017 1ROOF,FLOOR,DOOR & LUGGAGE 0018 1ROOF,FLOOF,DOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-12030iWZE110200001-200107

main83420-16020iEE110199704-199910

main83420-20020iCE110199704-199910

main83420-20040iAE115199910-200107

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-02040iWZE110200001-200107

main83530-28020iAE115..SOL;EE110,ZZE11#199803-200109

DENSO

main83530-30090iAE11#,EE11#; EE110199704-199803

main83530-30100iCE110199704-199803

main83530-60010iCDE110200008-200109

main83530-60020iAE115..SOL;EE110,ZZE11#199803-200109

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE115..SOL;CDE110,EE110,ZZE11#..5F199704-200109

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iAE115199910-200107

84540SWITCH ASSY, NEUTRAL START

main84540-12230iZZE112..4FC199910-200109

main84540-16050iAE111,EE111..ATM199704-199910

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAE11#,EE11#199704-199910

main89428-33010iCDE110,WZE110200001-200109

89465SENSOR, OXYGEN

main89465-02040iZZE111199910-200109

FRONT

main89465-02050iZZE111199910-200109

REAR

main89465-12520iAE111..4FC199704-199910

main89465-12540iZZE112199910-200109

FRONT

main89465-12550iZZE112199910-200109

REAR

main89465-12580iAE115199910-200107

REAR

main89465-19665iAE115199704-199910

main89465-19675iEE111199704-199910

main89465-19745iAE111..5F199704-199910

main89465-19755iAE115199910-200107

FRONT

89466GASKET, OXYGEN SENSOR

main89466-12020iAE111,EE111..3FC,5F199704-199910

main89466-20020iAE115199704-199910

89615SENSOR, KNOCK CONTROL

main89615-02010iZZE111199910-200109

main89615-12030iAE11#199704-199809

TOYOTA

main89615-12090iZZE112199910-200109

main89615-22030iAE11#,EE111199704-199909

MATSUSHITA

main89615-22040iEE111199704-199909

DENSO

main89615-22050iAE115199910-200107

TOYOTA

main89615-52010iAE11#; EE111199909-199910

MATSUSHITA

9017908059

main90179-08059

9043018008

main90430-18008

11 parts on this diagram · 18 diagrams in section
