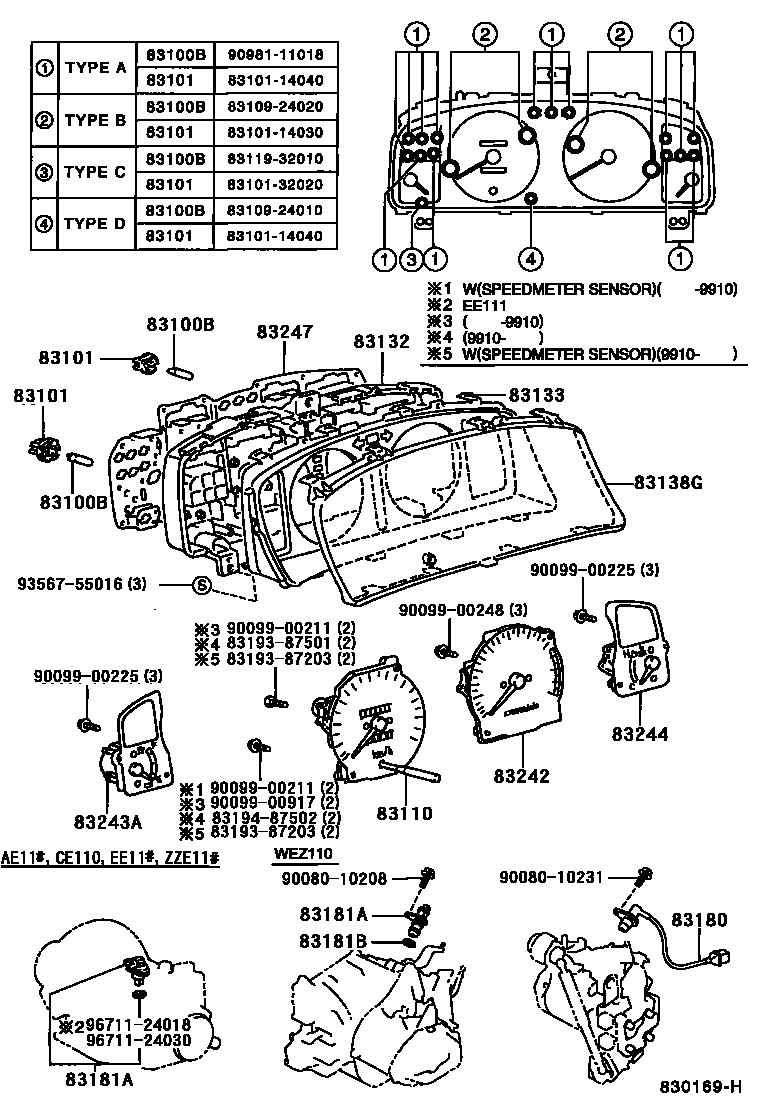

METER

0001 1W(TACHOMETER) 0002 1W/O(TACHOMETER) 0003 1W/O(SPEEDMETER SENSOR) 0004 1

83100BBULB, COMBINATION METER, NO.1

main83109-24010iAE11#..LHD;EE111..LHD..3FC199704-199910

12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION

main83109-24020×4iAE115..SOL;EE110,WZE110,ZZE11#199704-200109

12V3.4W W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION

main83119-32010iCDE110200008-200109

14V 3.0W,TYPE C:REFER TO ILLUSTRATION

main90010-03038iCDE110200008-200109

14V 1.4W,TYPE D:REFER TO ILLUSTRATION

main90010-03039iCDE110200008-200109

14V 3.4W,TYPE B:REFER TO ILLUSTRATION

main90981-11018×12iAE111..RHD;EE111..RHD..3FC;EE111..5F..(STD,TERRA); CE110;AE11#..LHD;EE111..LHD..3FC; EE110199704-199910

12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×4iAE11#,CE110,EE11#199704-199910

TYPE B:REFER TO ILLUSTRATION

main83101-14040×13iAE11#..LHD;EE111..LHD..3FC; AE111..RHD;EE111..RHD..3FC;EE111..5F..(STD,TERRA); CE110; EE110199704-199910

TYPE A OR TYPE D:REFER TO ILLUSTRATION

main83101-32020iAE11#,CE110,EE11#199704-199910

TYPE C:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83220-12090iEE111..RHD..5F199711-199910

KM/H,W(TACHOMETER)

main83220-12100iAE111,EE111..RHD..TERRA199704-199910

W(TACHOMETER)

main83220-12110iEE110199704-199910

main83220-12120iCE110..RHD199711-199910

KM/H,W(TACHOMETER)

main83220-12130iCE110..RHD199704-199910

W(TACHOMETER)

main83220-12140iEE111..LHD..3FC;AE11#..LHD..TERRA199704-199910

W(TACHOMETER)

main83220-12150iEE111..RHD..5F199711-199910

KM/H

main83220-12160iAE111,EE111..RHD..TERRA199704-199910

main83220-12180iCE110..RHD199711-199910

KM/H

main83220-12190iCE110..RHD199704-199910

main83220-12200iEE111..LHD..3FC;AE11#..LHD..TERRA199704-199910

main83220-12340iEE111..LUNA199808-199910

main83220-12350iAE111..RHD..LUNA199808-199910

main83220-12380iAE111..LHD..LUNA199808-199910

main83220-12390iCE110..LUNA199808-199910

main83220-12460iAE115;ZZE112..4FC..SOL199910-200109

main83220-12470iZZE11#..5F..TERRA199910-200109

KM/H,W(TACHOMETER)

main83220-12480iZZE112..4FC..TERRA199910-200109

W(TACHOMETER)

main83220-12490iZZE11#..5F..SOL199910-200109

KM/H

main83220-12500iZZE11#..RHD..TERRA199910-200107

W(TACHOMETER)

main83220-12520iZZE112..RHD..SOL199910-200107

main83220-12540iWZE110..TERRA200001-200107

KM/H,W(TACHOMETER)

main83220-12550iWZE110..SOL200001-200107

main83220-12560iWZE110..RHD200001-200107

W(TACHOMETER)

main83220-12570iZZE11#..5F..(STD,TERRA)199910-200109

KM/H

main83220-12580iZZE112..4FC..TERRA199910-200109

main83220-12590iZZE11#..RHD..TERRA199910-200107

main83220-12610iWZE110..TERRA200001-200107

KM/H

main83220-12620iWZE110..RHD200001-200107

main83220-12630iEE110199910-200107

main83220-12660iCDE110..LHD..TERRA200008-200109

main83220-12670iCDE110..SOL200008-200109

main83220-12690iCDE110..RHD200008-200107

83132CASE, COMBINATION METER

main83841-12610iEE110,ZZE11#..5F..(SOL,TERRA)199910-200109

W(TACHOMETER)

main83841-12640iZZE112..4FC;AE115,WZE110199910-200109

W(TACHOMETER)

main83841-12780iEE111..LHD..3FC;AE11#..LHD..TERRA199704-199910

W(TACHOMETER)

main83841-12800iEE110; EE111..RHD..3FC;AE111..RHD..TERRA;CE110,EE11#..5F..TERRA199704-199910

W(TACHOMETER)

main83841-1A050iAE111..RHD;CE110,EE111..5F;EE111..RHD..3FC199704-199808

main83841-1A051iEE111..RHD..3FC;AE111..RHD..TERRA;EE111..5F..(STD,TERRA)199808-199910

main83841-1A081iCE110..TERRA199808-199910

main83841-1A100iAE11#..LHD;EE111..LHD..3FC199704-199808

main83841-1A101iEE111..LHD..3FC;AE11#..LHD..TERRA199808-199910

main83841-1E310iZZE11#..5F..(STD,TERRA)199910-200109

main83841-1E320iZZE112..4FC..TERRA199910-200109

main83841-1E350iWZE110..TERRA200001-200107

83133PLATE, COMBINATION METER, NO.1

main83811-12610iCDE110..TERRA200008-200109

main83811-12720iAE11#,CE110,EE111..STD,TERRA199704-199910

main83811-12860iAE115,CDE110,WZE110,ZZE11#..SOL199910-200109

83138GGLASS, COMBINATION METER

main83852-12700iAE11#,CE110,EE11#199704-199910

83180DETECTOR ASSY, REVOLUTION

main83180-02010iWZE110200001-200107

83181ASENSOR, SPEEDOMETER

main83181-02010iWZE110200001-200107

main83181-12020iAE111..LHD199704-199910

main83181-12030iCDE110200008-200109

main83181-12040iEE111..LHD..3FC199704-199910

main83181-12050iAE115199704-199910

83181BRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iCDE110200008-200109

mainSU00100416iWZE110200001-200107

83242TACHOMETER ASSY, ENGINE

main83881-12840iAE11#,EE110..TERRA; EE110199704-199910

main83881-12860iEE111..LUNA199808-199910

main83881-12890iCE110..TERRA199704-199910

main83881-1A840iAE111..LUNA199808-199910

main83881-1A850iEE111..TERRA199704-199910

main83881-1A870iCE110..LUNA199808-199910

main83881-1E160iEE110199910-200107

main83881-1E170iAE115199910-200107

main83881-1E180iZZE11#..TERRA199910-200109

main83881-1E210iZZE11#..SOL199910-200109

main83881-1E280iWZE110..TERRA200001-200107

main83881-1E290iWZE110..SOL200001-200107

main83881-1H190iCDE110..TERRA200008-200109

main83881-1H200iCDE110..SOL200008-200109

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-12700iAE11#,CE110,EE111..STD,TERRA199704-199910

main83882-12840iAE111..RHD;CE110,EE11#..TERRA; EE110199704-199808

W(TACHOMETER)

main83882-12851iAE11#,EE11#..TERRA; EE110199808-199910

W(TACHOMETER)

main83882-12861iAE111,EE111..LUNA199808-199910

main83882-12891iCE110..TERRA199808-199910

W(TACHOMETER)

main83882-1A040iAE11#..LHD199704-199808

W(TACHOMETER)

main83882-1A871iCE110..LUNA199808-199910

main83882-1E160iEE110,ZZE11#..TERRA199910-200109

W(TACHOMETER)

main83882-1E170iAE115,ZZE11#..SOL199910-200109

main83882-1E280iCDE110..TERRA200008-200109

main83882-1E290iCDE110,WZE110..SOL200001-200109

main83882-1E310iWZE110,ZZE11#..STD,TERRA199910-200109

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-12840iAE11#,CE110,EE11#..TERRA; EE110199704-199910

main83883-12860iAE111,CE110,EE111..LUNA199808-199910

main83883-1E160iCDE110,EE110,ZZE11#..TERRA199910-200109

main83883-1E170iAE115,CDE110,ZZE11#..SOL199910-200109

main83883-1E280iWZE110..TERRA200001-200107

main83883-1E290iWZE110..SOL200001-200107

83247PLATE, METER CIRCUIT

main83861-12840iAE111..RHD;EE111..RHD..3FC;EE11#..5F..TERRA; EE110199704-199808

W(TACHOMETER)

main83861-12851iEE110; EE111..LUNA;AE111..RHD..LUNA; EE111..RHD..3FC;EE11#..5F..TERRA;AE111..RHD..TERRA199808-199910

W(TACHOMETER)

main83861-12890iCE110199704-199808

W(TACHOMETER)

main83861-12891iCE110..LUNA; CE110..TERRA199808-199910

W(TACHOMETER)

main83861-1A040iAE11#..LHD;EE111..LHD..3FC199704-199808

W(TACHOMETER)

main83861-1A041iAE111..LHD..LUNA; EE111..LHD..3FC;AE11#..LHD..TERRA199808-199910

W(TACHOMETER)

main83861-1A080iEE111..RHD..3FC;AE111..RHD..TERRA;CE110,EE111..5F..(STD,TERRA)199704-199910

main83861-1A100iEE111..LHD..3FC;AE11#..LHD..TERRA199704-199910

main83861-1E160iEE110,ZZE11#..5F..(SOL,TERRA)199910-200109

W(TACHOMETER)

main83861-1E170iAE115;ZZE112..4FC199910-200109

W(TACHOMETER)

main83861-1E280iWZE110200001-200107

W(TACHOMETER)

main83861-1E310iZZE11#..5F..(STD,TERRA)199910-200109

main83861-1E320iZZE112..4FC..TERRA199910-200109

main83861-1E350iWZE110..TERRA200001-200107

main83861-1H190iCDE110200008-200109

8319387203

main83193-87203

8319387501

main83193-87501

8319487502

main83194-87502

9008010208

main90080-10208

9008010231

main90080-10231

9009900211

main90099-00211

9009900225

main90099-00225

9009900248

main90099-00248

9009900917

main90099-00917

9356755016

main93567-55016

9671124018

main96711-24018

9671124030

main96711-24030

25 parts on this diagram · 4 diagrams in section
