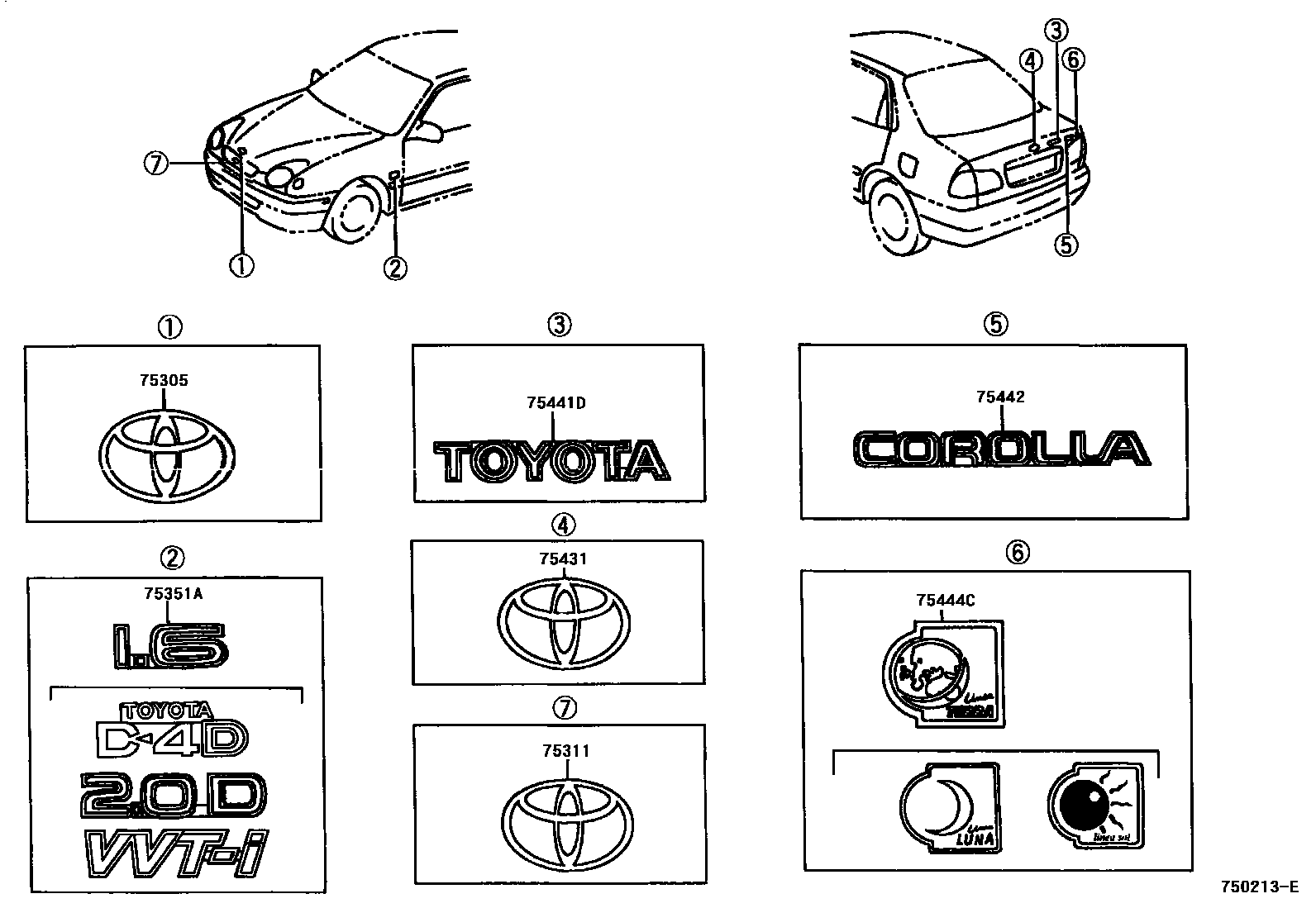

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75305EMBLEM, HOOD

main75331-12100iAE11#,CE110,EE11#; EE110199704-199910

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-1E010iAE115,CDE110,EE110,WZE110,ZZE11#199910-200109

75351AEMBLEM, FRONT FENDER

main75351-12040×2iZZE112199910-200008

main75351-12050×2iCE110199704-199910

main75351-12100iCDE110200008-200109

RH

main75351-12120×2iWZE110200001-200107

main75351-12130iZZE11#200008-200109

RH

main75351-12140iCDE110200008-200109

LH

main75351-12150iZZE11#200008-200109

LH

main75351-13010×2iAE115199910-200107

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75431-12110iCDE110,EE110,WZE110,ZZE11#..SED199704-200109

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-12830iAE111,CE110,EE11#..SED199704-199910

TOYOTA

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-1A370iCDE110,EE110,WZE110,ZZE11#..SED199704-200109

COROLLA

75444CPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.4

main75444-1A290iAE111,EE111..SED..LUNA199808-199910

LINEA LUNA

main75444-1A450iAE111,CE110,EE11#..SED..TERRA199704-199910

TERRA

main75444-1A650iCDE110,ZZE11#..SED..SOL199910-200109

LINEA SOL

7 parts on this diagram · 2 diagrams in section
