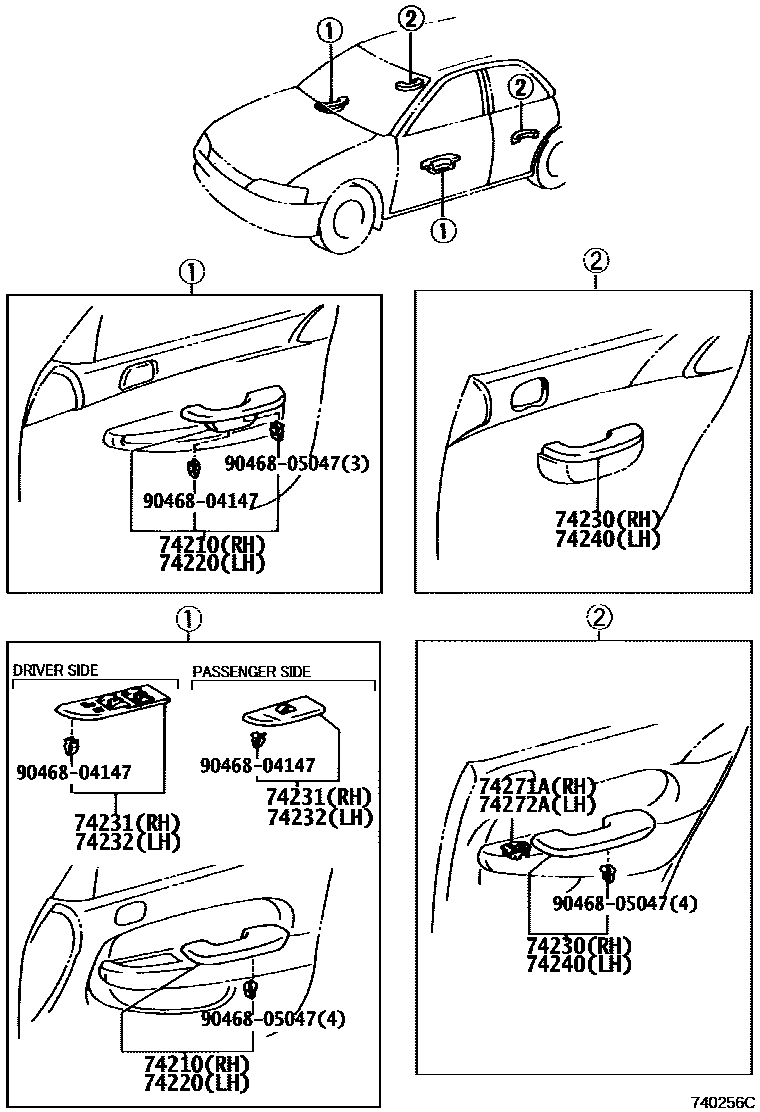

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
W(POWER WINDOW),IVORY,TRIM0#
W(POWER WINDOW),SHADOW GRAY,TRIM16
W(POWER WINDOW),MD.CHARCOAL,TRIM1#; W(POWER WINDOW),MD.CHARCOAL,TRIM10
W(MANUAL WINDOW),IVORY,TRIM0#
SHADOW GRAY,TRIM12; W(MANUAL WINDOW),SHADOW GRAY,TRIM12
main74210-12230-B1iAE11#,CE110,EE111..WG..TERRA; AE111,CE110,EE11#..SED..TERRA; AE111,CE110,EE111..LHD..WG..LUNA; AE111,EE111..SED..LUNA; EE110199808-199901
MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM10; W(MANUAL WINDOW),MD.CHARCOAL,TRIM1#; W(MANUAL WINDOW),MD.CHARCOAL,TRIM10
MD.CHARCOAL,TRIM1#
74220ARMREST ASSY, FRONT, LH
W(POWER WINDOW),IVORY,TRIM0#
W(POWER WINDOW),SHADOW GRAY,TRIM12
W(POWER WINDOW),MD.CHARCOAL,TRIM1#; W(POWER WINDOW),MD.CHARCOAL,TRIM10
W(MANUAL WINDOW),IVORY,TRIM0#
SHADOW GRAY,TRIM12; W(MANUAL WINDOW),SHADOW GRAY,TRIM12
W(MANUAL WINDOW),MD.CHARCOAL,TRIM10
MD.CHARCOAL,TRIM1#
74230ARMREST ASSY, REAR, RH
W(POWER WINDOW),IVORY,TRIM0#
W(POWER WINDOW),SHADOW GRAY,TRIM12
W(POWER WINDOW),MD.CHARCOAL,TRIM1#; W(POWER WINDOW),MD.CHARCOAL,TRIM10
W(MANUAL WINDOW),IVORY,TRIM0#
SHADOW GRAY,TRIM12; W(MANUAL WINDOW),SHADOW GRAY,TRIM12
main74210-12230-B1iAE11#,CE110,EE111..WG..TERRA; AE111,CE110,EE11#..SED..TERRA; AE111,CE110,EE111..WG..LUNA; AE111,EE111..SED..LUNA; EE110199808-199901
MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM10; W(MANUAL WINDOW),MD.CHARCOAL,TRIM1#; W(MANUAL WINDOW),MD.CHARCOAL,TRIM10
MD.CHARCOAL,TRIM1#
74231PANEL, FRONT ARMREST BASE, UPPER RH
W(POWER WINDOW),SHADOW GRAY,TRIM12
W(POWER WINDOW),MD.CHARCOAL,TRIM10
IVORY,TRIM0#
W(POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM10
SHADOW GRAY,TRIM1#; W(POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM12
IVORY,TRIM0#
main74231-12280-B0iAE11#,CE110,EE111..LHD..WG; AE111,CE110,EE11#..LHD..SED..TERRA; EE110199808-199901
MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM10
SHADOW GRAY,TRIM12
SPECIAL SPEC(ISRAEL) & W(POWER WINDOW),MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
WOOD GRAIN,W(POWER WINDOW),GRAY,TRIM10
WOOD GRAIN,GREEN,TRIM0#
WOOD GRAIN,BLUE,TRIM1#
LIGHT SILVER,TRIM11,16
LIGHT SILVER,TRIM11,16
W(POWER WINDOW---FRONT ONLY),LIGHT SILVER,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
IVORY,TRIM0#
SHADOW GRAY,TRIM12
MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM10
IVORY,TRIM0#
W(POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM1#
SHADOW GRAY,TRIM12
SPECIAL SPEC(ISRAEL) & W(POWER WINDOW),MD.CHARCOAL,TRIM1#
W(POWER WINDOW = FRONT & REAR),SHADOW GRAY,TRIM12
WOOD GRAIN,GRAY,TRIM10
WOOD GRAIN,W(POWER WINDOW---FRONT ONLY),GRAY,TRIM1#
WOOD GRAIN,W(POWER WINDOW---FRONT ONLY),GREEN,TRIM0#
WOOD GRAIN,W(POWER WINDOW---FRONT ONLY),BLUE,TRIM10
WOOD GRAIN & W(POWER WINDOW--FRONT & REAR),GREEN,TRIM0#
WOOD GRAIN & W(POWER WINDOW--FRONT & REAR),BLUE,TRIM1#; WOOD GRAIN & W(POWER WINDOW--FRONT & REAR),BLUE,TRIM10
W(POWER WINDOW),LIGHT SILVER,TRIM12
LIGHT SILVER,TRIM11,16
W(POWER WINDOW---FRONT ONLY),LIGHT SILVER,TRIM12
74240ARMREST ASSY, REAR, LH
W(POWER WINDOW),IVORY,TRIM0#
W(POWER WINDOW),SHADOW GRAY,TRIM12
W(POWER WINDOW),MD.CHARCOAL,TRIM1#; W(POWER WINDOW),MD.CHARCOAL,TRIM10
W(MANUAL WINDOW),IVORY,TRIM0#
SHADOW GRAY,TRIM12; W(MANUAL WINDOW),SHADOW GRAY,TRIM1#
W(MANUAL WINDOW),MD.CHARCOAL,TRIM11
MD.CHARCOAL,TRIM1#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
IVORY,TRIM0#
SHADOW GRAY,TRIM16
MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM10
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
IVORY,TRIM0#
SHADOW GRAY,TRIM12
MD.CHARCOAL,TRIM10
9046804147
main90468-04147
9046805047
main90468-05047
10 parts on this diagram · 2 diagrams in section
