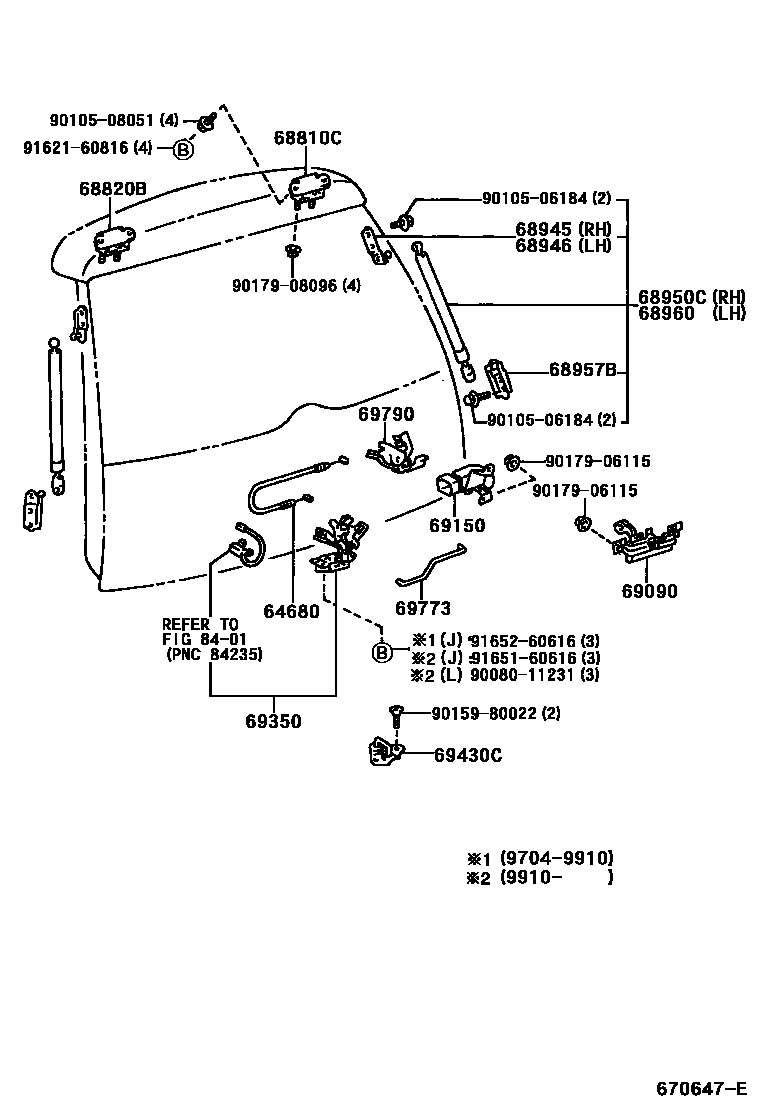

BACK DOOR LOCK & HANDLE

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-13050iAE115,CDE110,WZE110,ZZE11#..WG199910-200109

68810CHINGE ASSY, BACK DOOR, RH

main68810-21040iAE115,CDE110,WZE110,ZZE11#..WG199910-200109

68820BHINGE ASSY, BACK DOOR, LH

main68810-21040iAE115,CDE110,WZE110,ZZE11#..WG199910-200109

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-13010iAE115,CDE110,WZE110,ZZE11#..WG199910-200109

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-13010iAE115,CDE110,WZE110,ZZE11#..WG199910-200109

68950CSTAY ASSY, BACK DOOR, RH

main68950-80043iAE115,CDE110,WZE110,ZZE11#..WG199910-200109

68957BBRACKET, BACK DOOR STAY, LOWER

main68957-13030×2iAE115,CDE110,WZE110,ZZE11#..WG199910-200109

68960STAY ASSY, BACK DOOR, LH

main68960-19595iAE115,CDE110,WZE110,ZZE11#..WG199910-200109

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-13030iAE115,CDE110,WZE110,ZZE11#..WG199910-200109

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-13030iAE115,CDE110,WZE110,ZZE11#..WG199910-200109

69350LOCK ASSY, BACK DOOR

main69301-13030iAE115,CDE110,WZE110,ZZE11#..WG199910-200109

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-12250iAE115,CDE110,WZE110,ZZE11#..WG199910-200109

69773LINK, BACK DOOR LOCK CONTROL, NO.1

main69773-13010iAE115,CDE110,WZE110,ZZE11#..WG199910-200109

69790CONTROL ASSY, BACK DOOR LOCK

main69790-13040iAE115,CDE110,WZE110,ZZE11#..WG199910-200109

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011231

main90080-11231

9010506184

main90105-06184

9010508051

main90105-08051

9015980022

main90159-80022

9017906115

main90179-06115

9017908096

main90179-08096

9162160816

main91621-60816

9165160616

main91651-60616

9165260616

main91652-60616

24 parts on this diagram · 1 diagram in section
