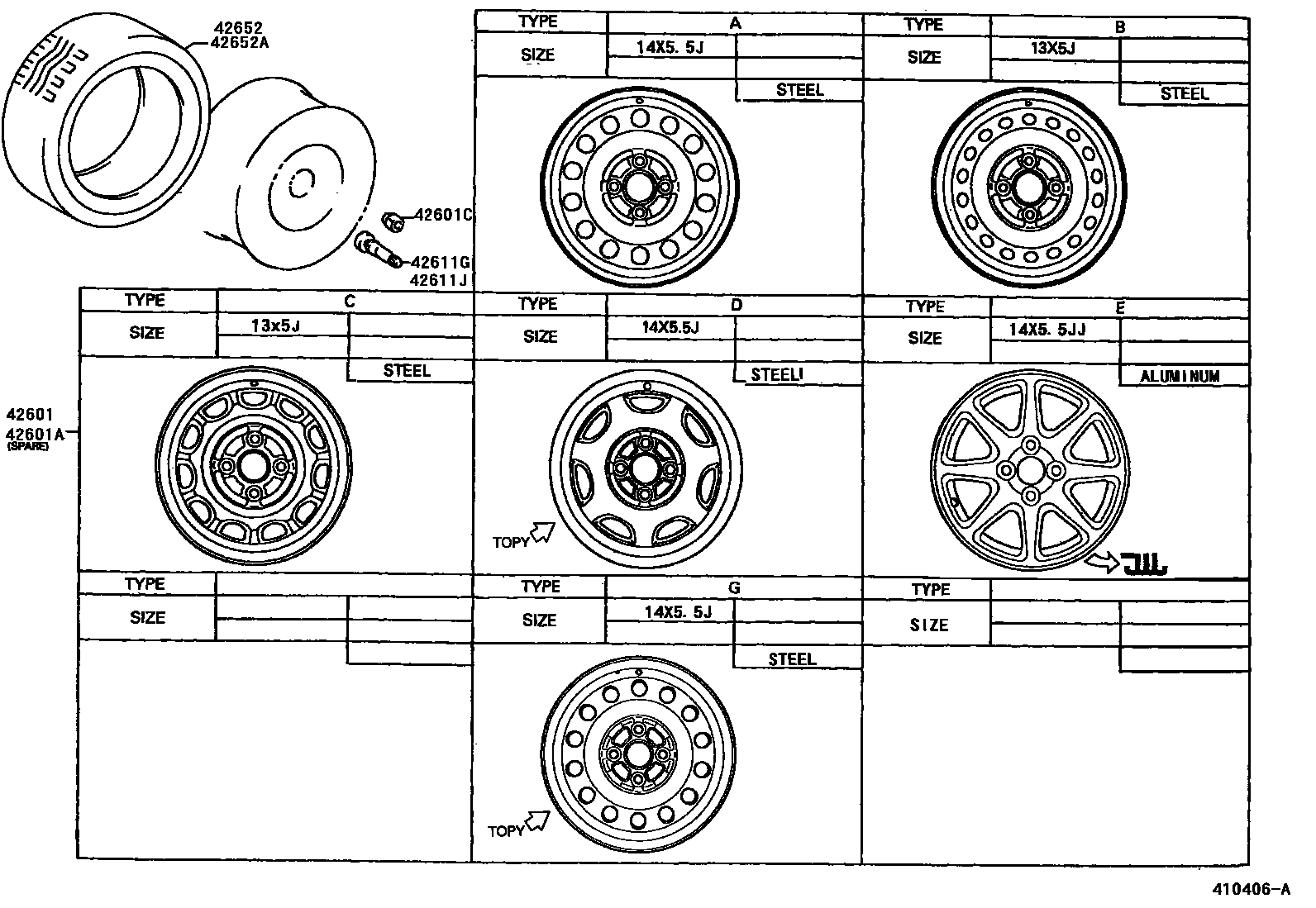

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
14X5.5J,TYPE A:REFER TO ILLUSTRATION,BLACK
13X5J,TYPE B:REFER TO ILLUSTRATION,BLACK
13X5J,SILVER M.
14X5.5J,OFFSET 45,TYPE D:REFER TO ILLUSTRATION,SILVER M
14X5.5J,TYPE E:REFER TO ILLUSTRATION
14X5.5J,OFFSET 39
14X5.5J,TYPE G:REFER TO ILLUSTRATION
14X6JJ,OFFSET 45,TYPE E:REFER TO ILLUSTRATION
42601AWHEEL, DISC (FOR SPARE)
14X5.5J,TYPE A:REFER TO ILLUSTRATION,BLACK
13X5J,TYPE B:REFER TO ILLUSTRATION,BLACK
13X5J,SILVER M.
14X5.5J,OFFSET 45,TYPE D:REFER TO ILLUSTRATION,SILVER M
14X5.5J,TYPE E:REFER TO ILLUSTRATION
14X5.5J,OFFSET 39
14X5.5J
14X6JJ,OFFSET 45,TYPE E:REFER TO ILLUSTRATION
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
185/65R14
155SR13
165SR13,*B/S,*D/L,*T/Y,*Y/H
165SR13,*Y/H
175/65R14
42652ATIRE (FOR SPARE)
185/65R14
155SR13
165SR13,*B/S,*D/L,*T/Y,*Y/H
165SR13,*Y/H
175/65R14
7 parts on this diagram · 4 diagrams in section
