FRONT DOOR PANEL & GLASS

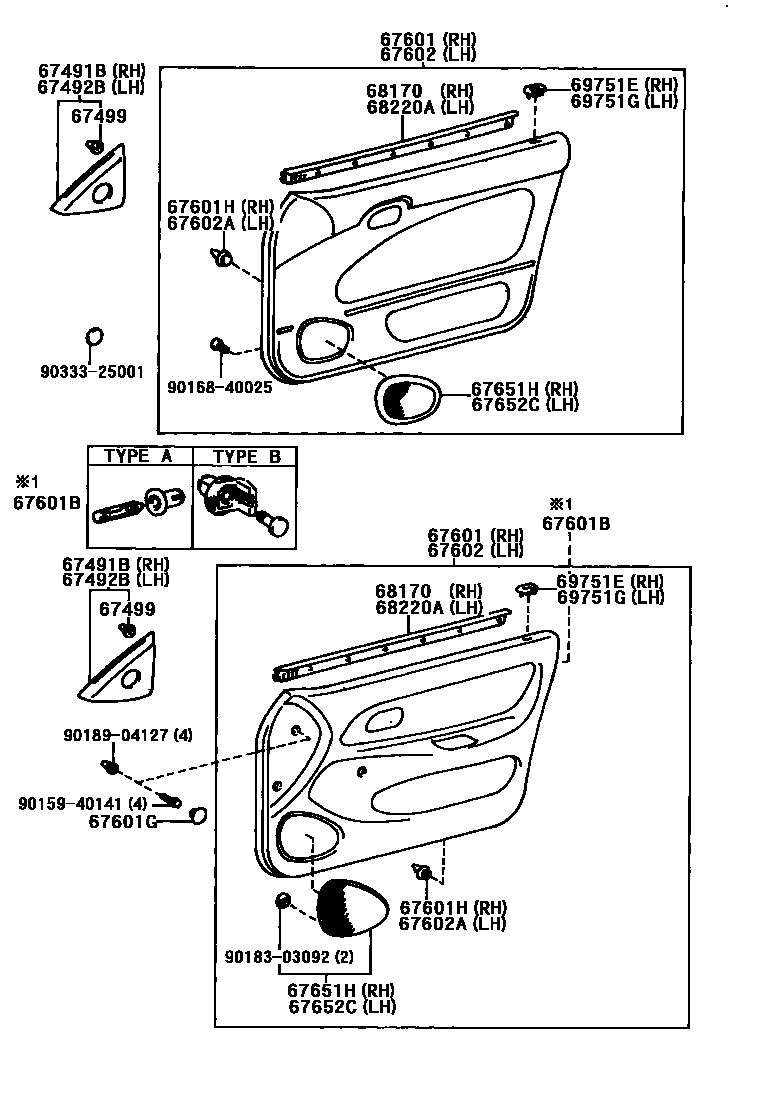

Parts diagram
67491BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH
main67491-12231i199205
W(ELECTRICAL REMOTE CONTROL DOOR MIRROR)
main67491-12241i199205-199505
W(DOOR MIRROR)
67492BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH
main67492-12231i199205
W(ELECTRICAL REMOTE CONTROL DOOR MIRROR)
main67492-12241i199205-199505
W(DOOR MIRROR)
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67771-30070×4i199205
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-13310-B0i199205-199401
SHADOW GRAY,TRIM1#
main67610-13310-J0i199205-199401
DARK BLUE,TRIM8#
main67610-13310-K0i199205-199401
SHADOW GRAY,TRIM9#
main67610-13400-B0i199205-199305
W(*PW),SHADOW GRAY,TRIM1#
main67610-13400-J0i199205-199305
W(*PW),DARK BLUE,TRIM8#
main67610-13401-B0i199305-199505
W(*PW),SHADOW GRAY,TRIM1#
main67610-13401-J1i199305-199505
W(*PW),DARK BLUE,TRIM8#
main67610-13480-B0i199401-199505
SHADOW GRAY,TRIM1#
main67610-13480-J0i199401-199505
DARK BLUE,TRIM8#
main67610-13481-B1i199505-199704
SHADOW GRAY,TRIM1#
main67610-13481-J1i199505-199704
BLUE/GRAY,TRIM8#
main67610-1H870-B0i199304-199704
W(SPEAKER),SHADOW GRAY,TRIM1#
main67650-1E130-B0i199205-199505
SHADOW GRAY,TRIM1#
main67650-1E130-J1i199205-199505
DARK BLUE,TRIM8#
main67650-1E130-K0i199205-199505
TAUPE,TRIM9#
main67650-1E131i199605-199704
main67650-1E131-B1i199605-199704
W(FULL FABRIC GL(BG**/QR**)),SHADOW GRAY,TRIM1#
main67650-1E131-J2i199605-199704
W(FULL FABRIC GL(BG**/QR**)),BLUE/GRAY,TRIM8#
main67650-1E140-B0i199205-199401
W(*PW & *EL),SHADOW GRAY,TRIM1#; W(*PW),SHADOW GRAY,TRIM1#
main67650-1E140-J0i199205-199401
W(*PW & *EL),DARK BLUE,TRIM8#; W(*PW),DARK BLUE,TRIM8#
main67650-1E140-K0i199205-199401
W(*PW & *EL),TAUPE,TRIM9#; W(*PW),TAUPE,TRIM9#
main67650-1E141-B1i199505-199704
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67650-1E141-J1i199505-199704
W(POWER WINDOW---FRONT ONLY),BLUE/GRAY,TRIM8#
main67650-1E180-B0i199205-199305
W(*PW & *EL),SHADOW GRAY,TRIM1#; W(*PW),SHADOW GRAY,TRIM1#
main67650-1E180-J0i199205-199305
W(*PW & *EL),DARK BLUE,TRIM8#; W(*PW),DARK BLUE,TRIM8#
main67650-1E180-K0i199205-199305
W(*PW & *EL),TAUPE,TRIM9#; W(*PW),TAUPE,TRIM9#
main67650-1E181-B0i199305-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#; W(*PW),SHADOW GRAY,TRIM1#
main67650-1E181-J1i199305-199505
W(*PW & *EL),DARK BLUE,TRIM8#; W(*PW),DARK BLUE,TRIM8#
main67650-1E181-K0i199305-199505
W(*PW & *EL),TAUPE,TRIM9#; W(*PW),TAUPE,TRIM9#
main67650-1E182-B1i199505-199704
W(*PW),SHADOW GRAY,TRIM1#
main67650-1E182-J2i199505-199704
W(*PW),BLUE/GRAY,TRIM8#
main67650-1E190-B0i199205-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#; W(*PW),SHADOW GRAY,TRIM1#
main67650-1E190-J1i199205-199505
W(*PW & *EL),DARK BLUE,TRIM8#; W(*PW),DARK BLUE,TRIM8#
main67650-1E190-K0i199205-199505
W(*PW & *EL),TAUPE,TRIM9#; W(*PW),TAUPE,TRIM9#
main67650-1E191-B1i199505-199704
W(*PW),SHADOW GRAY,TRIM1#
main67650-1E191-J2i199505-199704
W(*PW),BLUE/GRAY,TRIM8#
main67650-1E260-B0i199205-199704
SHADOW GRAY,TRIM1#
main67650-1E260-J0i199205-199704
DARK BLUE,TRIM8#
main67650-1E260-K0i199205-199505
TAUPE,TRIM9#
main67650-1E550-B0i199205-199304
W(SPEAKER),SHADOW GRAY,TRIM1#
main67650-1E550-J0i199205-199704
W(SPEAKER),DARK BLUE,TRIM8#
main67650-1E550-K0i199205-199505
W(SPEAKER),TAUPE,TRIM9#
main67650-1H021-B1i199505-199704
SHADOW GRAY,TRIM1#
main67650-1H021-J1i199605-199704
W(FULL FABRIC GL(BG**/QR**)),BLUE/GRAY,TRIM8#
main67650-1H032-B2i199505-199704
SHADOW GRAY,TRIM1#
main67650-1H032-J2i199505-199704
BLUE/GRAY,TRIM8#
main67650-1H110-B0i199401-199405
W(*PW),SHADOW GRAY,TRIM1#
main67650-1H110-J0i199405-199505
W(*PW),DARK BLUE,TRIM8#
main67650-1H300-B0i199505-199704
W(*PW),SHADOW GRAY,TRIM1#
main67650-1H300-J0i199505-199704
W(*PW),BLUE/GRAY,TRIM8#
main67650-1H310-B0i199605-199704
W(FULL FABRIC GL(BG**/QR**) & POWER WINDOW),SHADOW GRAY,TRIM1#
main67650-1H310-J0i199505-199704
BLUE/GRAY,TRIM8#
main67650-1H360-B0i199412-199504
95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#
main67650-1H390-B0i199412-199504
95 SPRING CAMPAIGN,W(*PW),SHADOW GRAY,TRIM1#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07066-03×4i199205-199309
SHADOW GRAY,TRIM1#
main90467-07066-J0×4i199205-199704
DARK BLUE,TRIM8#
main90467-07066-K0×4i199205-199401
TAUPE,TRIM9#
main90467-07066-P0×8i199309-199704
SHADOW GRAY,TRIM1#; SHADOW GRAY,TYPE A
main90467-09141×4i199205-199704
TYPE B
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
main90950-01800-B0×4i199205-199704
SHADOW GRAY,TRIM1#
main90950-01800-J0×4i199205-199704
DARK BLUE,TRIM8#
main90950-01800-K0×4i199401-199505
TAUPE,TRIM9#
67601HRETAINER, DOOR TRIM, RH
main67771-12030×3i199310
YELLOWISH GREEN
main67771-12050×6i199505
RED; W(*PW)
main67771-12070×6i199205-199401
WHITE
main67771-13030×6i199401
BROWN; SABLE,PLANT K21
main67771-16160×3i199205
ORANGE
main67771-16170×6i199401
SABLE; SABLE,PLANT A31,A32
main67771-28020×6i199207-199401
RED; W(*PW)
main67771-28030i199207-199401
YELLOW
main67771-30090i199401-199505
YELLOW
main90467-08179i199310
YELLOW
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-13250-B0i199205-199401
SHADOW GRAY,TRIM1#
main67620-13250-J0i199205-199401
DARK BLUE,TRIM8#
main67620-13250-K0i199205-199401
TAUPE,TRIM9#
main67620-13280-B0i199306-199505
SHADOW GRAY,TRIM1#
main67620-13280-J1i199205-199306
DARK BLUE,TRIM8#
main67620-13280-K0i199306-199505
TAUPE,TRIM9#
main67620-1K191-B1i199505-199704
W(POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM1#
main67620-1K191-J1i199505-199704
W(POWER WINDOW---FRONT ONLY),BLUE/GRAY,TRIM8#
main67620-1K210-B0i199306-199505
SHADOW GRAY,TRIM1#
main67620-1K210-J1i199306-199505
DARK BLUE,TRIM8#
main67620-1K210-K0i199306-199505
TAUPE,TRIM9#
main67620-1K211-B1i199505-199704
SHADOW GRAY,TRIM1#
main67620-1K211-J2i199605-199704
W(FULL FABRIC GL(BG**/QR**)),BLUE/GRAY,TRIM8#
main67620-1K240-B0i199205-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#; W(*PW),SHADOW GRAY,TRIM1#
main67620-1K240-J1i199205-199505
W(*PW & *EL),DARK BLUE,TRIM8#; W(*PW),DARK BLUE,TRIM8#
main67620-1K240-K0i199205-199505
W(*PW & *EL),TAUPE,TRIM9#; W(*PW),TAUPE,TRIM9#
main67620-1K340-B0i199307-199704
SHADOW GRAY,TRIM1#
main67620-1K340-J0i199307-199704
DARK BLUE,TRIM8#
main67620-1K340-K0i199306-199505
TAUPE,TRIM9#
main67620-1K630-B0i199205-199304
W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-1K630-J0i199205-199304
W(SPEAKER),DARK BLUE,TRIM8#
main67620-1K630-K0i199205-199304
W(SPEAKER),TAUPE,TRIM9#
main67620-1L080-B0i199205-199305
W(*PW & *EL),SHADOW GRAY,TRIM1#; W(*PW),SHADOW GRAY,TRIM1#
main67620-1L080-J0i199205-199305
W(*PW & *EL),DARK BLUE,TRIM8#; W(*PW),DARK BLUE,TRIM8#
main67620-1L080-K0i199205-199305
W(*PW & *EL),TAUPE,TRIM9#; W(*PW),TAUPE,TRIM9#
main67620-1L081-B0i199305-199505
W(*PW & *EL),SHADOW GRAY,TRIM1#; W(*PW),SHADOW GRAY,TRIM1#
main67620-1L081-J1i199305-199505
W(*PW & *EL),DARK BLUE,TRIM8#; W(*PW),DARK BLUE,TRIM8#
main67620-1L081-K0i199305-199505
W(*PW & *EL),TAUPE,TRIM9#; W(*PW),TAUPE,TRIM9#
main67620-1L082-B1i199605-199704
W(FULL FABRIC GL(BG**/QR**) & FRONT+REAR POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-1L082-J2i199505-199704
W(REAR *PW),BLUE/GRAY,TRIM8#
main67620-1L280-B0i199205-199305
W(*PW & *EL),SHADOW GRAY,TRIM1#; W(*PW),SHADOW GRAY,TRIM1#
main67620-1L280-J0i199205-199305
W(*PW & *EL),DARK BLUE,TRIM8#; W(*PW),DARK BLUE,TRIM8#
main67620-1L280-K0i199205-199305
W(*PW & *EL),TAUPE,TRIM9#; W(*PW),TAUPE,TRIM9#
main67620-1L281-B0i199305-199401
W(*PW & *EL),SHADOW GRAY,TRIM1#; W(*PW),SHADOW GRAY,TRIM1#
main67620-1L281-J0i199305-199401
W(*PW & *EL),DARK BLUE,TRIM8#; W(*PW),DARK BLUE,TRIM8#
main67620-1L281-K1i199305-199401
W(*PW & *EL),TAUPE,TRIM9#; W(*PW),TAUPE,TRIM9#
main67620-1L282-B1i199405-199505
W(*PW),SHADOW GRAY,TRIM1#
main67620-1L282-J1i199405-199505
W(*PW),DARK BLUE,TRIM8#
main67620-1L283-B2i199505-199704
W(REAR *PW),SHADOW GRAY,TRIM1#
main67620-1L283-J2i199505-199704
W(REAR *PW),BLUE/GRAY,TRIM8#
main67620-1L810-B0i199307-199704
W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-1L810-J0i199304-199307
W(SPEAKER),DARK BLUE,TRIM8#
main67620-1L810-K0i199304-199505
W(SPEAKER),TAUPE,TRIM9#
main67620-1N111-B1i199505-199605
SHADOW GRAY,TRIM1#
main67620-1N111-J1i199505-199704
BLUE/GRAY,TRIM8#
main67620-1N120-B0i199401-199505
SHADOW GRAY,TRIM1#
main67620-1N120-J0i199401-199505
DARK BLUE,TRIM8#
main67620-1N121-B1i199505-199704
SHADOW GRAY,TRIM1#
main67620-1N121-J1i199505-199704
BLUE/GRAY,TRIM8#
main67620-1N420-B0i199505-199704
W(POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM1#
main67620-1N420-J0i199505-199704
W(POWER WINDOW---FRONT ONLY),BLUE/GRAY,TRIM8#
main67620-1N430-B0i199605-199704
W(FULL FABRIC GL(BG**/QR**) & POWER WINDOW ONRY FRONT),SHADOW GRAY,TRIM1#
main67620-1N430-J0i199505-199704
W(POWER WINDOW---FRONT ONLY),BLUE/GRAY,TRIM8#
main67620-1N450-B0i199605-199704
W(FULL FABRIC GL(BG**/QR**) & POWER WINDOW ONRY FRONT),SHADOW GRAY,TRIM1#
main67620-1N450-J0i199505-199508
DARK BLUE,TRIM8#
main67620-1N480-B0i199605-199704
W(FULL FABRIC GL(BG**/QR**)),SHADOW GRAY,TRIM1#
main67620-1N480-J0i199605-199704
W(FULL FABRIC GL(BG**/QR**)),BLUE/GRAY,TRIM16; W(FULL FABRIC GL(BG**/QR**)),BLUE/GRAY,TRIM8#
main67620-1N500-B0i199412-199504
95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#
main67620-1N530-B0i199412-199504
95 SPRING CAMPAIGN,W(*PW),SHADOW GRAY,TRIM1#
67602ARETAINER, DOOR TRIM, LH
main67771-12030×3i199310
YELLOWISH GREEN
main67771-12050×6i199505
RED; W(*PW)
main67771-12070×6i199205-199401
WHITE
main67771-13030×6i199401
BROWN; SABLE,PLANT K21
main67771-16160×3i199205
ORANGE
main67771-16170×6i199401
SABLE; SABLE,PLANT A31,A32
main67771-28020×6i199205-199207
main67771-28030i199207-199401
YELLOW
main67771-30090i199401-199505
YELLOW
main90467-08179i199310
YELLOW
67651HGRILLE, SPEAKER DOOR, RH
main67651-12020-B0i199205-199704
SHADOW GRAY,TRIM1#
main67651-12020-J0i199205-199704
DARK BLUE,TRIM8#
main67651-12020-K1i199205-199505
TAUPE,TRIM9#
main67651-19015-B0i199205-199704
SHADOW GRAY,TRIM1#
main67651-19015-J0i199205-199704
DARK BLUE,TRIM8#
main67651-19015-K0i199205-199401
TAUPE,TRIM9#
67652CGRILLE, SPEAKER DOOR, LH
main67652-12030-B0i199205-199704
SHADOW GRAY,TRIM1#
main67652-12030-J0i199205-199704
DARK BLUE,TRIM8#
main67652-12030-K1i199205-199505
TAUPE,TRIM9#
main67652-19015-B0i199205-199704
SHADOW GRAY,TRIM1#
main67652-19015-J0i199205-199704
DARK BLUE,TRIM8#
main67652-19015-K0i199401-199505
TAUPE,TRIM9#
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68171-12160i199205
68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
main68172-12050i199205
69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB
main69751-12050-B0i199205-199704
SHADOW GRAY,TRIM1#
main69751-12050-J0i199205-199704
DARK BLUE,TRIM8#
main69751-12050-K0i199205-199401
TAUPE,TRIM9#
69751GHOLDER, FRONT DOOR LOCK CONTROL KNOB
main69751-12050-B0i199205-199704
SHADOW GRAY,TRIM1#
main69751-12050-J0i199205-199704
DARK BLUE,TRIM8#
main69751-12050-K0i199205-199401
TAUPE,TRIM9#
9015940141
main90159-40141
9016840025
main90168-40025
9018303092
main90183-03092
9018904127
main90189-04127
9033325001
main90333-25001

20 parts on this diagram · 4 diagrams in section

FRONT DOOR PANEL & GLASS — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
