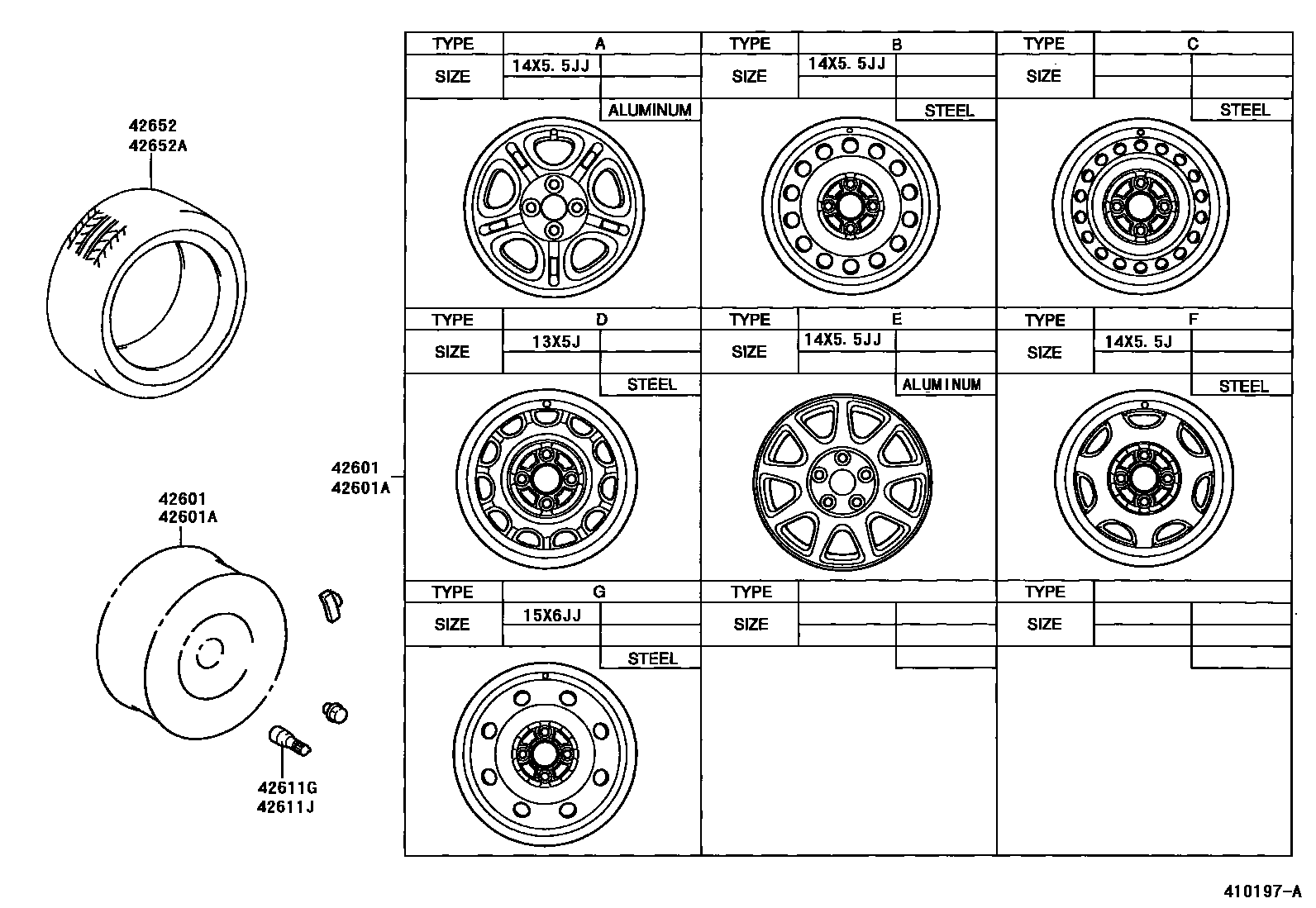

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
14X5.5JJ,W(ALUMINIUM WHEEL);TYPE A:REFER TO ILLUSTRATION
14X5.5J,95 SPRING CAMPAIGN(DENMARK,AUSTRIA,PORTUGAL,FINLAND);TYPE B:REFER TO ILLUSTRATION,BLACK; 14X5.5J,95 SPRING CAMPAIGN(UNITED KINGDOM,IRELAND,CZECHOSLOVAKIA,FRANCE,GERMANY,DENMARK,AUSTRIA);TYPE B:REFER TO ILLUSTRATION,BLACK
13X5J,TYPE C:REFER TO ILLUSTRATION,BLACK
13X5J,TYPE D:REFER TO ILLUSTRATION,SILVER M.
14X5.5JJ,W(ALUMINIUM WHEEL);TYPE E:REFER TO ILLUSTRATION
14X5.5J,OFFSET 45,TYPE F,SILVER M
15X6JJ,95 SPRING CAMPAIGN(DENMARK,AUSTRIA,PORTUGAL,FINLAND);TYPE G:REFER TO ILLUSTRATION
42601AWHEEL, DISC (FOR SPARE)
14X5.5JJ,W(ALUMINIUM WHEEL);TYPE A:REFER TO ILLUSTRATION
14X5.5J,95 SPRING CAMPAIGN(DENMARK,AUSTRIA,PORTUGAL,FINLAND);TYPE B:REFER TO ILLUSTRATION,BLACK; 14X5.5J,95 SPRING CAMPAIGN(UNITED KINGDOM,IRELAND,CZECHOSLOVAKIA,FRANCE,GERMANY,DENMARK,AUSTRIA);TYPE B:REFER TO ILLUSTRATION,BLACK
13X5J,TYPE C:REFER TO ILLUSTRATION,BLACK
13X5J,*EX-USSR;TYPE D:REFER TO ILLUSTRATION,SILVER M.
14X5.5JJ,W(ALUMINIUM WHEEL);TYPE E:REFER TO ILLUSTRATION
14X5.5J,OFFSET 45,TYPE F,SILVER M
15X6JJ,95 SPRING CAMPAIGN(DENMARK,AUSTRIA,PORTUGAL,FINLAND);TYPE G:REFER TO ILLUSTRATION
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
165SR13,W(TUBE)
155SR13
155SR13
175/65R14 82H
165SR13,*(B),*(D),*(T),*(Y)
165SR13,*(Y)
165/70R14 81T
185/65R14 85H,*(T)
195/55R15,95 SPRING CAMPAIGN(DENMARK,AUSTRIA,PORTUGAL,FINLAND)
185/65R14 86S,95 SPRING CAMPAIGN(DENMARK,AUSTRIA,PORTUGAL,FINLAND)
185/65R14 85H,*(D)
42652ATIRE (FOR SPARE)
165SR13,W(TUBE)
155SR13
155SR13
175/65R14 82H
165SR13,*(B),*(D),*(T),*(Y)
165SR13,*(Y)
165/70R14 81T
185/65R14 85H,*(T)
185/65R14 85H,*(B),*(D),*(T)I,*(Y)
6 parts on this diagram · 4 diagrams in section
