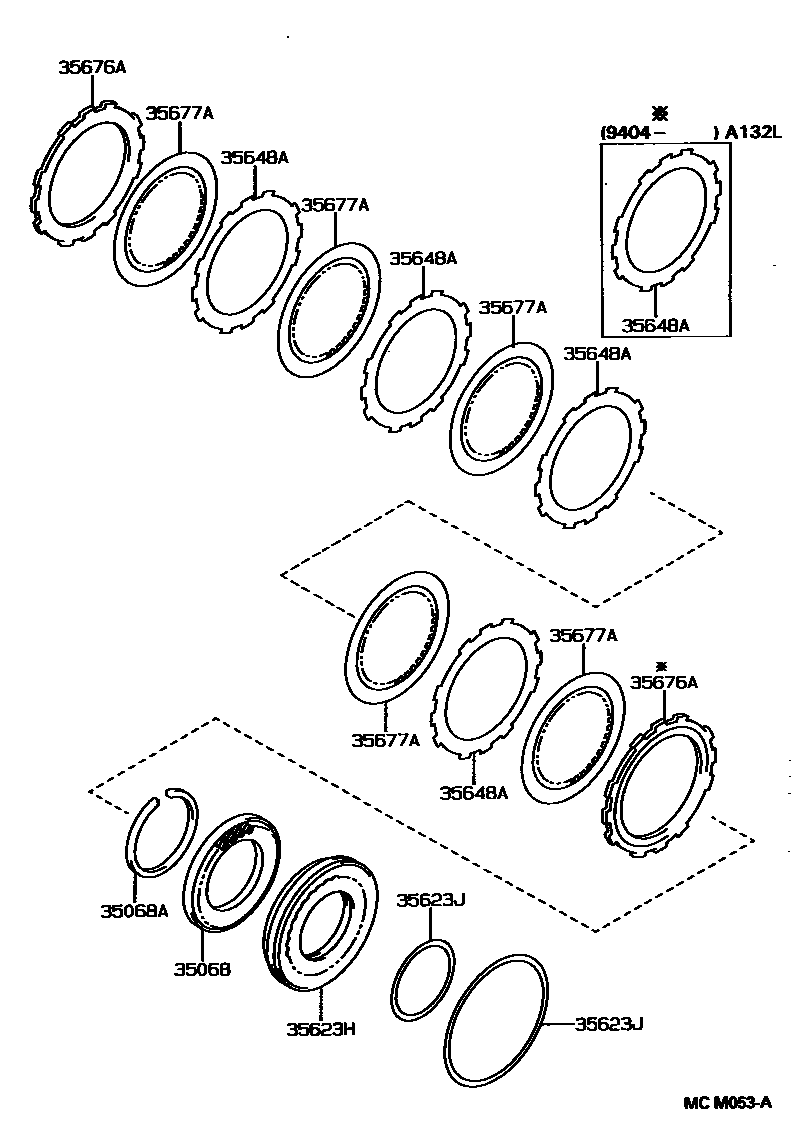

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-20010iAE101,EE101..ATM199701

main35068-32010iAE101..4FC199612-199701

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iAE101,EE101..ATM199205

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12050iAE101..4FC199308

main35623-20010iAE101..4FC199205-199308

main35623-32010iEE101..3FC199205-199404

main35623-32050iEE101..3FC199404

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iAE101,EE101..ATM199205

INNER

main90301-99022iAE101,EE101..ATM199205

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020×6iAE101..4FC; EE101..3FC199308-199404

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010×2iAE101,EE101..ATM199205-199308

T=3.5

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12040×6iAE101..4FC199205-199311

main35677-12060×6iAE101..4FC199311

main35677-32040×6iEE101..3FC199205-199404

main35677-32060×6iEE101..3FC199404

7 parts on this diagram · 1 diagram in section
