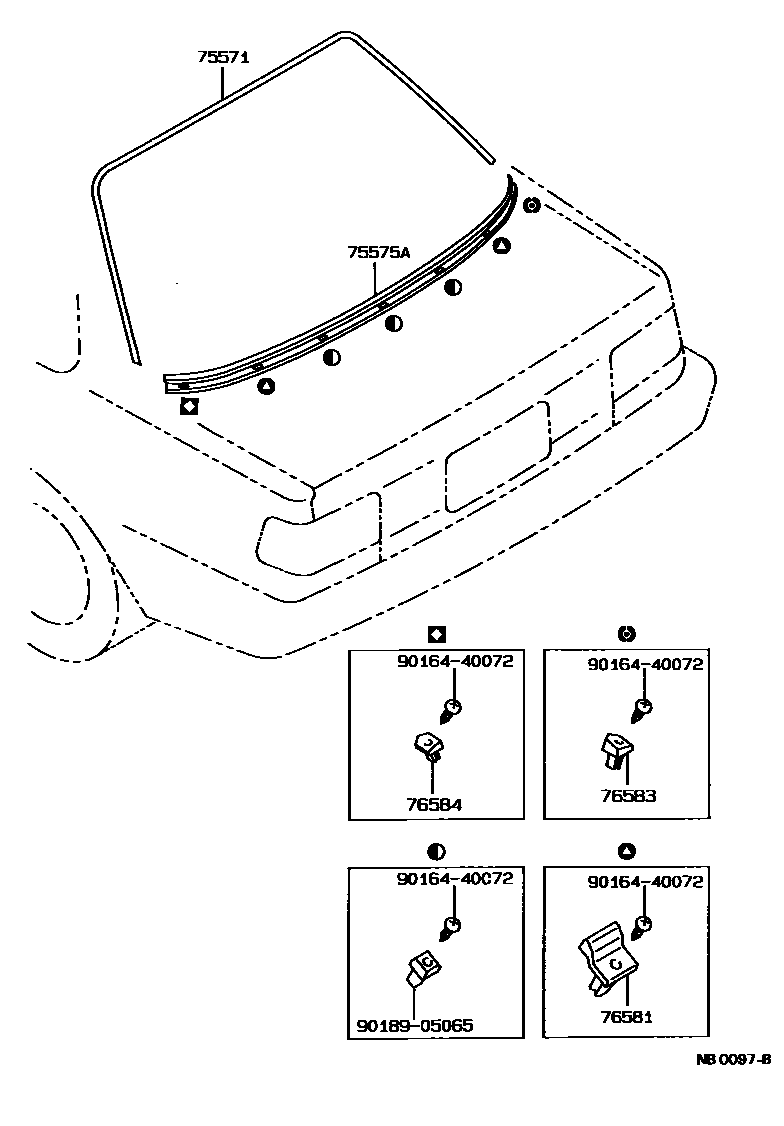

REAR MOULDING

0001 1 0002 1 0003 1

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75507-12040iAE95..WG198802-199009

main75571-12270iAE9#,CE90,EE90..SED..(STD,XL,XLI)198705-199205

main75571-12280iAE9#,EE90..SED..(GL,GLI)198705-199205

main75571-12390iAE92,CE90,EE90..LB..(GTI,XL,XLI)198705-199205

main75571-12400iAE92,EE90..LB..(GL,GLI)198705-199205

75575AMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-12210iAE9#,CE90,EE90..SED..(STD,XL,XLI)198705-199205

main75575-12220iAE9#,EE90..SED..(GL,GLI)198705-199205

main75575-12250iAE92,CE90,EE90..LB..(GTI,XL,XLI)198705-199205

main75575-12260iAE92,EE90..LB..(GL,GLI)198705-199205

main75575-12300iAE95..WG198802-198804

main75575-12301iAE95..WG198804-199009

76581RETAINER, BACK WINDOW OUTSIDE MOULDING

main76581-12010×2iAE9#,CE90,EE90..SED198705-199205

main76581-12020×2iAE92,CE90,EE90..LB198705-199205

main76581-12040×2iAE95..WG198802-199009

76583RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, RH

main76583-12010×3iAE92,CE90,EE90..LB198705-199205

main76583-12030iAE9#,CE90,EE90..SED198705-199205

main76583-12040×4iAE95..WG198802-199009

76584RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, LH

main76584-12010iAE9#,CE90,EE90..SED198705-199205

main76584-12020×2iAE92,CE90,EE90..LB198705-199205

9016440072

main90164-40072

9018905065

main90189-05065

7 parts on this diagram · 3 diagrams in section
