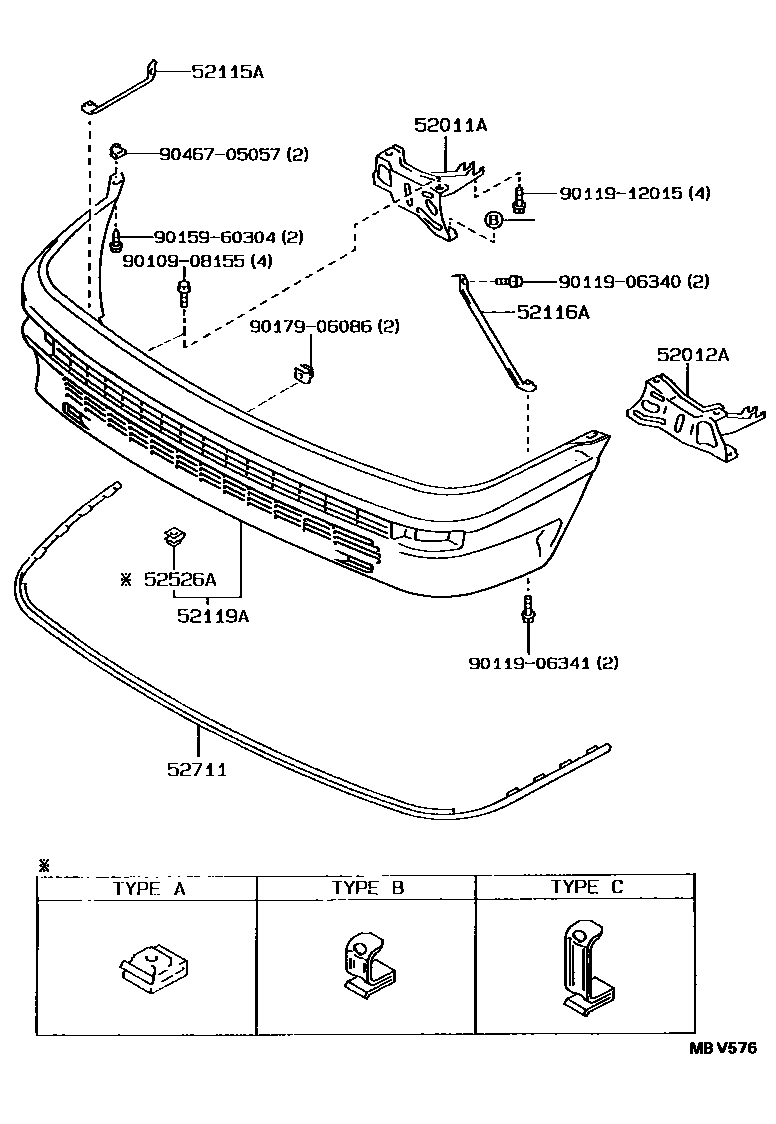

FRONT BUMPER & BUMPER STAY

0001 1TYPE E 0002 1TYPE D

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-12360iAE95..SED;AE92,CE90,EE90..SED,WG198705-199205

main52011-12370iAE95..WG;AE92,CE90,EE90..LB198705-199205

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-12370iAE92,CE90,EE90..SED,WG; AE92,EE90..SED..(GL,GLI)199008-199205

main52012-12380iAE95..WG;AE92,CE90,EE90..LB198705-199205

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12260iAE95..SED;AE92,CE90,EE90..SED,WG; AE95..WG;AE92,CE90,EE90..LB198705-198908

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12200iAE9#,CE90,EE90198908-199205

52119ACOVER, FRONT BUMPER

main52119-1A190iAE9#,EE90..LHD..SED..(GL,GLI)198705-198908

W(BUMPER MOULDING)

main52119-1A210iAE9#,CE90,EE90..LHD..SED..(XL,XLI); AE9#,EE90..LHD..SED..(GL,GLI)198908-199205

W(HEAD LAMP CLEANER & BUMPER MOULDING)

main52119-1A230iAE92,CE90,EE90..LB..(CBR,DSL); AE92,CE90,EE90..LHD..LB..(CBR,DSL); AE92..LHD..EFI; AE95..WG198705-198905

TYPE D; W(BUMPER MOULDING)

main52119-1A350iEE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)198705-199205

main52119-1A370iAE92,CE90,EE90..LHD..(SED,WG)..(STD,XL)198705-198908

W(HEAD LAMP CLEANER)

main52119-1A390iAE92,CE90,EE90..LHD..LB..(GL,GLI,XL,XLI); AE92..GTI198908-199205

TYPE D,W(HEAD LAMP CLEANER),W/O(PAINTED); W(HEAD LAMP CLEANER)

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52565-12040×4iAE9#,CE90,EE90198705-198910

TYPE A

main52565-12090×4iAE95..WG198802-198805

TYPE B

main52565-12110iAE9#,CE90,EE90198705-198805

TYPE C

main52565-16020×4iAE9#,CE90,EE90198910-199205

TYPE A

52711MOULDING, FRONT BUMPER

main52711-12040iAE92,CE90,EE90..LB198712-199205

main52711-12120iAE9#,CE90,EE90..SED..(GL,GLI,XL,XLI)198705-199205

main52711-12130iAE92,CE90,EE90..LB198705-199205

main52711-12170-02iAE95..WG198802-198808

RED,040 ,168 ,4H6 ,8D8

main52711-12170-03iAE95..WG198908-199009

GRAY,25M ,26M ,3E5 ,3H4 ,6K6 ,8E9

9010908155

main90109-08155

9011906340

main90119-06340

9011906341

main90119-06341

9011912015

main90119-12015

9015960304

main90159-60304

9017906086

main90179-06086

9046705057

main90467-05057

14 parts on this diagram · 2 diagrams in section
