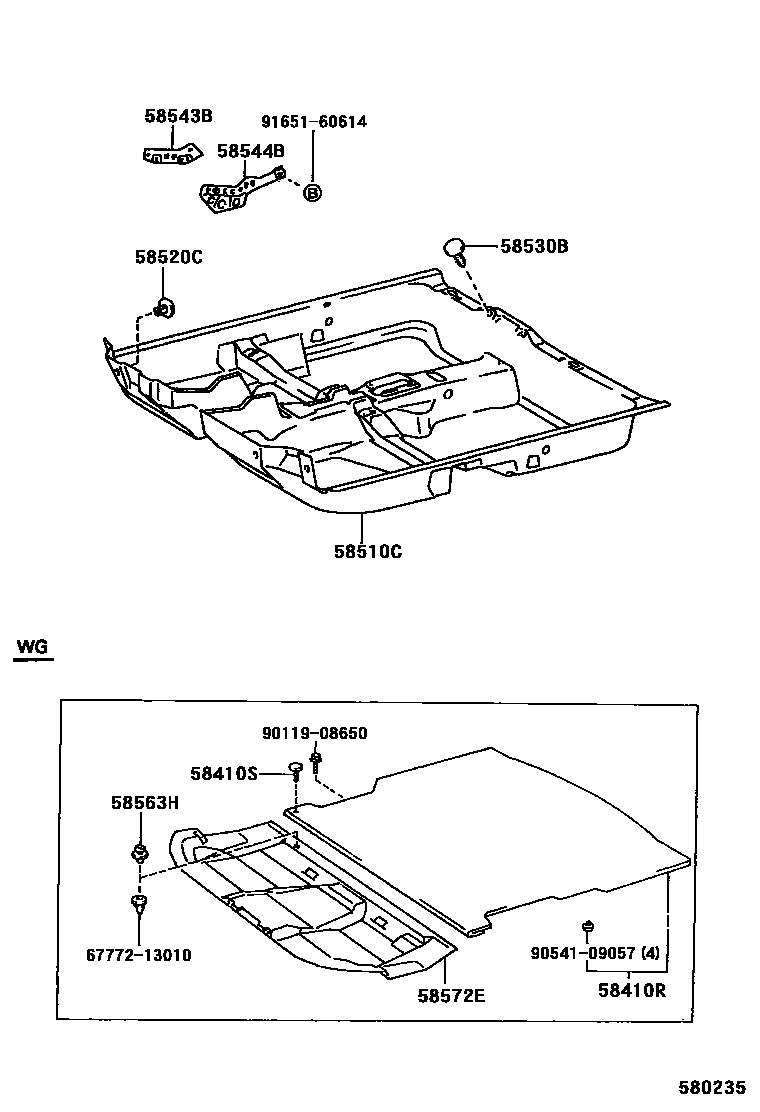

MAT & CARPET

58410RBOARD ASSY, DECK

main58410-13030-B2iAE102..JPP..WG199206-199305

SHADOW GRAY,TRIM1#

main58410-13030-J1iAE102..JPP..WG199206-199305

DARK BLUE,TRIM8#

main58410-13030-K2iAE102..JPP..WG199206-199305

TAUPE,TRIM9#

main58410-13050-B0iAE102..JPP..WG199305-199401

SHADOW GRAY,TRIM1#

main58410-13050-J0iAE102..JPP..WG199305-199401

DARK BLUE,TRIM8#

main58410-13050-K0iAE102..JPP..WG199305-199401

TAUPE,TRIM9#

main58410-13051-B0iAE102..JPP..WG199401-199408

SHADOW GRAY,TRIM1#

main58410-13051-J0iAE102..JPP..WG199401-199408

DARK BLUE,TRIM8#

main58410-13051-K0iAE102..JPP..WG199401-199408

TAUPE,TRIM9#

main58410-13052-B0iAE102..JPP..WG199408

SHADOW GRAY,TRIM1#

main58410-13052-E0iAE102..JPP..WG199508

OAK,TRIM4#

main58410-13052-J0iAE102..JPP..WG199408

DARK BLUE,TRIM8#

main58410-13052-K0iAE102..JPP..WG199408-199508

TAUPE,TRIM9#

58410SCLIP, DECK BOARD

main90467-06016-C0×5iAE102..JPP..WG199408-199508

BLACK,TRIM1#,8#,9#

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-13610-B1iAE102..JPP..WG..USA199206-199312

SHADOW GRAY,TRIM1#

main58510-13610-J1iAE102..JPP..WG..USA199206-199312

DARK BLUE,TRIM8#

main58510-13610-K1iAE102..JPP..WG..USA199206-199312

TAUPE,TRIM9#

main58510-13611-B1iAE102..JPP..WG..USA199312-199505

SHADOW GRAY,TRIM1#

main58510-13611-J1iAE102..JPP..WG..USA199312-199505

DARK BLUE,TRIM8#

main58510-13611-K1iAE102..JPP..WG..USA199312-199505

TAUPE,TRIM9#

main58510-13612-B3iAE102..JPP..WG..USA199508-199608

SHADOW GRAY,TRIM1#

main58510-13612-E0iAE102..JPP..WG..USA199508-199608

OAK,TRIM4#

main58510-13612-J1iAE102..JPP..WG..USA199508-199608

DARK BLUE,TRIM8#

main58510-13612-K1iAE102..JPP..WG..USA199505-199508

TAUPE,TRIM9#

main58510-13620-B1iAE102..JPP..WG..CND; AE102..JPP..WG..USA199206-199312

COLD SPEC,SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#

main58510-13620-J1iAE102..JPP..WG..CND; AE102..JPP..WG..USA199206-199312

COLD SPEC,DARK BLUE,TRIM8#; DARK BLUE,TRIM8#

main58510-13620-K1iAE102..JPP..WG..CND; AE102..JPP..WG..USA199206-199312

COLD SPEC,TAUPE,TRIM9#; TAUPE,TRIM9#

main58510-13621-B1iAE102..JPP..WG..CND; AE102..JPP..WG..USA199312-199508

COLD SPEC,SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#

main58510-13621-J1iAE102..JPP..WG..CND; AE102..JPP..WG..USA199312-199508

COLD SPEC,DARK BLUE,TRIM8#; DARK BLUE,TRIM8#

main58510-13621-K1iAE102..JPP..WG..CND; AE102..JPP..WG..USA199312-199508

COLD SPEC,TAUPE,TRIM9#; TAUPE,TRIM9#

main58510-13622-B2iAE102..JPP..WG..CND199508-199704

SHADOW GRAY,TRIM1#

main58510-13622-E0iAE102..JPP..WG..CND199508-199704

OAK,TRIM4#

main58510-13622-J1iAE102..JPP..WG..USA199508-199608

COLD SPEC,DARK BLUE,TRIM8#

main58510-1E650-B2iAE10#..JPP..SED..USA199206-199312

SHADOW GRAY,TRIM1#

main58510-1E650-J1iAE10#..JPP..SED..USA199206-199312

DARK BLUE,TRIM8#

main58510-1E650-K1iAE10#..JPP..SED..USA199206-199312

TAUPE,TRIM9#

main58510-1E651-B2iAE10#..JPP..SED..(D,N)..USA199312-199508

SHADOW GRAY,TRIM1#

main58510-1E651-J1iAE10#..JPP..SED..(D,N)..USA199312-199508

DARK BLUE,TRIM8#

main58510-1E651-K1iAE10#..JPP..SED..(D,N)..USA199312-199508

TAUPE,TRIM9#

main58510-1E652-B2iAE10#..JPP..SED..USA199508-199608

SHADOW GRAY,TRIM1#

main58510-1E652-E0iAE10#..JPP..SED..USA199508-199608

OAK,TRIM4#

main58510-1E652-J1iAE10#..JPP..SED..USA199508-199608

DARK BLUE,TRIM8#

main58510-1E660-B1iAE10#..JPP..SED..CND; AE10#..JPP..SED..USA199206-199312

COLD SPEC,SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#

main58510-1E660-J0iAE10#..JPP..SED..CND; AE10#..JPP..SED..USA199206-199312

COLD SPEC,DARK BLUE,TRIM8#; DARK BLUE,TRIM8#

main58510-1E660-K0iAE10#..JPP..SED..CND; AE10#..JPP..SED..USA199206-199312

COLD SPEC,TAUPE,TRIM9#; TAUPE,TRIM9#

main58510-1E661-B1iAE10#..JPP..SED..CND; AE10#..JPP..SED..USA199312-199508

COLD SPEC,SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#

main58510-1E661-J0iAE10#..JPP..SED..CND; AE10#..JPP..SED..USA199312-199508

COLD SPEC,DARK BLUE,TRIM8#; DARK BLUE,TRIM8#

main58510-1E661-K0iAE10#..JPP..SED..CND; AE10#..JPP..SED..USA199312-199508

COLD SPEC,TAUPE,TRIM9#; TAUPE,TRIM9#

main58510-1E662-B1iAE10#..JPP..SED..CND199508-199704

SHADOW GRAY,TRIM1#

main58510-1E662-E0iAE10#..JPP..SED..USA199508-199608

COLD SPEC,OAK,TRIM4#

main58510-1E662-J0iAE10#..JPP..SED..CND199508-199704

DARK BLUE,TRIM8#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-09068-11×2iAE10#..JPP199206-199209

BLACK,TRIM1#,8#,9#

main90467-09068-22iAE10#..JPP199508-199704

BLACK,TRIM1#,4#,8#

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0×2iAE10#..JPP..SED; AE102..JPP..WG199206-199508

BLACK,TRIM1#,8#,9#

58543BBRACKET, FLOOR CARPET, RH

main58543-12011iAE10#..JPP199206-199312

58544BBRACKET, FLOOR CARPET, LH

main58544-12030iAE10#..JPP199206-199505

main58544-12031iAE10#..JPP199505

58563HCLIP(FOR REAR FLOOR MAT)

main90333-25001×2iAE102..JPP..WG199408-199505

PLANT A31,A32

main90333-30002×2iAE102..JPP..WG199408-199505

PLANT K21

main90467-07136×2iAE102..JPP..WG199206-199408

58572EMAT, REAR FLOOR, FRONT

main58572-13010iAE102..JPP..WG199206-199505

main58572-13020iAE102..JPP..WG199505

6777213010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-13010

9011908650

main90119-08650

9054109057

main90541-09057

9165160614

main91651-60614

13 parts on this diagram · 1 diagram in section
