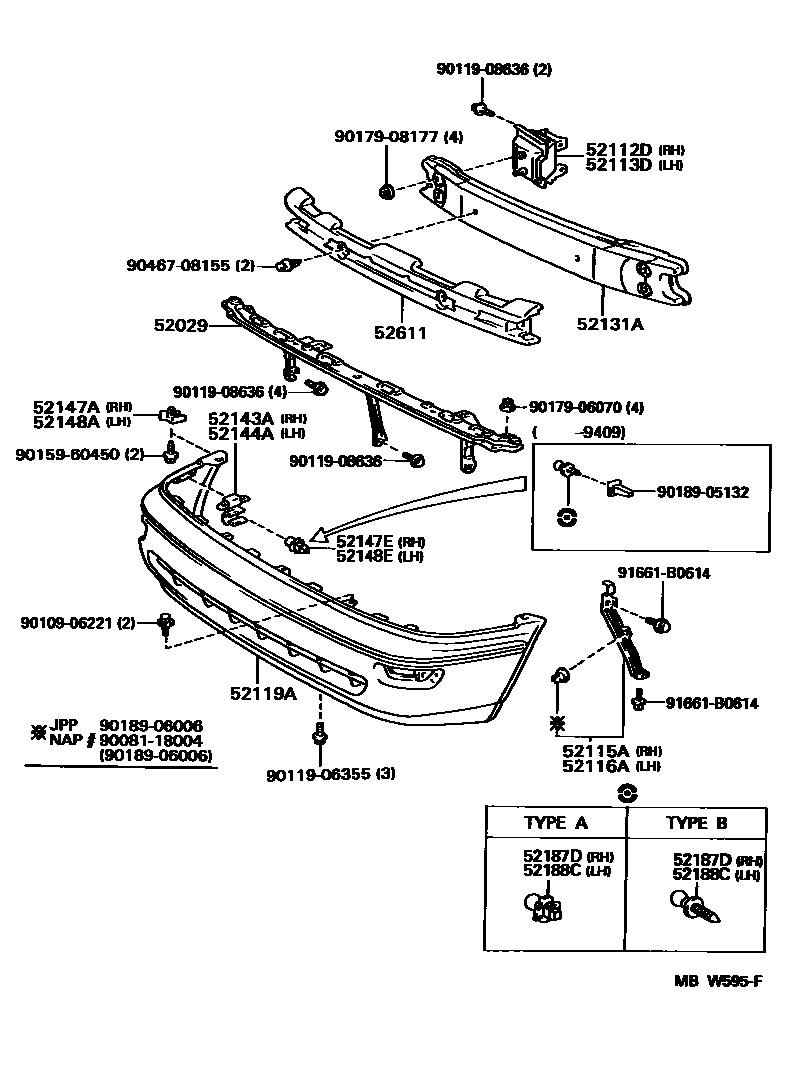

FRONT BUMPER & BUMPER STAY
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52112DEXTENSION, FRONT BUMPER, RH
52113DEXTENSION, FRONT BUMPER, LH
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
52131AREINFORCEMENT, FRONT BUMPER
52143AARM, FRONT BUMPER, INNER RH
52144AARM, FRONT BUMPER, INNER LH
52147ABRACKET, FRONT BUMPER STAY, RH
52147EBRACKET, FRONT BUMPER MOUNTING, RH
52148ABRACKET, FRONT BUMPER STAY, LH
52148EBRACKET, FRONT BUMPER MOUNTING, LH
52187DGUIDE, FRONT BUMPER LOCATION, RH
52188CGUIDE, FRONT BUMPER LOCATION, LH
52611ABSORBER, FRONT BUMPER ENERGY
9008118004
main90081-18004
9010906221
main90109-06221
9011906355
main90119-06355
9011908636
main90119-08636
9015960450
main90159-60450
9017906070
main90179-06070
9017908177
main90179-08177
9018905132
main90189-05132
9018906006
main90189-06006
9046708155
main90467-08155
91661B0614
main91661-B0614
27 parts on this diagram · 1 diagram in section
