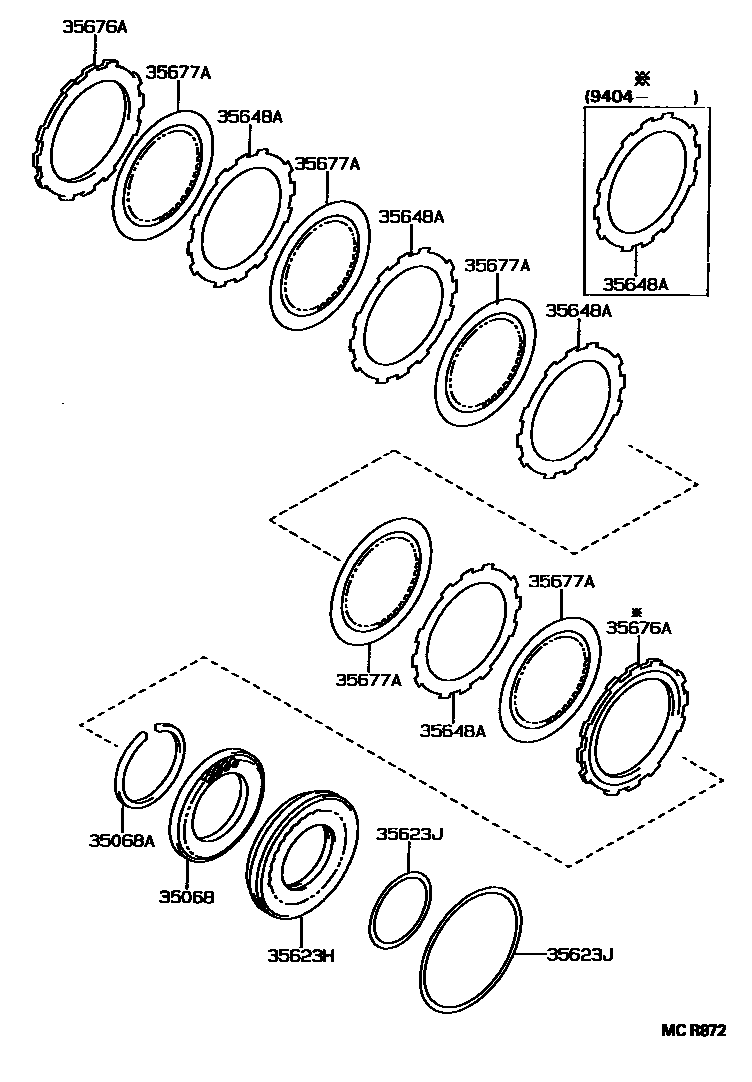

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A131L 0002 1A245E

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-12010iAE102..JPP..4FC..N199505

main35068-20010iAE101..JPP..3FC199612

main35068-32010iAE101..JPP..3FC199206-199612

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iAE10#..JPP..ATM199206-199505

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12030iAE102..JPP..4FC199206-199505

main35623-12050iAE101..JPP..3FC..USA199308-199608

main35623-20010iAE101..JPP..3FC..USA199206-199308

main35623-32010iAE101..JPP..3FC..CND199206-199404

main35623-32050iAE101..JPP..3FC..CND199404

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iAE10#..JPP..ATM199206-199505

INNER

main90301-99022iAE10#..JPP..ATM..(D,N)199505

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-12020×6iAE102..JPP..4FC199206-199505

main35648-32020×5iAE101..JPP..3FC..CND; AE101..JPP..3FC..USA199308-199404

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-12030iAE102..JPP..4FC199206-199505

T=3.5

main35676-32010iAE101..JPP..3FC..CND; AE101..JPP..3FC..USA199308-199404

T=3.5

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12040×6iAE101..JPP..3FC..USA199206-199311

main35677-12060×6iAE102..JPP..4FC199206-199311

main35677-20070×6iAE102..JPP..4FC..N199505

main35677-32040×6iAE101..JPP..3FC..CND199206-199404

main35677-32060×6iAE101..JPP..3FC..CND199404

7 parts on this diagram · 2 diagrams in section
