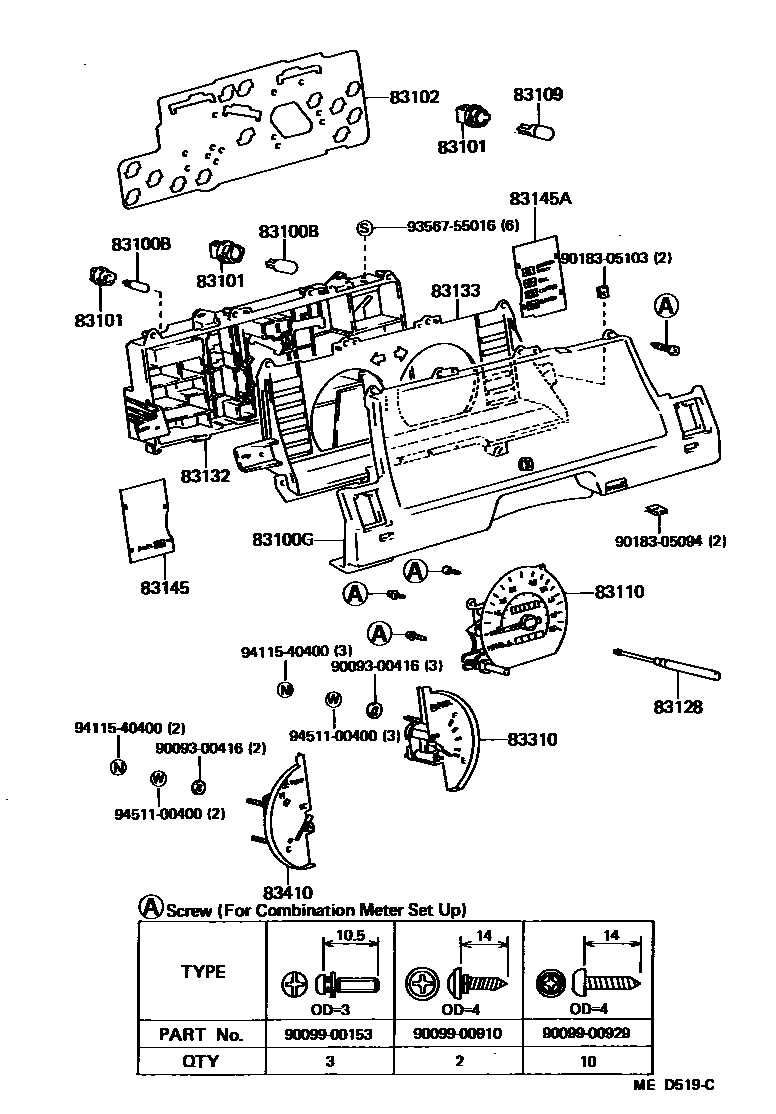

METER

0001 1 0002 1 0003 1 0004 1 0005 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×6iAE82,CE80..DX,LE,LEL198308-198707

12V 1.2W W/O SOCKET,12V 1.4KW

main99132-12034×10iAE82,CE80198308-198707

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83138-12470iAE82,CE80..DX,LE198308-198508

main83138-12490iCE80198308-198408

main83138-12530iAE82..LEL198408-198508

main83138-12730iAE82..LEL198508-198707

main83138-12810iAE82..DX,LE198508-198707

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×10iAE82,CE80198308-198707

OD=18

main83101-14040×5iAE82..LEL198408-198707

OD=11.3

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-1A630iAE82..DX,LE198308-198707

main83247-1A650iAE82..DX..USA198508-198707

W/*CRC

main83247-1A670iCE80198308-198408

main83247-1A690iCE80..DX198308-198508

main83247-1E690iAE82..LEL198408-198707

W/*CRC

main83247-1E710iAE82..LEL198408-198707

83109BULB, COMBINATION METER, NO.2

main83109-24030×3iAE82,CE80198308-198707

12V3.4W W(GREEN CAP),W/GREEN CAP

83110SPEEDOMETER ASSY

main83110-1A490iAE82..USA198308-198408

main83110-1A491iAE82..(DX,LE)..USA198408-198508

main83110-1A492iAE82..(DX,LE)..USA198508-198707

main83110-1A500iAE82..LE..USA198308-198408

W/*CRC

main83110-1A501iAE82..LE..USA198408-198508

W/*CRC

main83110-1A502iAE82..(DX,LE)..USA198508-198707

W/*CRC

main83110-1A510iAE82..CND198308-198408

main83110-1A511iAE82..CND198408-198508

main83110-1A512iAE82..CND198508-198707

main83110-1A520iAE82..LE..CND198308-198408

W/*CRC

main83110-1A521iAE82..LE..CND198408-198508

W/*CRC

main83110-1A522iAE82..LE..CND198508-198707

W/*CRC

main83110-1A590iCE80198308-198408

main83110-1A591iCE80198408-198508

main83110-1A750iAE82..LEL198408-198508

main83110-1A751iAE82..LEL198508-198707

main83110-1A760iAE82..LEL198408-198508

W/*CRC

main83110-1A761iAE82..LEL198508-198707

W/*CRC

83128KNOB, TRIP COUNTER

main83128-12690iAE82,CE80..DX,LE,STD198308-198707

main83128-12710iAE82..LEL198408-198707

83132CASE, COMBINATION METER

main83132-12530iAE82,CE80..DX,LE,STD198308-198707

main83132-12570iAE82..LEL198408-198707

83133PLATE, COMBINATION METER, NO.1

main83133-12630iAE82,CE80..DX,LE,STD198308-198508

main83133-12670iAE82..LEL198408-198508

main83133-1A110iAE82..DX,LE198508-198707

main83133-1A150iAE82..LEL198508-198707

83145LENS, METER, NO.1

main83145-12710iAE82..DX,LE198308-198508

main83145-12730iCE80198308-198408

main83145-12750iCE80..DX198308-198508

main83145-1A470iAE82..LEL198408-198508

main83145-1A630iAE82..DX,LE198508-198707

main83145-1E210iAE82..LEL198508-198707

83145ALENS, METER, NO.2

main83145-12850iAE82,CE80..DX,LE,STD198308-198508

main83145-1A450iAE82..LEL198408-198508

main83145-1A750iAE82..DX,LE198508-198707

main83145-1E150iAE82..LEL198508-198707

83310GAGE ASSY, FUEL RECEIVER

main83243-12550iAE82,CE80..DX,LE,STD198308-198707

main83243-12890iAE82..LEL198408-198508

main83243-1A070iAE82..LEL198508-198707

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-12790iAE82,CE80..DX,LE,STD198308-198707

main83244-1A390iAE82..LEL198408-198508

main83244-1A490iAE82..LEL198508-198707

9009300416

main90093-00416

9009900153

main90099-00153

9009900910

main90099-00910

9009900929

main90099-00929

9018305094

main90183-05094

9018305103

main90183-05103

9356755016

main93567-55016

9411540400

main94115-40400

9451100400

main94511-00400

22 parts on this diagram · 5 diagrams in section
