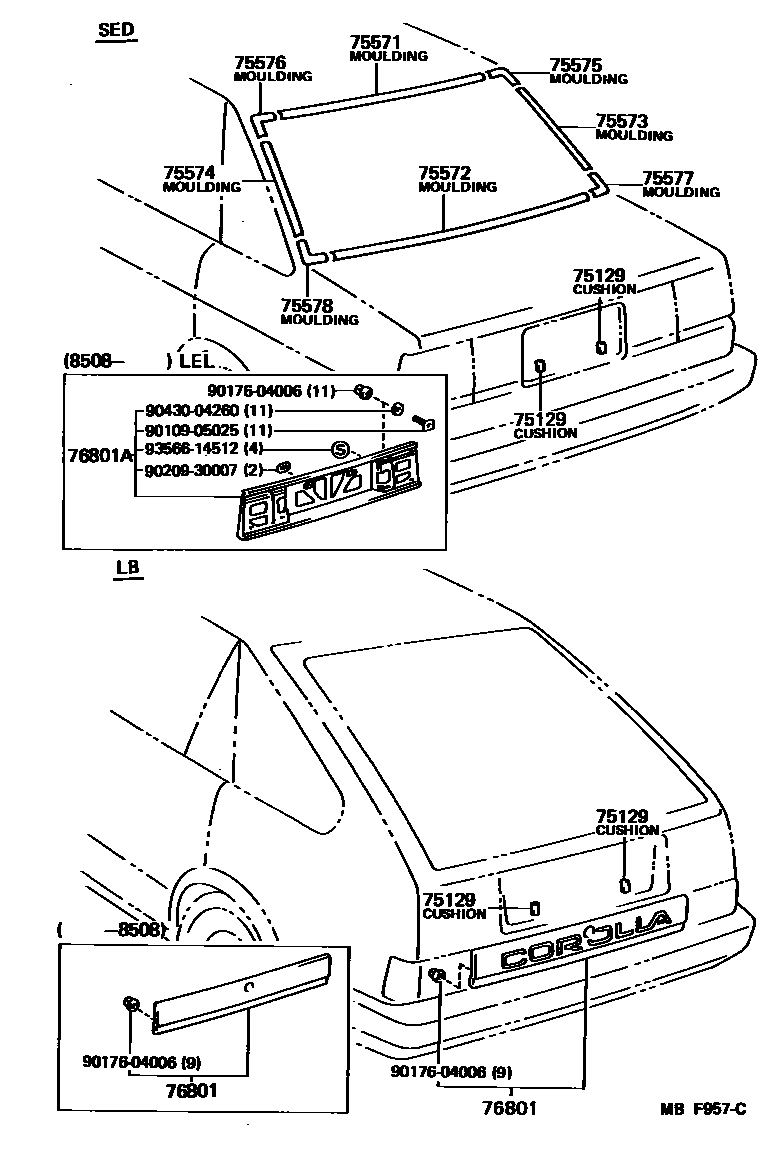

REAR MOULDING

75129CUSHION, REAR LICENSE PLATE

main75129-22010×2iAE82,CE80198308-198707

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-12240iAE82..SED..(LE,LEL)198408-198707

75572MOULDING, BACK WINDOW, LOWER

main75575-12180iAE82..SED..(LE,LEL)198408-198707

75573MOULDING, BACK WINDOW SIDE, RH

main75573-12220iAE82..SED..(LE,LEL)198408-198707

75574MOULDING, BACK WINDOW SIDE, LH

main75573-12220iAE82..SED..(LE,LEL)198408-198707

75575MOULDING, BACK WINDOW CORNER, UPPER RH

main75581-12140iAE82..SED..(LE,LEL)198408-198707

75576MOULDING, BACK WINDOW CORNER, UPPER LH

main75581-12140iAE82..SED..(LE,LEL)198408-198707

75577MOULDING, BACK WINDOW CORNER, LOWER RH

main75583-12120iAE82..SED..(LE,LEL)198408-198707

75578MOULDING, BACK WINDOW CORNER, LOWER LH

main75583-12120iAE82..SED..(LE,LEL)198408-198707

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-12170iAE82..LB198508-198707

main76801-19125iAE82,CE80..LB198308-198401

main76801-19175iAE82,CE80..LB198401-198508

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-12011iAE82..LEL198508-198707

9010905025

main90109-05025

9017604006

main90176-04006

9020930007

main90209-30007

9043004260

main90430-04260

9356614512

main93566-14512

16 parts on this diagram · 1 diagram in section
