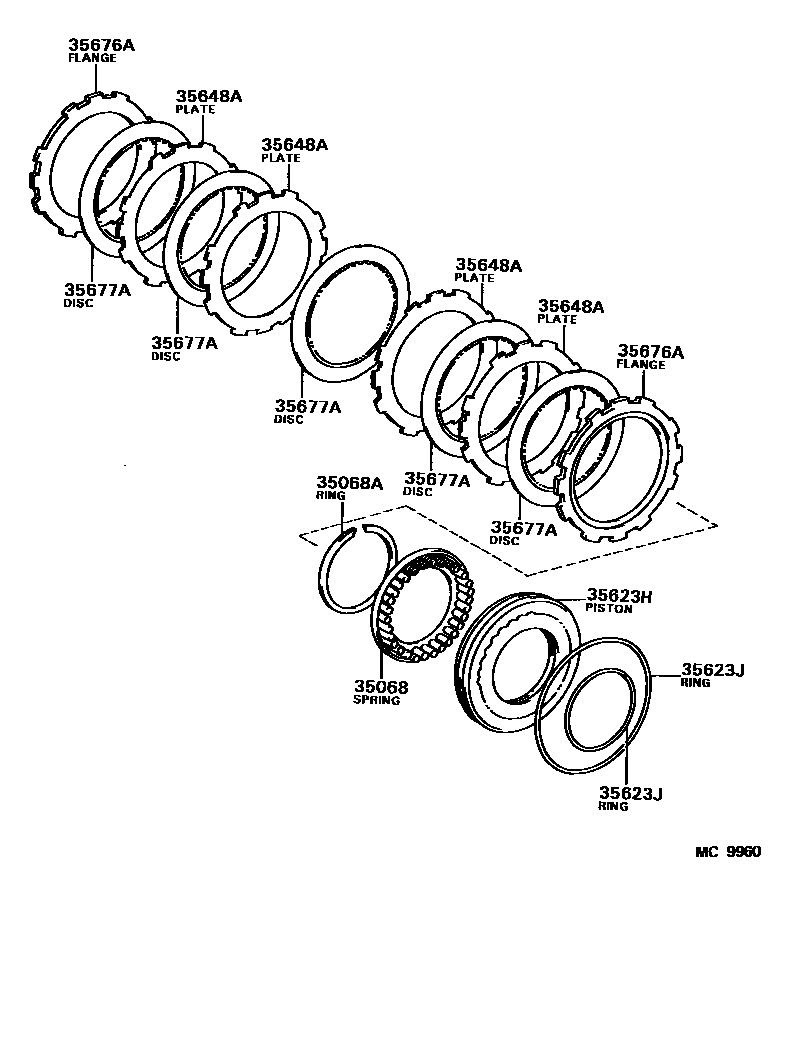

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iAE82,CE80..ATM198308-198707

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iAE82,CE80..ATM198308-198707

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12010iAE82..ATM..USA; AE82..LE..CND198608-198707

main35623-32010iAE82..3FC..CND198608-198612

main35623-32020iAE82..3FC..CND198612-198707

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iAE82,CE80..ATM198308-198707

INNER

main90301-99022iAE82,CE80..ATM198308-198707

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020×7iAE82,CE80..ATM198308-198707

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010×2iAE82,CE80..ATM198308-198707

T=3.5

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12020×5iAE82..ATM..USA; AE82..LE..CND198608-198707

AISIN WARNER

main35677-32020×4iCE80..3FC198308-198404

main35677-32040×4iCE80..3FC198404-198508

7 parts on this diagram · 1 diagram in section
