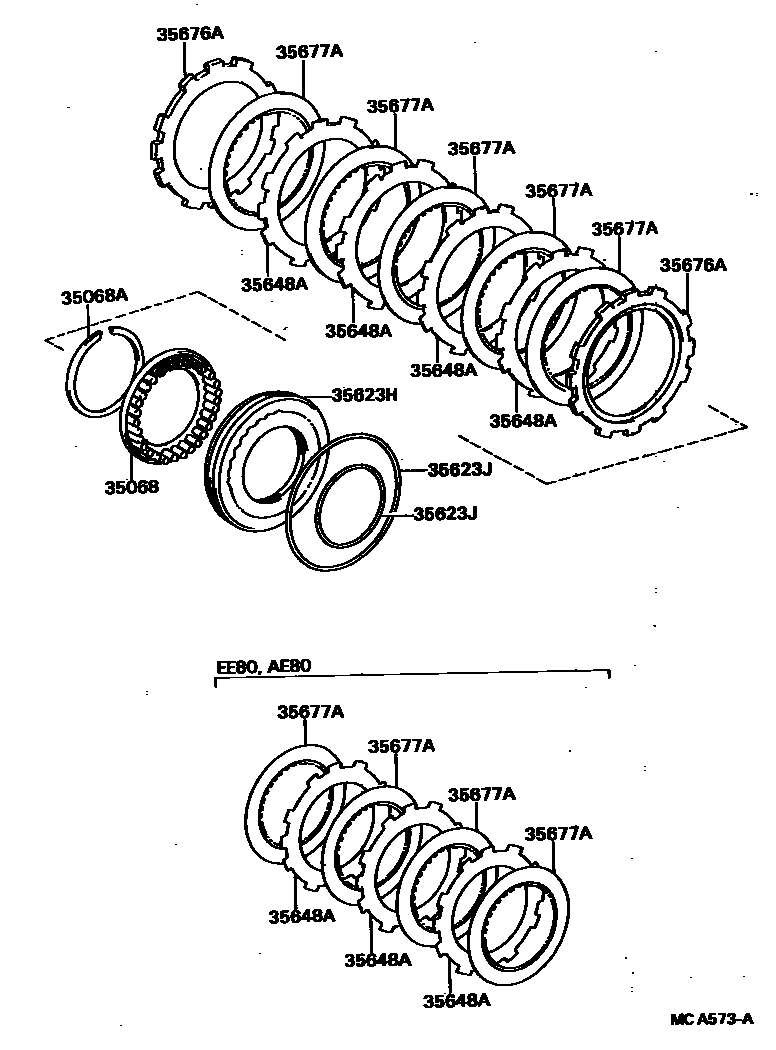

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iAE8#,EE80..ATM198305-198807

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iAE8#,EE80..ATM198305-198807

35623HPISTON, 1ST & REVERSE BRAKE

main35623-10010iEE80..3FC198410-198707

main35623-12010iAE82..ATM198305-198807

main35623-12020iAE80..3FC198305-198807

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iAE8#,EE80..ATM198305-198807

INNER

main90301-99022iAE8#,EE80..ATM198305-198807

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020×4iAE8#,EE80..ATM198305-198807

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010×2iAE8#,EE80..ATM198305-198807

T=3.5

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12020×5iAE8#..ATM198305-198708

main35677-12030×5iAE8#..ATM198708-198807

main35677-32040×4iEE80..3FC198410-198707

7 parts on this diagram · 1 diagram in section
