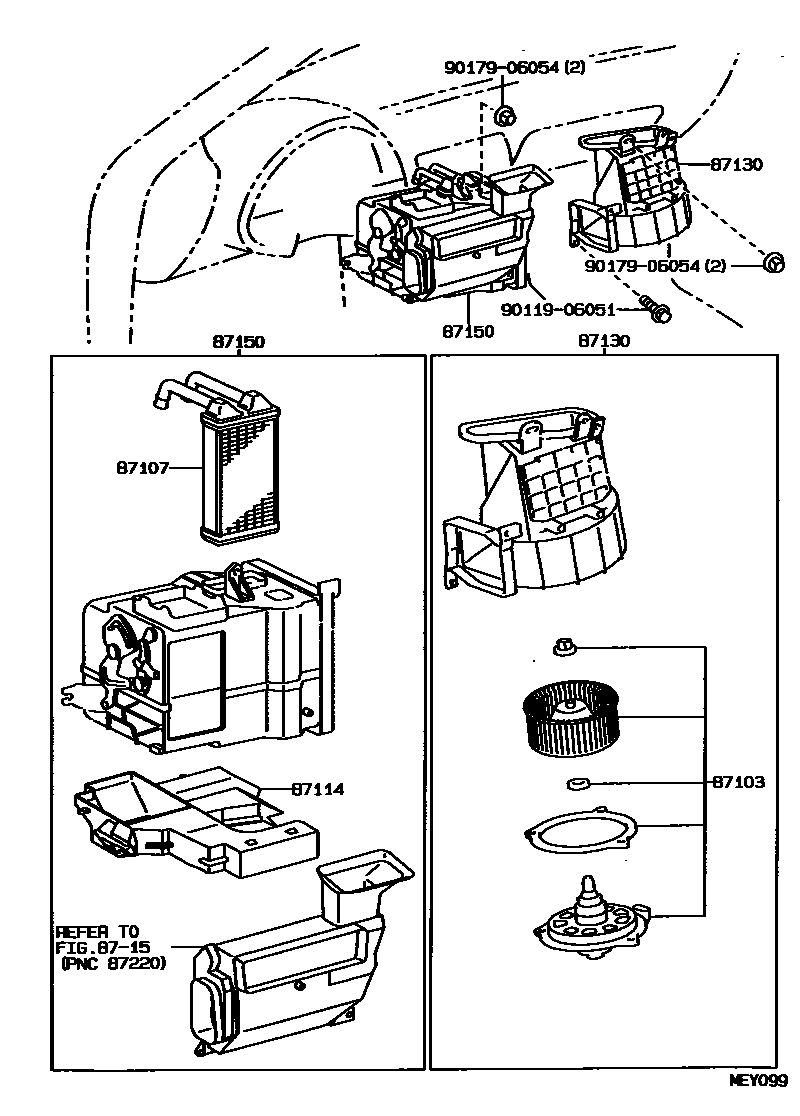

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-16040iEL54199508

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-16180iEL54..CND; EL54..USA199508-199608

COLD SPEC,HEATER RADIATOR FIN PITCH=1.8

main87107-16250iEL54..USA199508-199608

main87107-42050iEL54..USA199608

main87107-42060iEL54..CND; EL54..USA199608

COLD SPEC,HEATER RADIATOR FIN PITCH=1.8

87114COVER, HEATER

main87114-16070iEL54199508

87130BLOWER ASSY, HEATER, FRONT

main87130-16190iEL54199508

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87150RADIATOR ASSY, HEATER

main87150-16560iEL54..USA199508-199608

main87150-16561iEL54..USA199608

main87150-16590iEL54..CND; EL54..USA199508-199608

COLD SPEC,HEATER RADIATOR FIN PITCH=1.8

main87150-16591iEL54..CND; EL54..USA199608

COLD SPEC,HEATER RADIATOR FIN PITCH=1.8

9011906051

main90119-06051

9017906054

main90179-06054

8 parts on this diagram · 1 diagram in section
