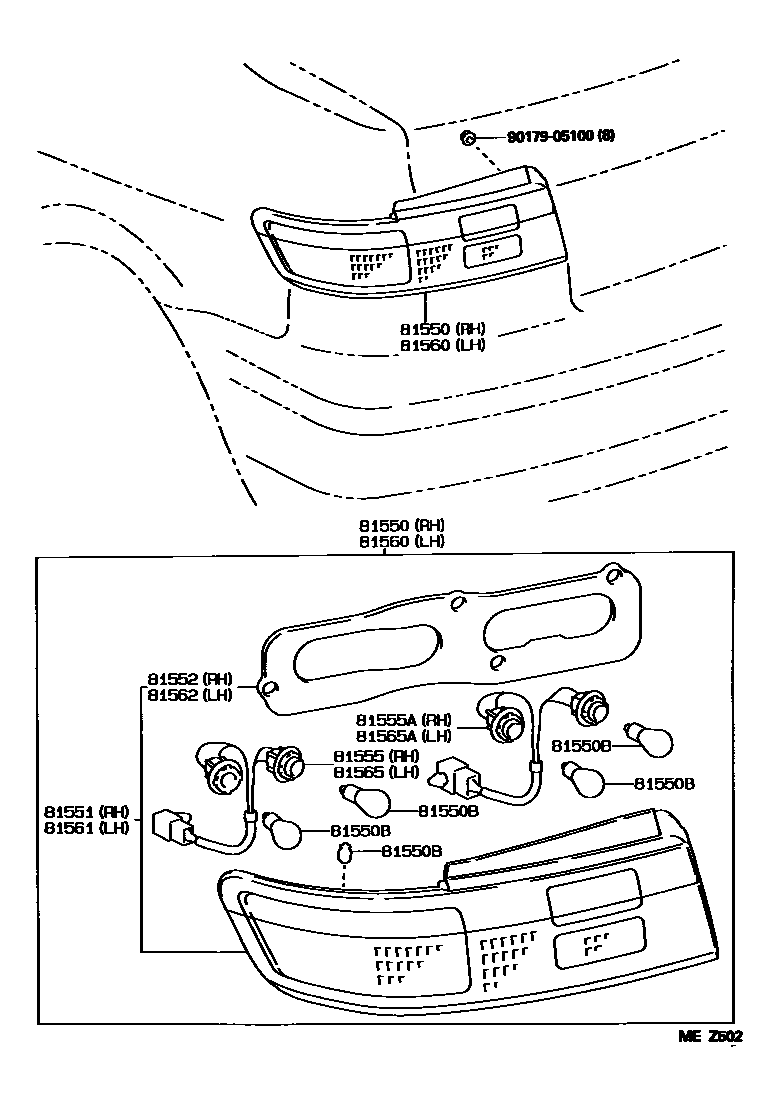

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-16530iEL54199508

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11020iEL54199508

12V 3.8W

main90981-12010iEL54199712-199802

12V 5W

main99132-11270iEL54199508

12V 27W

main99132-21270iEL54199508

12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-16530iEL54199508

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-16520iEL54199508

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-16530iEL54199508

81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81556-16520iEL54199508-199608

main81559-16530iEL54199608

81560LAMP ASSY, REAR COMBINATION, LH

main81560-16570iEL54199508

81561LENS, REAR COMBINATION LAMP, LH

main81561-16570iEL54199508

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-16560iEL54199508

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-16530iEL54199508

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81556-16520iEL54199508-199608

main81559-16530iEL54199608

9017905100

main90179-05100

12 parts on this diagram · 1 diagram in section
