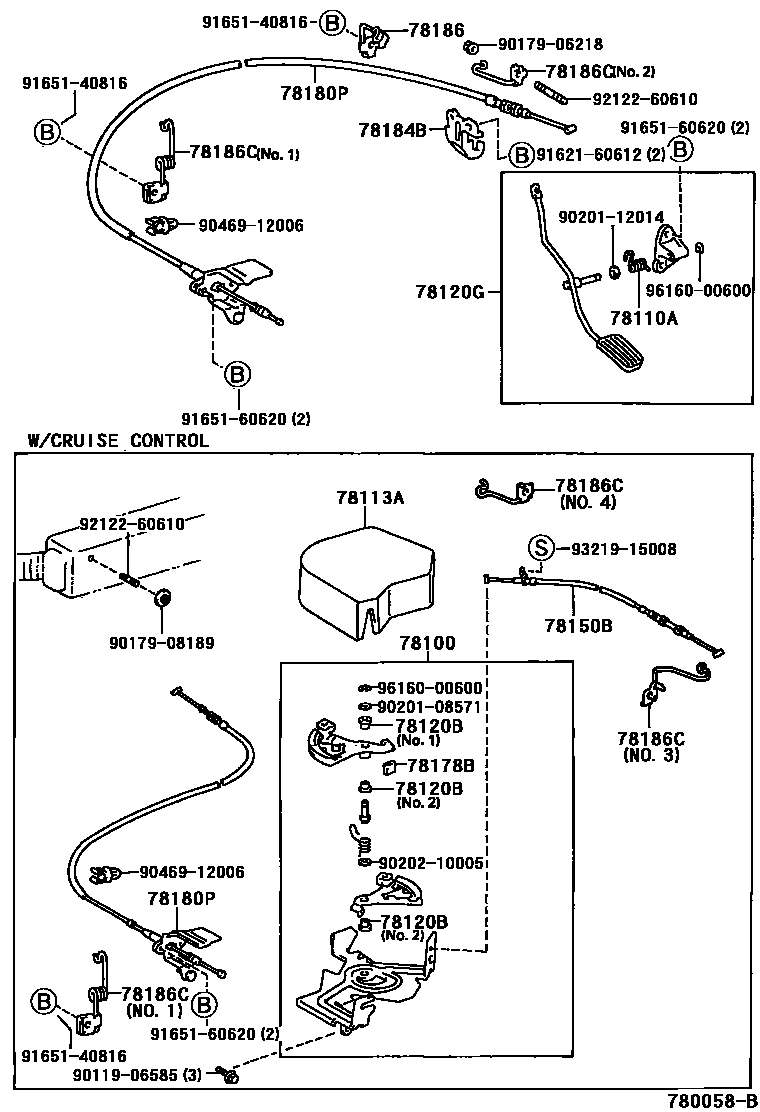

ACCELERATOR LINK
78100LINK ASSY, ACCELERATOR
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78113ACOVER, AUTO DRIVE ACCELERATOR LINK
78120BBUSH (FOR ACCELERATOR LINK ROD)
NO.1
NO.2
78120GROD ASSY, ACCELERATOR PEDAL
78178BDAMPER, ACCEL CONTROL NO.4 ROD BRACKET
78180PCABLE ASSY, ACCELERATOR CONTROL
W(CRUISE CONTOROL)
W(CRUISE CONTOROL)
78184BBRACKET, ACCELERATOR CONTROL CABLE
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186CSUPPORT, ACCELERATOR CONTROL CABLE NO.3
NO.1
NO.2
NO.3
NO.4
9011906585
main90119-06585
9017906218
main90179-06218
9017908189
main90179-08189
9020108571
main90201-08571
9020112014
main90201-12014
9020210005
main90202-10005
9046912006
main90469-12006
9162160612
main91621-60612
9165140816
main91651-40816
9165160620
main91651-60620
9212260610
main92122-60610
9321915008
main93219-15008
9616000600
main96160-00600
24 parts on this diagram · 1 diagram in section
