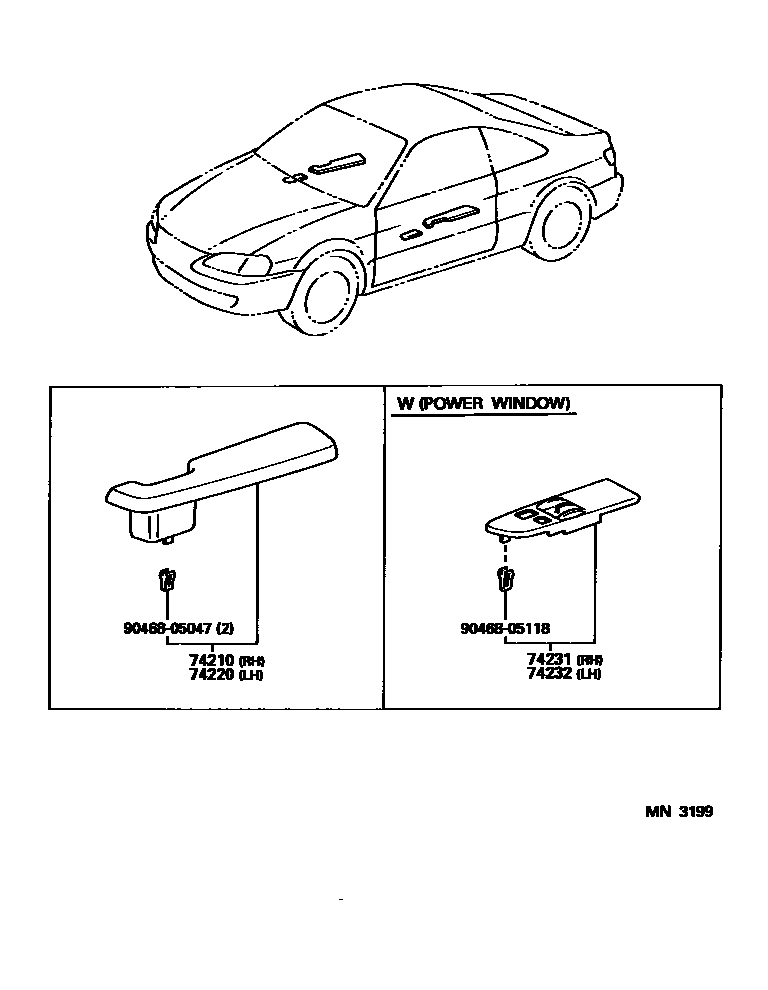

ARMREST & VISOR

0001 1ARMREST 0002 1SUNVISER

74210ARMREST ASSY, FRONT, RH

main74210-16090-B1iEL54199508-199907

SHADOW GRAY,TRIM1#

74220ARMREST ASSY, FRONT, LH

main74220-16070-B1iEL54199508-199907

SHADOW GRAY,TRIM1#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-10032-B0iEL54..CP..USA199712

PUERTORICO SPEC,SHADOW GRAY,TRIM1#

main74231-10032-C0iEL54..CP..USA199508-199712

PUERTORICO SPEC,BLACK,TRIM1#

main74231-16040-B1iEL54199802

SHADOW GRAY,TRIM1#

main74231-16040-C0iEL54..CVT199712-199802

BLACK,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-10030-B0iEL54199802

SHADOW GRAY,TRIM1#

main74232-10030-C0iEL54..CVT199712-199802

BLACK,TRIM1#

9046805047

main90468-05047

9046805118

main90468-05118

6 parts on this diagram · 2 diagrams in section
