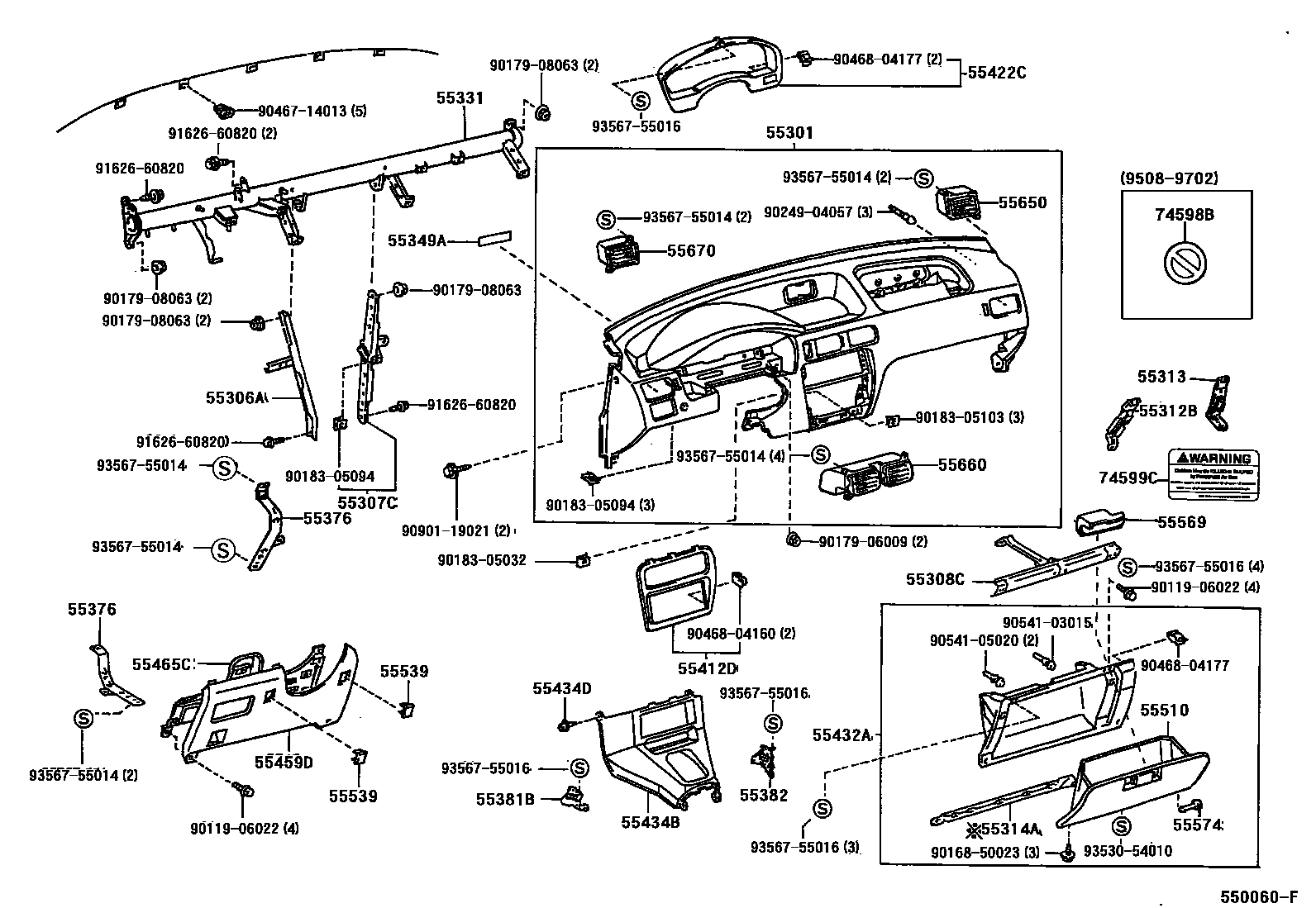

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-16091-B3iEL54199608-199712

SHADOW GRAY,TRIM1#

main55301-16130-B0iEL54199512-199608

SHADOW GRAY

main55301-16170-B1iEL54199802

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#

main55301-16180-B1iEL54..CND199712

SHADOW GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-16100iEL54199508-199802

main55306-16120iEL54..CP199712-199805

main55306-16130iEL54199805

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-16100iEL54199508

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-16070iEL54..CP199508

main55308-16090iEL54..CVT199609

55312BPANEL, INSTRUMENT, LOWER RH

main55312-16030iEL54..USA199508

55313PANEL, INSTRUMENT, LOWER LH

main55313-16010iEL54..USA199508

55314APANEL, INSTRUMENT, LOWER CENTER

main55314-16010iEL54..USA199608

main55314-16020iEL54..CND199508

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-16180iEL54199508-199608

main55330-16181iEL54199608-199802

main55330-16230iEL54..CP199712-199802

55349ACUSHION, INSTRUMENT PANEL

main55349-16040iEL54199608

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-16050iEL54199508

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-16040iEL54199508

55382BRACKET, FINISH PANEL MOUNTING, NO.2

main55382-16040iEL54199508

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-16110iEL54199508-199802

main55412-16130-B1iEL54..CP199712-199802

SHADOW GRAY,TRIM1#

55422CPANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER

main55422-16070iEL54199508-199802

main55422-16110-B0iEL54..CP199712-199802

W(TILT STEERING),SHADOW GRAY,TRIM1#

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55045-16060-B1iEL54..CP..USA199508-199907

SHADOW GRAY,TRIM1#

main55045-16070-B1iEL54..CND199508-199907

SHADOW GRAY,TRIM1#

main55045-16100-B0iEL54..CVT199609-199903

SHADOW GRAY,TRIM1#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-16060-B1iEL54199508

SHADOW GRAY,TRIM1#

55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

main90467-07071-B4iEL54199508

SHADOW GRAY,TRIM1#

55459DCOVER, INSTRUMENT, LOWER LH

main55459-16040-B1iEL54199508-199802

SHADOW GRAY,TRIM1#

main55459-16060-B1iEL54..CP199712-199802

SHADOW GRAY,TRIM1#

55465CINSERT, INSTRUMENT PANEL LOWER PAD, LH

main55465-16030iEL54..USA199508

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-16120-B1iEL54..CP..USA199508

SHADOW GRAY,TRIM1#

main55550-16130-B1iEL54..CND199508

SHADOW GRAY,TRIM1#

main55550-16160-B0iEL54..CVT199609

SHADOW GRAY,TRIM1#

55539COVER, SPARE SWITCH HOLE

main55539-12130-B1iEL54199508

SHADOW GRAY,TRIM1#

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-16020iEL54..CVT199609

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010iEL54199508

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-16080-B1iEL54199508-199509

SHADOW GRAY,TRIM1#

main55650-16080-B2iEL54199509-199802

GRAY,TRIM1#

main55650-16100-B1iEL54..CP199712-199907

SHADOW GRAY,TRIM1#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-16050-B1iEL54199508-199509

SHADOW GRAY,TRIM1#

main55660-16050-B2iEL54199509-199802

GRAY,TRIM1#

main55660-16070-B1iEL54199802

SHADOW GRAY,TRIM1#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-16050-B1iEL54199508-199509

SHADOW GRAY,TRIM1#

main55670-16050-B2iEL54199509-199712

GRAY,TRIM1#

main55670-16070-B1iEL54..CP199712-199907

SHADOW GRAY,TRIM1#

74599CLABEL, DRIVER & PASSENGER AIRBAG INFORMATION

main74599-50010iEL54..USA199702

9011906022

main90119-06022

9016850023

main90168-50023

9017906009

main90179-06009

9017908063

main90179-08063

9018305032

main90183-05032

9018305094

main90183-05094

9018305103

main90183-05103

9024904057

main90249-04057

9046714013

main90467-14013

9046804160

main90468-04160

9046804177

main90468-04177

9054103015

main90541-03015

9054105020

main90541-05020

9090119021

main90901-19021

9162660820

main91626-60820

9353054010

main93530-54010

9356755014

main93567-55014

9356755016

main93567-55016

45 parts on this diagram · 2 diagrams in section
