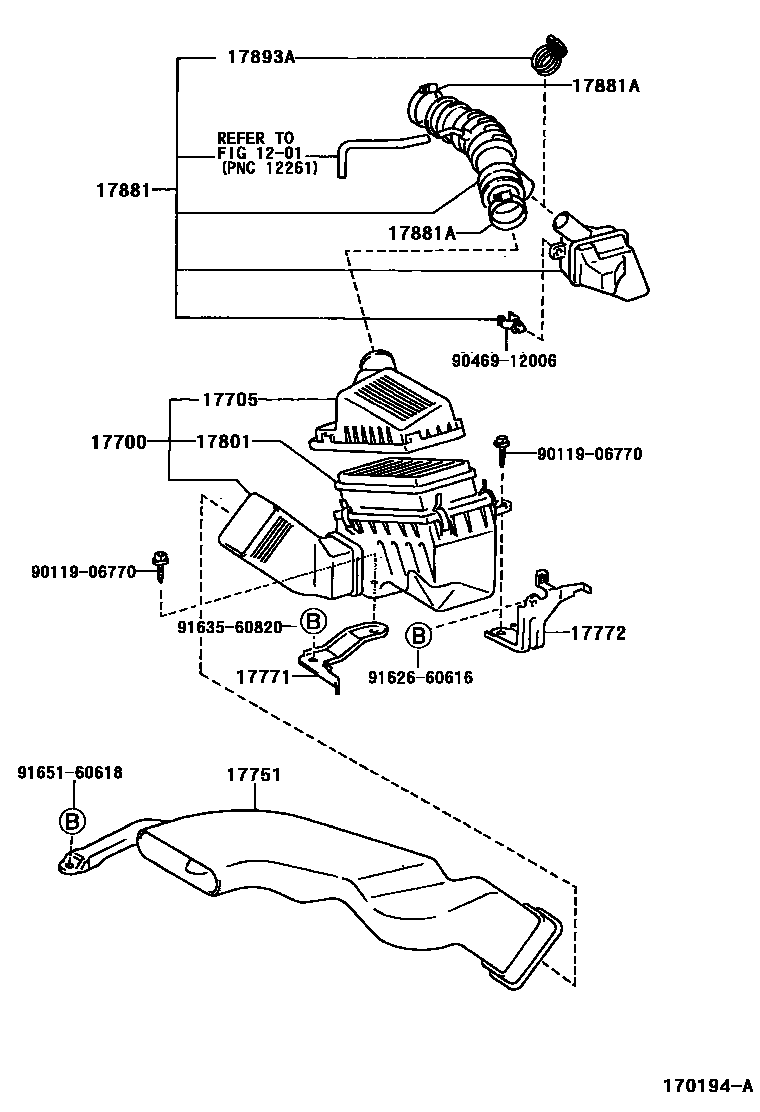

AIR CLEANER

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-11870i5EFE..EL54199508-199608

main17700-11871i5EFE..EL54199608

17705CAP SUB-ASSY, AIR CLEANER

main17705-11541i5EFE..EL54199508-199608

main17705-11542i5EFE..EL54199608

17751INLET, AIR CLEANER, NO.1

main17751-11120i5EFE..EL54199508

17771BRACKET, AIR CLEANER INLET DUCT

main17771-11140i5EFE..EL54199508

17772BRACKET, INTAKE AIR CONNECTOR, NO.2

main17772-11040i5EFE..EL54199508

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-11080i5EFE..EL54199508

17881HOSE, AIR CLEANER, NO.1

main17880-11240i5EFE..EL54199508-199608

main17880-11241i5EFE..EL54199608

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690×2i5EFE..EL54199508

17893ACLAMP, HOSE

main96111-10400i5EFE..EL54199508

9011906770

main90119-06770

9046912006

main90469-12006

9162660616

main91626-60616

9163560820

main91635-60820

9165160618

main91651-60618

15 parts on this diagram · 1 diagram in section
