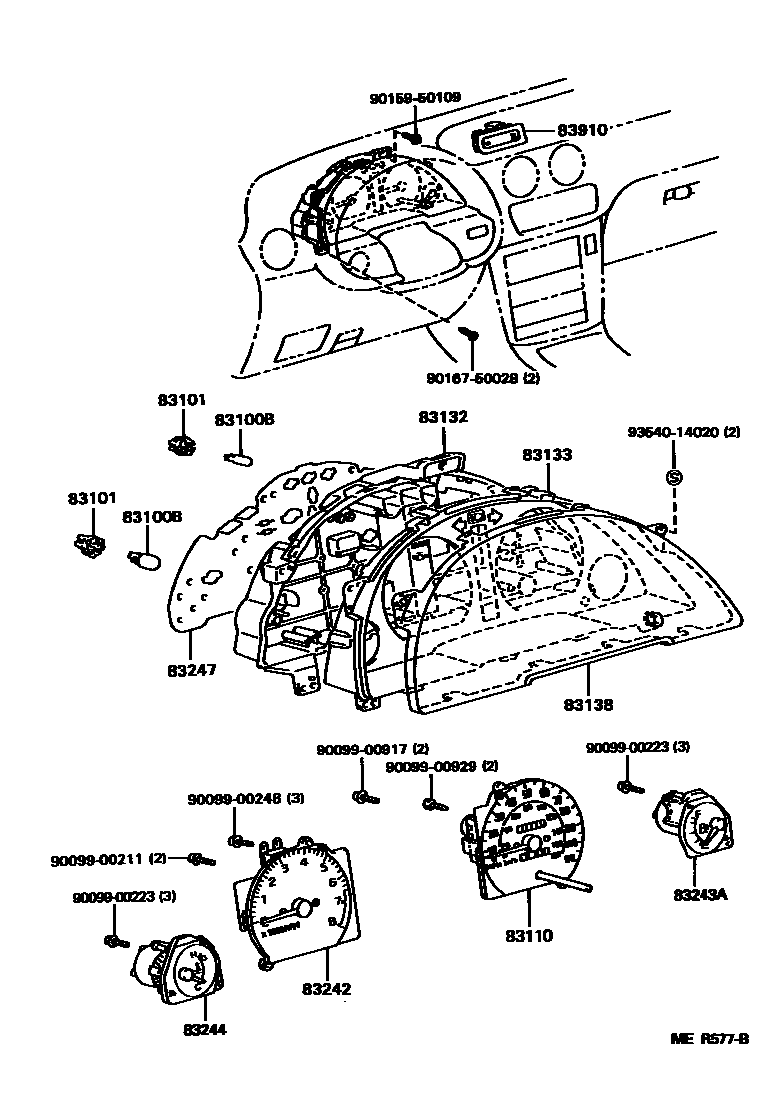

METER
83100BBULB, COMBINATION METER, NO.1
12V 1.4W,W(SOCKET)
12V3.4W W(GREEN CAP)
14V 2.0W,W/O SOCKET
14V 3.0W
12V 1.2W W/O SOCKET
83101SOCKET SUB-ASSY, COMBINATION METER BULB
12V 3.4W,AMBER CAP
12V 1.4W; 12V 1.4W OR 14V 2.0W
12V 3.0W; 14V 3.0W
83110SPEEDOMETER ASSY
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83138GLASS, SPEEDOMETER
83242TACHOMETER ASSY, ENGINE
PUERTORICO SPEC
PUERTORICO SPEC
PUERTORICO SPEC
PUERTORICO SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83247PLATE, METER CIRCUIT
PUERTORICO SPEC
PUERTORICO SPEC
PUERTORICO SPEC
PUERTORICO SPEC
83910CLOCK ASSY
BLACK,TRIM2#
GRAISH BLUE,TRIM8#
BLACK,TRIM2#
EISEN BLUE,TRIM8#
9009900211
main90099-00211
9009900223
main90099-00223
9009900248
main90099-00248
9009900917
main90099-00917
9009900929
main90099-00929
9015950109
main90159-50109
9016750028
main90167-50028
9354014020
main93540-14020
19 parts on this diagram · 2 diagrams in section
