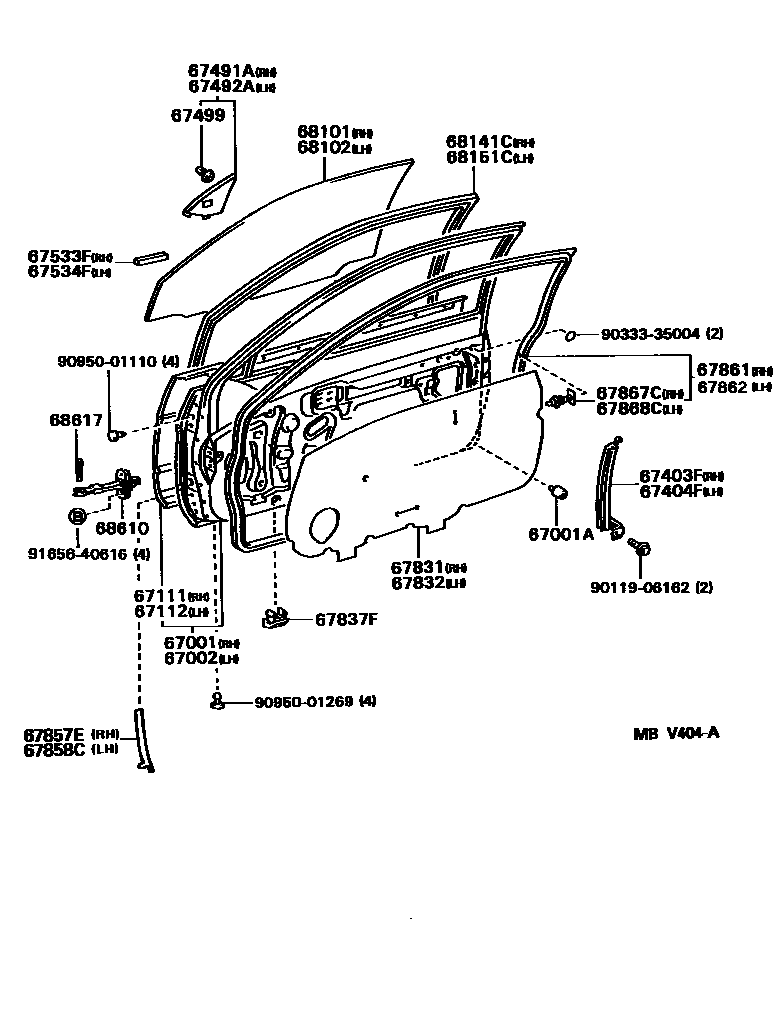

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-16460iEL44..USA199212-199508

main67001-16540iEL44..CND199104-199205

main67001-16541iEL44..CND199205-199208

main67001-16542iEL44..CND199208-199212

main67001-16550iEL44..CND199212-199508

main67001-16580iEL44..USA199104-199205

main67001-16581iEL44..USA199205-199208

main67001-16582iEL44..USA199208-199212

67001ACUSHION, FRONT DOOR PANEL

main90541-09031×2iEL44199104-199508

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-16480iEL44..CND199104-199205

main67002-16481iEL44..CND199205-199208

main67002-16482iEL44199208-199212

main67002-16490iEL44199212-199508

main67002-16520iEL44..USA199104-199205

main67002-16521iEL44..USA199205-199208

67111PANEL, FRONT DOOR, OUTER RH

main67111-16280iEL44199104-199508

67112PANEL, FRONT DOOR, OUTER LH

main67112-16240iEL44199104-199508

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-16090iEL44199104-199110

main67403-16091iEL44199110-199204

main67403-16092iEL44199204-199508

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-16090iEL44199104-199110

main67404-16091iEL44199110-199204

main67404-16092iEL44199204-199508

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-16190iEL44199104-199508

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-16190iEL44199104-199508

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-32010×2iEL44199104-199508

67533FPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main67533-16050iEL44199104-199508

67534FPAD, FRONT DOOR LOWER FRAME GARNISH, LH

main67533-16050iEL44199104-199508

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-16310iEL44199104-199508

W/O(RADIO)

main67831-16320iEL44199104-199508

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-16180iEL44199104-199508

W/O(RADIO)

main67832-16190iEL44199104-199508

67837FSEAL, DOOR DUST PROOF

main67837-16030×4iEL44..CND199104-199508

67857EPROTECTOR, REAR DOOR PANEL, RH

main67857-16010iEL44199104-199508

67858CPROTECTOR, REAR DOOR PANEL, LH

main67858-16010iEL44199104-199508

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-16280iEL44199104-199508

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-16280iEL44199104-199508

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×20iEL44199411-199508

main67868-12050×20iEL44199104-199411

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×20iEL44199411-199508

main67868-12050×20iEL44199104-199411

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-16090iEL44..CND199104-199301

*TEM,T=3.5,CLEAR

main68110-16100iEL44..CND199208-199210

*TT,T=3.5,BLUE,CHILE SPEC

main68110-16101iEL44199409-199508

*TT,T=3.5,BLUE

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-16090iEL44..CND199104-199301

*TEM,T=3.5,CLEAR

main68120-16100iEL44..CND199208-199210

*TT,T=3.5,BLUE,CHILE SPEC

main68120-16101iEL44199409-199508

*TT,T=3.5,BLUE

68141CRUN, FRONT DOOR GLASS, RH

main68141-16200iEL44199104-199508

68151CRUN, FRONT DOOR GLASS, LH

main68151-16030iEL44199104-199508

68610CHECK ASSY, FRONT DOOR

main68610-16060×2iEL44199104-199208

main68610-16080×2iEL44199208-199508

68617PIN, FRONT DOOR CHECK

main68617-12030×2iEL44199104-199410

main68617-20011×2iEL44199410-199508

9011906162

main90119-06162

9033335004

main90333-35004

9095001110

main90950-01110

9095001269

main90950-01269

9165640616

main91656-40616

32 parts on this diagram · 2 diagrams in section
